NT050-R001DW

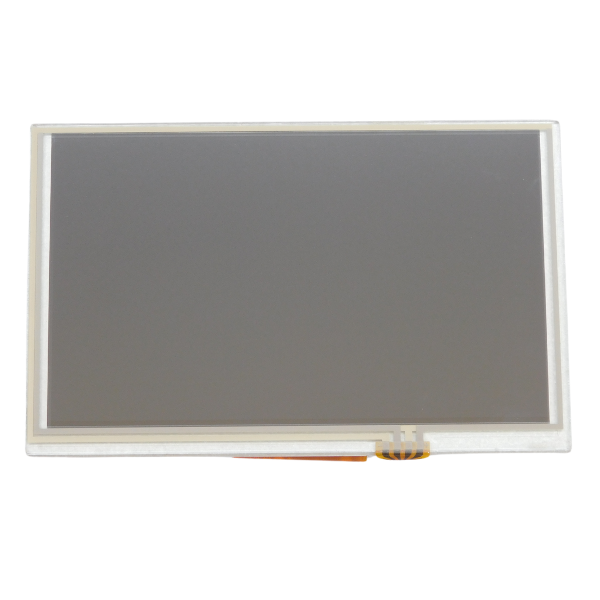

Picture of NT050-R001DW

Picture of NT050-R001DW

Picture of NT050-R001DW

TFT 5" 800x480 LCD Panel, Interface RGB, High Brightness 600cd/m², Wide view angle (IPS), Resistive touch panel

General Specifications

Color	16.7M
LCD Type	IPS-TFT-LCD
Viewing Angle	Wide viewing angle, 80/80/80/80(L/R/U/D)
Display Area(A.A)	108.0(W)*64.8(H)
Driver IC	ST7262-G4-1-H
Luminance	600cd/m²
LED Numbers	20 LEDS
Interface	RGB_24bit 40PIN_0.5mm

Electrical Characteristics

Digital Power Voltage	3.3V(Typ.)
Forward Voltage	12V(Typ.)
Forward Current	100mA
LED Life-Time	30000 Hr
Uniformity(with L/G)	80%

Optical Characteristics

Contrast Ratio	1000:1
Response Time	35ms
Color Gamut	55%

Touch Parameters

Feature	Description
Type	RTP (Resistive touch panel)
Structure	ITO Film + ITO Glass + FPC
Outline Sieze (mm)	120.20(L)74.80(W)1.55(T)
Active Area (mm)	110.20(L)*63.80(W)
Surface Hardness	3H
Light Transmittance	78%±3%
Operating Temperature	-20~70°C
Storage Temperature	-30~80°C

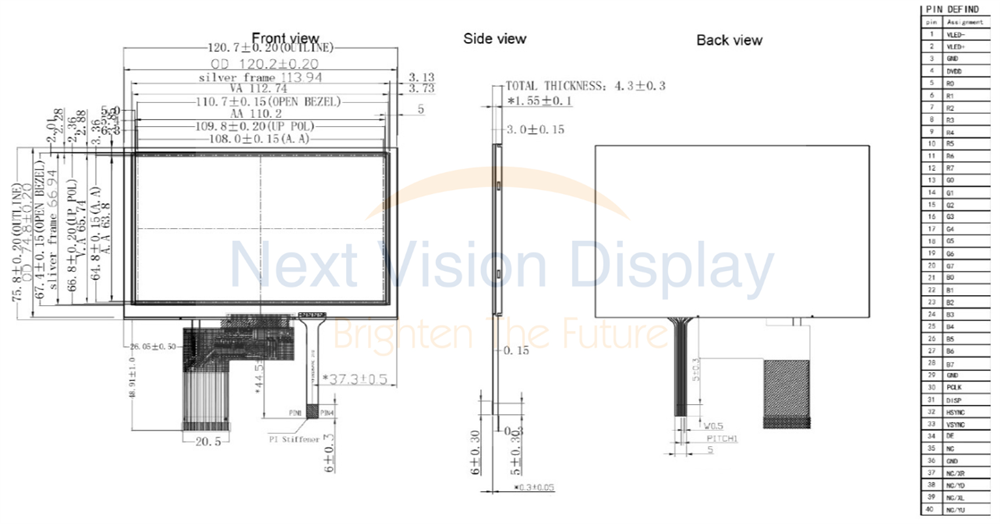

DRAWING

SKU: NT050-R001DW

Brand: Next Vision Display

Available: Yes

Be the first to review this product

Accessory Kit

Display Connector
Touch-Panel Connector

Price Breaks

Quantity

1+

5+

10+

Price

€35.40

€30.60

€27.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€35.40 excl tax

Overview
Specifications
Download
Contact Us

General Specifications

Color	16.7M
LCD Type	IPS-TFT-LCD
Viewing Angle	Wide viewing angle, 80/80/80/80(L/R/U/D)
Display Area(A.A)	108.0(W)*64.8(H)
Driver IC	ST7262-G4-1-H
Luminance	600cd/m²
LED Numbers	20 LEDS
Interface	RGB_24bit 40PIN_0.5mm

Electrical Characteristics

Digital Power Voltage	3.3V(Typ.)
Forward Voltage	12V(Typ.)
Forward Current	100mA
LED Life-Time	30000 Hr
Uniformity(with L/G)	80%

Optical Characteristics

Contrast Ratio	1000:1
Response Time	35ms
Color Gamut	55%

Touch Parameters

Feature	Description
Type	RTP (Resistive touch panel)
Structure	ITO Film + ITO Glass + FPC
Outline Sieze (mm)	120.20(L)74.80(W)1.55(T)
Active Area (mm)	110.20(L)*63.80(W)
Surface Hardness	3H
Light Transmittance	78%±3%
Operating Temperature	-20~70°C
Storage Temperature	-30~80°C

DRAWING

Products specifications

Brand	Next Vision Display
Size	5"
Resolution	800x480
Active Area (mm)	108.00x64.80
Color	Full Color
Display Interface	RGB
Display IC	No
View Angle	IPS
Sunlight Readable	High 601~1200cd/m²
Frame	No
Touch Panel	Resistive
O. Temperature (°C)	-10~60
Display Connection	FPC for ZIF Connector
Pin Nr.	40
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred

Download

Log in or Register to downloads PDF.

Your name

Your email

Enquiry

Products specifications

Brand	Next Vision Display
Size	5"
Resolution	800x480
Active Area (mm)	108.00x64.80
Color	Full Color
Display Interface	RGB
Display IC	No
View Angle	IPS
Sunlight Readable	High 601~1200cd/m²
Frame	No
Touch Panel	Resistive
O. Temperature (°C)	-10~60
Display Connection	FPC for ZIF Connector
Pin Nr.	40
Pin Pitch	0.5mm
Preferred - Not Preferred	Preferred
