NT057-R002JD

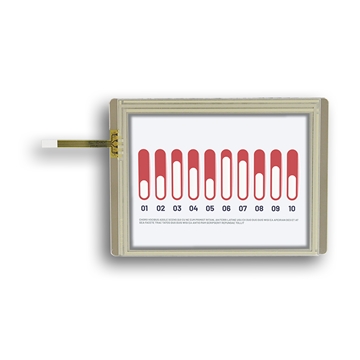

Picture of NT057-R002JD Picture of NT057-R002JD
TFT 5.7" 640x480 LCD Panel, Interface RGB, 700cd/m², Resistive Touch Panel, Frame (Replacement Evervision P/N VGG644803-6UFLWQ)

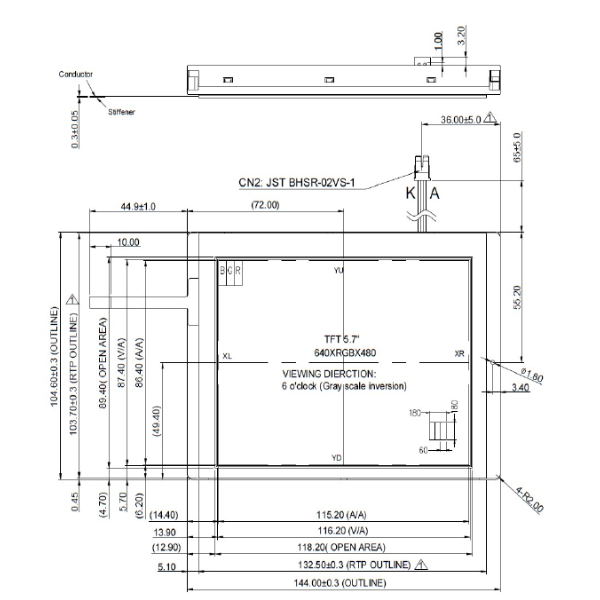

DRAWING





SPECIFICATIONS



General Specifications

Item

Dimension

Unit

Size

5.7

inch

Dot Matrix

640 x RGBx480(TFT)

dots

Module dimension

144.0(W) x 104.6(H) x 13.9(D)

mm

Active area

115.2 x 86.40

mm

LCD type

TFT, Normally White, Transmissive

TFT Interface

18-bit RGB

View Direction

12 o’clock

Gray Scale Inversion Direction

6 o’clock

With /Without TP

With RTP



Absolute Maximum Ratings

Item

Min

Typ

Max

Unit

Operating Temperature

-20

-

+70

°C

Storage Temperature

-30

-

+80

°C



Electrical Characteristics

Operating conditions

Item

Symbol

Condition

Min

Max

Unit

Supply Voltage

VCC

-

-0.3

4.3

V

<

SKU: NT057-R002JD
Brand: Next Vision Display
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€122.70
€112.50
€108.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€122.70 excl tax



DRAWING





SPECIFICATIONS



General Specifications

Item

Dimension

Unit

Size

5.7

inch

Dot Matrix

640 x RGBx480(TFT)

dots

Module dimension

144.0(W) x 104.6(H) x 13.9(D)

mm

Active area

115.2 x 86.40

mm

LCD type

TFT, Normally White, Transmissive

TFT Interface

18-bit RGB

View Direction

12 o’clock

Gray Scale Inversion Direction

6 o’clock

With /Without TP

With RTP



Absolute Maximum Ratings

Item

Min

Typ

Max

Unit

Operating Temperature

-20

-

+70

°C

Storage Temperature

-30

-

+80

°C



Electrical Characteristics

Operating conditions

Item

Symbol

Condition

Min

Max

Unit

Supply Voltage

VCC

-

-0.3

4.3

V

<

Products specifications
Brand Next Vision Display
Size 5.7"
Resolution 640x480
Active Area (mm) 115.20x86.40
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 33
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Next Vision Display
Size 5.7"
Resolution 640x480
Active Area (mm) 115.20x86.40
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame Yes
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 33
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
