NT121-C001PT

Picture of NT121-C001PT Picture of NT121-C001PT
TFT 12.1" 1280x800 LCD Panel, Interface LVDS, High Brightness 850cd/m², Wide View Angle (IPS), Capacitive touch panel I2C Interface (GG, ILI2132 IC)

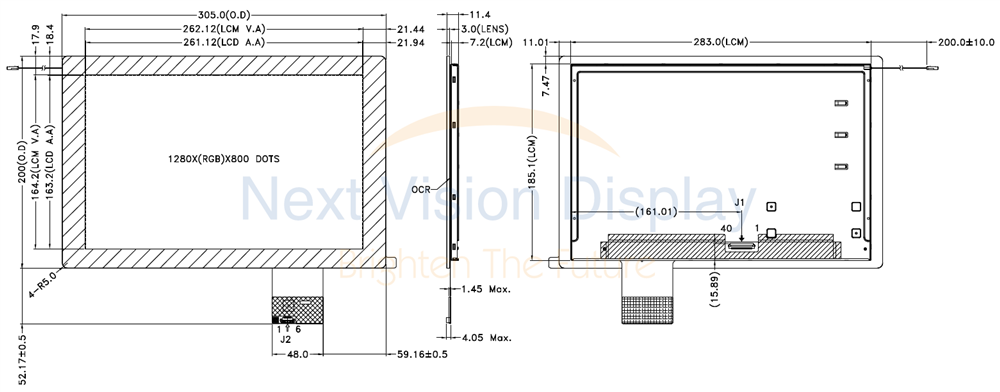

DRAWING



SPECIFICATIONS

LCM Interface

PinSymbolFunction
1 NC No Connection
2 VDD Power Supply
3 VDD Power Supply
4 VDD Power Supply
5 NC No Connection
6 GND Ground
7 GND Ground
8 RIN0- -LVDS Differential Data Input
9 RIN0+ +LVDS Differential Data Input
10 GND Ground
11 RIN1- -LVDS Differential Data Input
12 RIN1+ +LVDS Differential Data Input
13 GND Ground
14 RIN3- -LVDS Differential Data Input
15 RIN3+ +LVDS Differential Data Input
16 GND Ground
17 LVDS_CLK- -LVDS Differential Clock Input
18 LVDA_CLK+ +LVDS Differential Clock Input
19 GND Ground
20 RIN3+ -LVDS Differential Data Input
21 RIN3+ +LVDS Differential Data Input
22 GND Ground
23 NC No Connection
24 NC No Connection
25 GND Ground
26 SDA Serial data inout/output for I2C interface
27 SCL Clock input for I2C interface
28 GND Ground
29 NC No Connection
30 NC No Connection
31 GND Ground
32 GND Ground
33 GND Ground
34 NC No Connection
35 NC No Connection
36 NC No Connection
37 NC No Connection
38 NC No Connection
39 NC No Connection
40 NC No Connection



Touch Panel Interface

PinSymbolFunction
1 GND Ground
2 SDA I2C Data
3 SCL I2C Clock
4 INT Active Low
5 RESET Active low global reset signal input
6 VDD_3.3V Power Supply Voltage (3.3V)



General Specifications

ItemDimensionUnit
Size 12.1 inch
Dot Matrix 1280 × RGB × 800 dots
Outline dimension 305.00(W) × 200.00(L) × 11.40(H) mm
Active area 261.12 × 163.20 mm
Display Mode Full Viewing Angle, Transmissive, Normally Black
Color 16.7M
Weight -
Interface 8 bit LVDS
Touch type Projective capacitive touch panel
Output Interface I2C
Touch IC ILI2132



Absolute Maximum Ratings

ItemSymbolConditionMinMaxUnit
Logic Supply Voltage VDD GND_0V -0.3 3.6 V
Operating Temperature TOP(Ts) Note 1 -20 +70 ℃
Storage Temperature TST(Ta) Note 2 -30 +80 ℃
Storage Humidity HD Ta<60°C 10 +90 %RH

Note 1: Ts is the temperature of panel's surface-

Note 2: Ta is the ambient temperature of samples.


Electrical Characteristics

Operating Conditions

Item SymbolConditionMin.Typ.Max.
Power Supply Voltage for LCM Driver VDD - 3.0 3.3 3.6 V
Power Supply Current IDD VDD=3.3V - (130) - mA
SKU: NT121-C001PT
Brand: Powertip
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
Price
€189.90
€176.30
€170.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€189.90 excl tax

DRAWING



SPECIFICATIONS

LCM Interface

PinSymbolFunction
1 NC No Connection
2 VDD Power Supply
3 VDD Power Supply
4 VDD Power Supply
5 NC No Connection
6 GND Ground
7 GND Ground
8 RIN0- -LVDS Differential Data Input
9 RIN0+ +LVDS Differential Data Input
10 GND Ground
11 RIN1- -LVDS Differential Data Input
12 RIN1+ +LVDS Differential Data Input
13 GND Ground
14 RIN3- -LVDS Differential Data Input
15 RIN3+ +LVDS Differential Data Input
16 GND Ground
17 LVDS_CLK- -LVDS Differential Clock Input
18 LVDA_CLK+ +LVDS Differential Clock Input
19 GND Ground
20 RIN3+ -LVDS Differential Data Input
21 RIN3+ +LVDS Differential Data Input
22 GND Ground
23 NC No Connection
24 NC No Connection
25 GND Ground
26 SDA Serial data inout/output for I2C interface
27 SCL Clock input for I2C interface
28 GND Ground
29 NC No Connection
30 NC No Connection
31 GND Ground
32 GND Ground
33 GND Ground
34 NC No Connection
35 NC No Connection
36 NC No Connection
37 NC No Connection
38 NC No Connection
39 NC No Connection
40 NC No Connection



Touch Panel Interface

PinSymbolFunction
1 GND Ground
2 SDA I2C Data
3 SCL I2C Clock
4 INT Active Low
5 RESET Active low global reset signal input
6 VDD_3.3V Power Supply Voltage (3.3V)



General Specifications

ItemDimensionUnit
Size 12.1 inch
Dot Matrix 1280 × RGB × 800 dots
Outline dimension 305.00(W) × 200.00(L) × 11.40(H) mm
Active area 261.12 × 163.20 mm
Display Mode Full Viewing Angle, Transmissive, Normally Black
Color 16.7M
Weight -
Interface 8 bit LVDS
Touch type Projective capacitive touch panel
Output Interface I2C
Touch IC ILI2132



Absolute Maximum Ratings

ItemSymbolConditionMinMaxUnit
Logic Supply Voltage VDD GND_0V -0.3 3.6 V
Operating Temperature TOP(Ts) Note 1 -20 +70 ℃
Storage Temperature TST(Ta) Note 2 -30 +80 ℃
Storage Humidity HD Ta<60°C 10 +90 %RH

Note 1: Ts is the temperature of panel's surface-

Note 2: Ta is the ambient temperature of samples.


Electrical Characteristics

Operating Conditions

Item SymbolConditionMin.Typ.Max.
Power Supply Voltage for LCM Driver VDD - 3.0 3.3 3.6 V
Power Supply Current IDD VDD=3.3V - (130) - mA
Products specifications
Brand Powertip
Size 12.1"
Resolution 1280x800
Active Area (mm) 261.12x163.20
Color Full Color
Display Interface LVDS
Display IC No
View Angle IPS
Sunlight Readable High 601~1200cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection LVDS Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller ILI2132
Preferred - Not Preferred Preferred
