NT021RC001ML

TFT 2.1" 480x480, Round, Full Color, Interface MIPI, Wide View Angle (IPS), 350 cd/m2, Standard Temp., Capacitive touch panel

DESCRIPTION

NT021RC001ML is a TFT-LCD module. It is composed of a TFT-LCD panel, driver IC, FPC,a back light unit. The 2.1" display area contains 480X(RGB)x480 pixels and can display up to 16.7M colors. This product accords with ROHS environmental criterion.

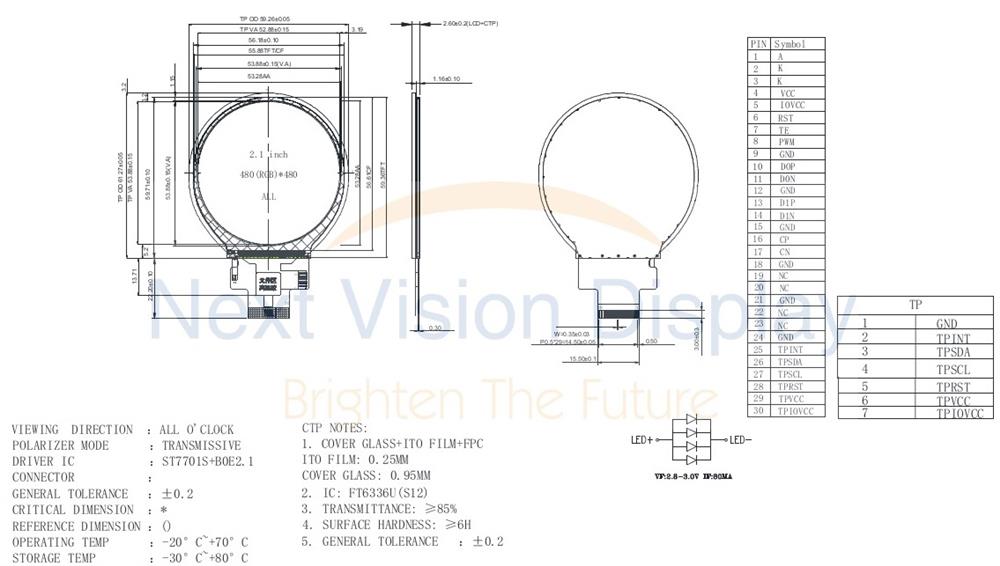

DRAWING

SPECIFICATIONS

Interface Pin Connection

Pin No.	Symbol	Function
1	LEDA	LED back light(Anode)
2-3	LEDK	LED back light(Cathode)
4	VCC	Power supply for I/O block. 2.8-3.3V
5	IOVCC	Power supply
6	RESET	Reset pin,active “L”
7	TE	Mainly plays the role of data synchronization
8	PWM	frequency output for LCD driver control.
9	GND	Power Ground
10	D0P	MIPI DSI differential data pair (DSI-Dn+).
11	D0N	MIPI DSI differential data pair (DSI-Dn-).
12	GND	Power Ground
13	D1P	MIPI DSI differential data pair (DSI-Dn+)
14	D1N	MIPI DSI differential data pair (DSI-Dn-)
15	GND	Power Ground
16	CP	MIPI DSI differential clock pair (DSI-CLK+)
17	CN	MIPI DSI differential clock pair (DSI-CLK-)
18	GND	Power Ground
19-20	NC	NC
21	GND	Power Ground
22-23	NC	NC
24	GND	Power Ground
25	TP_INT	TP
26	TP_SDA	TP
27	TP_SCL	TP
28	TP_RST	TP
29	TP_VCC	TP
30	TP_IOVCC	TP

Mechanical Specifications

Item	Contents	Unit	Note
LCD Type	TFT	-
Display color	16.7M	Color	1
Viewing Direction	ALL	O’Clock
Operating temperature	-20~+70	°C
Storage temperature	-30~+80	°C
Module size	56.18X59.71X1.16	mm	2
Active Area(W×H)	53.28X53.28	mm
Number of Dots	480×480	dots
Controller	ST7701S	-
Power Supply Voltage	2.8	V
Backlight	4P-LEDs (white)	pcs
Backlight	4 White LEDs In Parallels	g
Interface	MIPI	-

Absolute Maximum Ratings(Ta=25°C)

Electrical Absolute Maximum Ratings.(Vss=0V ,Ta=25°C)

Item	Symbol			Unit	Note
Supply Voltage	IOVCC	-0.3	3.6	V	1,2
Supply Voltage	VCI	-0.3	3.6	V
TFT Gate On voltage	VGH	-0.3	30	V
TFT Gate Off voltage	VGL	-0.3	30	V
Humidity	RH	-	90	%	Max. 60 °C

Environmental Absolute Maximum Ratings.

Item	Storage		Operating		Note
Item					Note
Ambient Temperature	-30°C	80°C	-20°C	70°C	1,2

Electrical Specifications

Electrical characteristics(Vss=0V ,Ta=25°C)

Parameter		Symbol	Conditio n	Min	Typ	Max	Unit	Note
Power voltage		IOVCC	Ta=25°C	1.65	1.8	3.3	V
Power voltage		VCI	Ta=25°C	2.5	2.8	3.6	V
Input voltage	‘H’	VIH	Ta=25°C	0.7*IOVCC	-	IOVCC	V
Input voltage	‘L’	VIL	Ta=25°C	-0.3	-	0.3*IOVCC	V

LED backlight specification(VSS=0V ,Ta=25°C)

Item	Symbol	Condition	Min	Typ	Max	Unit	Note
Supply voltage	Vf	If=80mA	-	3.0	-	V
Forward current	IL		-	80	-	mA
Uniformity	ΔBp	If=80mA	85	-	-	%
Life Time	time	If=80mA	20K	25K	-	hours	1

Optical Characteristics

Item	Symbol		Condition				Unit	Note
Brightness	Bp		θ=0° F=0°	-	350	-	Cd/m²	1
Uniformity	⊿Bp		θ=0° F=0°	85	-	-	%	1,2
Viewing Angle	3:00		Cr≥10	-	85	-	Deg	3
	6:00			-	85	-
	9:00			-	85	-
	12:00			-	85	-
Contrast Ratio	Cr		θ=0° F=0°	800	1000	-	-	4
Response Time	Tr+Tf		θ=0° F=0°	-	30	35	ms	5
Color of CIE Coordinate	W	x	θ=0° F=0°	-0.05	TBD	+0.05	-	1,6
	W	y			TBD		-
	R	x			TBD		-
	R	y			TBD		-
	G	x			TBD		-
	G	y			TBD		-
	B	x			TBD		-
	B	y			TBD		-
NTSC Ratio	S			60	69	-	%
