PH480272T017-ZBB01

Picture of PH480272T017-ZBB01 Picture of PH480272T017-ZBB01
TFT 4.3" 480x272 LCD Panel, Interface MCU (Parallel/SPI) IC NV3041A-01, 350cd/m², Wide view angle (IPS), Resistive touch panel

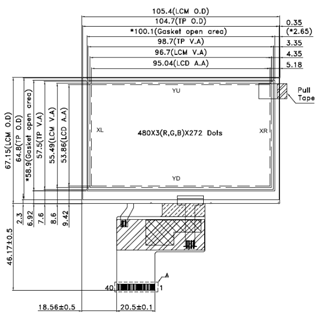

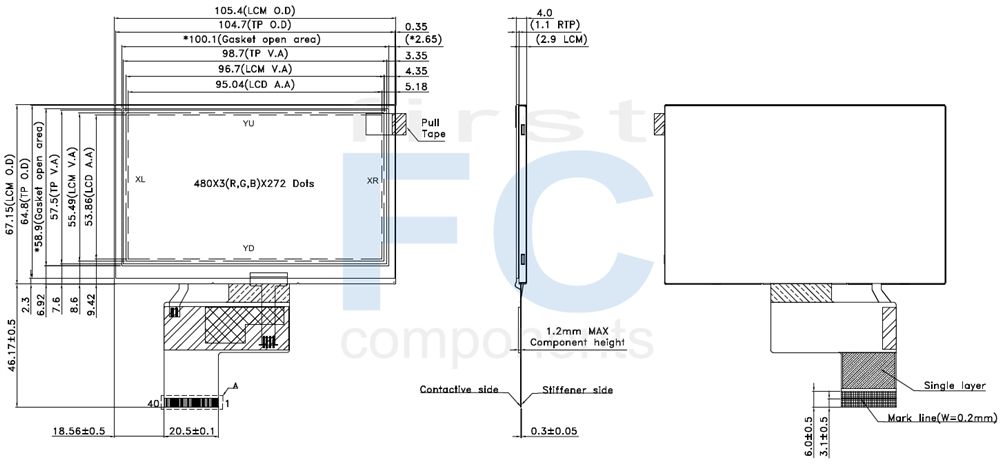

DRAWING



SPECIFICATIONS

Interface Pin Function

Pin
Number		SymbolFunction
1 VDD Digital Power
2 VDD Digital Power
3 NC Not Connect
4 GND Ground
5 CS A chip select signal. Signal is active low
6 SDA/SDO1 SPI bi-direction data pin
7 WRX/SCL Write sgnal input for 8080 I/F, Clock inout SPI I/F
8 RDX Read enable inout
9 DCX/SDO2

8080 & 3/4 Line I/F

Data or Command

DCX = "H" is data, DCX = "L" is command

Dual-SPI: the second data lane

Quard-SPI: the second data pin
10 GND Ground
11 RESET Global reset. Active low
12 GND Ground
13 D0

When using 8080 8-bit parallel interface D8-D15 is pull low

When using 8080 9-bit parallel interface D9-D15 is pull low

When using 3/4 SPI interface

D[15:0] are not used and should connect to "L" by GND

When using Dual-SPI interface

SDA: In/Out, DCX: In

D[15:0] are not used and should connect to "L" by GND

When using Quard-SPI interface

D2: the third pin of Quard-SPI SDO3

D3: the fourth pin of Quard-SPI SDO4

D[15:2] are not used and should connect to "L" by GGND
14 D1
15 D2
16 D3
17 D4
18 D5
19 D6
20 D7
21 D8
22 D9
23 D10
24 D11
25 D12
26 D13
27 D14
28 D15
29 TE Tearing effect output pin is used to syncrhronize MCU frame writing, activated bt S/W command. When this pin is not activated (TE function OFF), this pin is GND level
30 IM0

IM0, IM1 selects interface mode.

IM1 IM0 Selected Interface
0 0 8080 series 8bit
8080 series 9bit
8080 series 16bit
0 1 3/4-wire SPI
1 0 Dual SPI
1 1 Quad SPI


31 IM1
32 SPI4W

SPI 3/4 wire selection.

SPI4W="H", 4 wire SPI

SPI4W="L", 3 wire SPI
33 GND Ground
34 NC Not Connect
35 A Power supply for LED Backlight anode input
36 K Power supply for LED Backlight cathode input
37 XR Touch panel X axis (RIGHT)
38 YD Touch panel Y axis (BOTTOM)
39 XL Touch panel X axis (LEFT)
40 YU Touch panel Y axis (TOP)



General Specification

ItemDimensionUnit
Display Type 480 × 3(RGB) x 272 Dots －
Module dimension 105.4(W) × 67.15(L) × 4.0(H) mm
Active Area 95.04(W) × 53.86(L) mm
Pixel Size 0.198(W) × 0.198(H) mm
LCD Type Full Viewing Angle, Normally Black, Transmissive type
Screen size (inch) 4.3"(Diagonal)
Color configuration R,G,B, vertical stripe
Display Interface 8080 8 Bit - 9 Bit - 16 Bit & 3/4 Line - Dual SPI & Quad SPI/IF
Driver IC NV3041A-01
ROHS This product conforms the RoHS of PTC



Absolute Maximum Ratings

ParameterSymbolConditionMinMaxUnit
System Power Supply Voltage VDD GND=0 -0.5 +4.6 V
Input Voltage Range Vin - -0.5 VDD+0.3 V
Operating Temperature TOP (Ts) Note 1 -20 +70 °C
Storage Temperature TST (Ta) Note 2 -30 +80 °C
Storage Humidity HD Ta≤60°C - 90 %RH

Note 1: Ts is the temperature of panel's surface.

Note 2: Ta is the ambient temperature of samples.



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Power Supply Voltage VDD － 3.0 3.3 3.6 V
"H" Input Voltage VIH － 0.7×VDD － VDD V
"L" Input Voltage VIL － GND － 0.3×VDD V
"H" Output Voltage VOH － VDD-0.4 － VDD V
"L" Output Voltage VOL － GND － GND +0.4 V
Supply Current IDD VDD =3V － (35) (50) mA

GND=0, Ta=25°C

SKU: PH480272T017-ZBB01
Brand: Powertip
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€25.40
€23.40
€19.80
€18.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€25.40 excl tax

DRAWING



SPECIFICATIONS

Interface Pin Function

Pin
Number		SymbolFunction
1 VDD Digital Power
2 VDD Digital Power
3 NC Not Connect
4 GND Ground
5 CS A chip select signal. Signal is active low
6 SDA/SDO1 SPI bi-direction data pin
7 WRX/SCL Write sgnal input for 8080 I/F, Clock inout SPI I/F
8 RDX Read enable inout
9 DCX/SDO2

8080 & 3/4 Line I/F

Data or Command

DCX = "H" is data, DCX = "L" is command

Dual-SPI: the second data lane

Quard-SPI: the second data pin
10 GND Ground
11 RESET Global reset. Active low
12 GND Ground
13 D0

When using 8080 8-bit parallel interface D8-D15 is pull low

When using 8080 9-bit parallel interface D9-D15 is pull low

When using 3/4 SPI interface

D[15:0] are not used and should connect to "L" by GND

When using Dual-SPI interface

SDA: In/Out, DCX: In

D[15:0] are not used and should connect to "L" by GND

When using Quard-SPI interface

D2: the third pin of Quard-SPI SDO3

D3: the fourth pin of Quard-SPI SDO4

D[15:2] are not used and should connect to "L" by GGND
14 D1
15 D2
16 D3
17 D4
18 D5
19 D6
20 D7
21 D8
22 D9
23 D10
24 D11
25 D12
26 D13
27 D14
28 D15
29 TE Tearing effect output pin is used to syncrhronize MCU frame writing, activated bt S/W command. When this pin is not activated (TE function OFF), this pin is GND level
30 IM0

IM0, IM1 selects interface mode.

IM1 IM0 Selected Interface
0 0 8080 series 8bit
8080 series 9bit
8080 series 16bit
0 1 3/4-wire SPI
1 0 Dual SPI
1 1 Quad SPI


31 IM1
32 SPI4W

SPI 3/4 wire selection.

SPI4W="H", 4 wire SPI

SPI4W="L", 3 wire SPI
33 GND Ground
34 NC Not Connect
35 A Power supply for LED Backlight anode input
36 K Power supply for LED Backlight cathode input
37 XR Touch panel X axis (RIGHT)
38 YD Touch panel Y axis (BOTTOM)
39 XL Touch panel X axis (LEFT)
40 YU Touch panel Y axis (TOP)



General Specification

ItemDimensionUnit
Display Type 480 × 3(RGB) x 272 Dots －
Module dimension 105.4(W) × 67.15(L) × 4.0(H) mm
Active Area 95.04(W) × 53.86(L) mm
Pixel Size 0.198(W) × 0.198(H) mm
LCD Type Full Viewing Angle, Normally Black, Transmissive type
Screen size (inch) 4.3"(Diagonal)
Color configuration R,G,B, vertical stripe
Display Interface 8080 8 Bit - 9 Bit - 16 Bit & 3/4 Line - Dual SPI & Quad SPI/IF
Driver IC NV3041A-01
ROHS This product conforms the RoHS of PTC



Absolute Maximum Ratings

ParameterSymbolConditionMinMaxUnit
System Power Supply Voltage VDD GND=0 -0.5 +4.6 V
Input Voltage Range Vin - -0.5 VDD+0.3 V
Operating Temperature TOP (Ts) Note 1 -20 +70 °C
Storage Temperature TST (Ta) Note 2 -30 +80 °C
Storage Humidity HD Ta≤60°C - 90 %RH

Note 1: Ts is the temperature of panel's surface.

Note 2: Ta is the ambient temperature of samples.



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Power Supply Voltage VDD － 3.0 3.3 3.6 V
"H" Input Voltage VIH － 0.7×VDD － VDD V
"L" Input Voltage VIL － GND － 0.3×VDD V
"H" Output Voltage VOH － VDD-0.4 － VDD V
"L" Output Voltage VOL － GND － GND +0.4 V
Supply Current IDD VDD =3V － (35) (50) mA

GND=0, Ta=25°C

Products specifications
Brand Powertip
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.86
Color Full Color
Display Interface MCU (Parallel/SPI)
Display IC NV3041A-01
View Angle IPS
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Powertip
Size 4.3"
Resolution 480x272
Active Area (mm) 95.04x53.86
Color Full Color
Display Interface MCU (Parallel/SPI)
Display IC NV3041A-01
View Angle IPS
Frame No
Touch Panel Resistive
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
