PH480272T017-ZBC02

TFT 4.3" 480x272 LCD Panel, Interface MCU (Parallel/SPI) IC NV3041A-01, 370cd/m², Wide view angle (IPS), Capacitive touch panel I2C interface (GG, FT5446U IC)

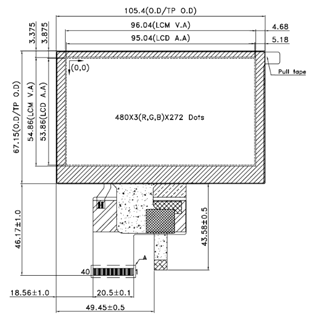

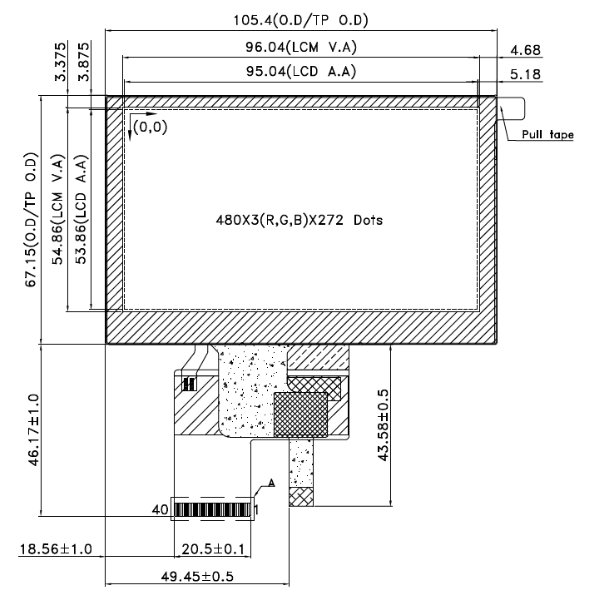

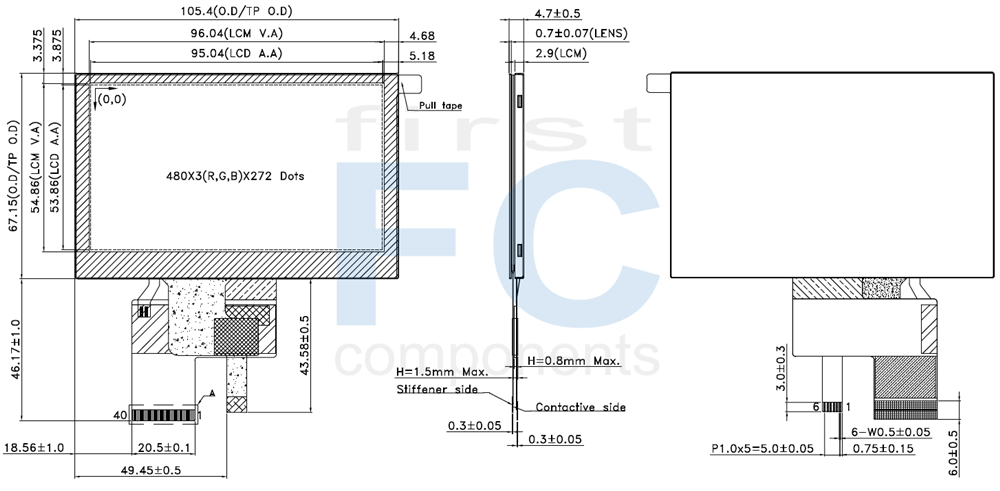

DRAWING



SPECIFICATIONS

Interface Pin Function

Pin
Number
SymbolFunction
1 VDD Digital Power
2 VDD Digital Power
3 NC Not Connect
4 GND Ground
5 CS A chip select signal. Signal is active low
6 SDA/SDO1 SPI bi-direction data pin
7 WRX/SCL Write sgnal input for 8080 I/F, Clock inout SPI I/F
8 RDX Read enable inout
9 DCX/SDO2

8080 & 3/4 Line I/F

Data or Command

DCX = "H" is data, DCX = "L" is command

Dual-SPI: the second data lane

Quard-SPI: the second data pin

10 GND Ground
11 RESET Global reset. Active low
12 GND Ground
13 D0

When using 8080 8-bit parallel interface D8-D15 is pull low

When using 8080 9-bit parallel interface D9-D15 is pull low

When using 3/4 SPI interface

D[15:0] are not used and should connect to "L" by GND

When using Dual-SPI interface

SDA: In/Out, DCX: In

D[15:0] are not used and should connect to "L" by GND

When using Quard-SPI interface

D2: the third pin of Quard-SPI SDO3

D3: the fourth pin of Quard-SPI SDO4

D[15:2] are not used and should connect to "L" by GGND

14 D1
15 D2
16 D3
17 D4
18 D5
19 D6
20 D7
21 D8
22 D9
23 D10
24 D11
25 D12
26 D13
27 D14
28 D15
29 TE Tearing effect output pin is used to syncrhronize MCU frame writing, activated bt S/W command. When this pin is not activated (TE function OFF), this pin is GND level
30 IM0

IM0, IM1 selects interface mode.

IM1 IM0 Selected Interface
0 0 8080 series 8bit
8080 series 9bit
8080 series 16bit
0 1 3/4-wire SPI
1 0 Dual SPI
1 1 Quad SPI



31 IM1
32 SPI4W

SPI 3/4 wire selection.

SPI4W="H", 4 wire SPI

SPI4W="L", 3 wire SPI

33 GND Ground
34 NC Not Connect
35 A Power supply for LED Backlight anode input
36 K Power supply for LED Backlight cathode input
37 NC Not Connect
38 NC Not Connect
39 NC Not Connect
40 NC Not Connect



Capacitive Touch Panel (CTP) Interface

Pin
Number
SymbolFunction
1 TPVDD Power Supply Voltage (3.3V)
2 GND Ground
3 SCL I2C Clock
4 SDA I2C Data
5 INT Active Low
6 WAKE Active low reset signal input



General Specification

ItemDimensionUnit
Display Type 480 × 3(RGB) x 272 Dots
Module dimension 105.4(W) × 67.15(L) × 4.7(H) mm
Active Area 95.04(W) × 53.86(L) mm
Pixel Size 0.198(W) × 0.198(H) mm
LCD Type Full Viewing Angle, Normally Black, Transmissive type
Screen size (inch) 4.3"(Diagonal)
Color configuration R,G,B, vertical stripe
Display Interface 8080 8 Bit - 9 Bit - 16 Bit & 3/4 Line - Dual SPI & Quad SPI/IF
Driver IC NV3041A-01
ROHS This product conforms the RoHS of PTC



Absolute Maximum Ratings

ParameterSymbolConditionMinMaxUnit
System Power Supply Voltage VDD GND=0 -0.5 +4.6 V
Input Voltage Range Vin - -0.5 VDD+0.3 V
Operating Temperature TOP (Ts) Note 1 -20 +70 °C
Storage Temperature TST (Ta) Note 2 -30 +80 °C
Storage Humidity HD Ta≤60°C - 90 %RH

Note 1: Ts is the temperature of panel's surface.

Note 2: Ta is the ambient temperature of samples.



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Power Supply Voltage VDD 3.0 3.3 3.6 V
"H" Input Voltage VIH 0.7×VDD VDD V
"L" Input Voltage VIL GND 0.3×VDD V
"H" Output Voltage VOH VDD-0.4 VDD V
"L" Output Voltage VOL GND GND +0.4 V
Supply Current IDD VDD =3V (35) (50) mA

GND=0, Ta=25°C

SKU: PH480272T017-ZBC02
Brand: Powertip
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€32.70
€28.20
€27.00
€24.40

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005
