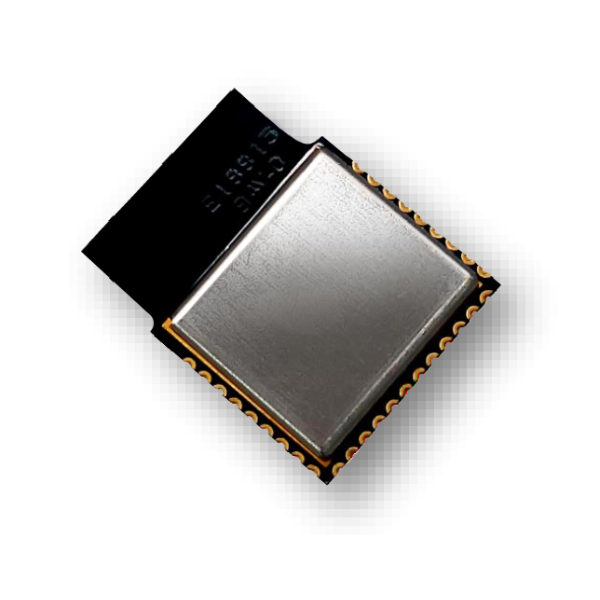

RYB2340

2.4GHz Bluetooth 5.3 module, Low Energy Module with Integrated Antenna, 16.7mm*13mm*2.2mm

DESCRIPTION

The RYB2340 is a Bluetooth Low Energy Module with Integrated Antenna. It is specially designed for smartphone peripheral applications. By using the AT command and Android/iOS APP source codes which are developed by REYAX, your products could be fast and easily connected with the smartphones.

  • Bluetooth v5.3 with Bluetooth Low Energy ( Bluetooth Smart )
  • High-Performance and Low-Power TI CC2340R5 industry-standard chip
  • Designed with PCB integrated antenna, Suitable for SMT
  • Metal cover against EMI interference
  • GATT profile module, designed for transparent mode.
  • Support Master and Slave role.



SPECIFICATION

Item Min. Typical Max. Unit Condition
Operation Voltage 2.2 3.3 3.8 V VDD
RF Output Power     8 dBm
Radio transmit current

11

   mA +8 dBm output power setting
RF Sensitivity

-96.5

-102

   dBm

1Mbps

125Kbps
Active Current   2.4   mA UART function is available. BLE broadcasting.
UART Baud Rate 9600

115200

   dBm

bps
RF Frequency Range 2360   2510 MHz
Flash erase cycles   30   K cycles
Operating Temperature -40 25 +85 ˚C
Antenna         Embedded PCB Antenna
Dimensions

16.7mm*13mm*2.2mm

Please refer to the 3D model.
Weight   0.8   g
SKU: RYB2340
Brand: Reyax
Available: Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
Price
€4.70
€4.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€4.70 excl tax

DESCRIPTION

The RYB2340 is a Bluetooth Low Energy Module with Integrated Antenna. It is specially designed for smartphone peripheral applications. By using the AT command and Android/iOS APP source codes which are developed by REYAX, your products could be fast and easily connected with the smartphones.

  • Bluetooth v5.3 with Bluetooth Low Energy ( Bluetooth Smart )
  • High-Performance and Low-Power TI CC2340R5 industry-standard chip
  • Designed with PCB integrated antenna, Suitable for SMT
  • Metal cover against EMI interference
  • GATT profile module, designed for transparent mode.
  • Support Master and Slave role.



SPECIFICATION

Item Min. Typical Max. Unit Condition
Operation Voltage 2.2 3.3 3.8 V VDD
RF Output Power     8 dBm
Radio transmit current

11

   mA +8 dBm output power setting
RF Sensitivity

-96.5

-102

   dBm

1Mbps

125Kbps
Active Current   2.4   mA UART function is available. BLE broadcasting.
UART Baud Rate 9600

115200

   dBm

bps
RF Frequency Range 2360   2510 MHz
Flash erase cycles   30   K cycles
Operating Temperature -40 25 +85 ˚C
Antenna         Embedded PCB Antenna
Dimensions

16.7mm*13mm*2.2mm

Please refer to the 3D model.
Weight   0.8   g
