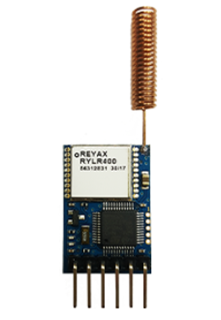

RYLR406

Frequency Range:426/433/470 MHz, Control by AT command, 53.5*18.36*5.5 mm

Application: Iot Applications, Mobile Equipment, Home Security, Industrial Monitoring and Control Equipment, Car Alarm.
Frequency Range:426/433/470 MHz
Semtech SX127x Engine
High efficiency Power Amplifier
Excellent blocking immunity
Low Receive current
High sensitivity
Control easily by AT commands
127 dB Dynamic Range RSSI
Designed with integrated antenna
AES128 Data encryption
Operation temperature: -40℃ to +85℃
Dimension: 53.5*18.36*5.5 mm
Weight: 7g

The RYLR406 transceiver module feature the Lora long range modem that provides ultra-long range spread spectrum communication and high interference immunity whilst minimising current consumption.

Item	Min.	Typical	Max.	Unit	Condition
VDD Power Supply	2	3.3	3.6	V	VDD
RF Output Power Range	-4		15	dBm
Filter insertion loss	1	2	3	dB
RF Sensitivity	-148			dBm
RF Input Level			10	dBm
Frequency Range	410	433	525	MHz
Frequency Accuracy		±2		ppm
Communication Range		4.5	15	KM	Depend on RF parameter
Transmit Current		43		mA	RFOP = +15 dBm
Receive Current		16.5		mA	AT+MODE=0
Sleep Current		0.5		uA	AT+MODE=1
Baud rate	300	115200	115200	bps	8, N, 1
Digital Input Level High	0.7*VDD		VDD	V	VIH
Digital Input Level Low	0		0.3*VDD	V	VIL
Digital Output Level High	0.9		VDD	V	VOH
Digital Output Level Low			0.1	V	VOL
Cycling (erase / write) EEPROM data memory		300		K	Cycles
Weight		7		g
Operating Temperature	-40	25	+85	˚C

SKU: RYLR406

Brand: Reyax

Available: No

Be the first to review this product

Price Breaks

Quantity

Price

€17.10

€16.60

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€17.10 excl tax
