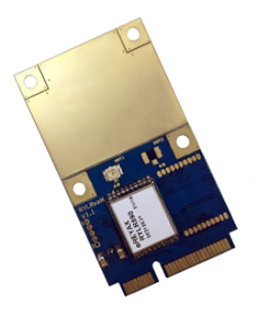

RYLR89H1

Frequency Range:868 / 915 MHz, Control by AT command, Full/ Half-size Mini PCIe Card
  • Easy to integrate into the operating system.
  • No extra telecommunication fees.
  • Control easily by AT commands.
  • Up to 65535 nodes.
  • AES128 Data encryption.
  • Standard mini PCIe full-size 30mm*50.95mm / half-size 30mm*26.8mm.
  • Temperature range: -40 to +85°C.
  • Mini PCIe Signal Type USB2.0.



RYLR89H1 is a REYAX proprietary Lora host mini PCIe card. According to the “AT command” that can serve the data exchange between surrounding Lora node products and controller, it is very suitable for regional applications and can easily control and monitor Lora node products.

Ordering No. Frequency Range Corresponding model
RYLR89H1 862~1020MHz RYLR895, RYLR896



Item Min. Typical Max. Unit Condition
VDD Power Supply 2 3.3 3.6 V VDD
RF Output Power Range -4   15 dBm
Filter insertion loss 1 2 3 dB
RF Sensitivity -148     dBm
RF Input Level     10 dBm
Frequency Range 820 868/915 1020 MHz RYLR89H1
Frequency Accuracy   ±2   ppm
Communication Range   4.5 15 KM Depend on RF parameter
Transmit Current   86   mA RFOP = +15 dBm
Receive Current   33   mA
USB Specification   2.0     full-speed (12 Mbps)
Baud rate   115200   bps
Cycling (erase / write)



EEPROM data memory

  300   K Cycles
Weight   12   g
Operating Temperature -40 25 +85 ˚C

SKU: RYLR89H1
Brand: Reyax
  • Easy to integrate into the operating system.
  • No extra telecommunication fees.
  • Control easily by AT commands.
  • Up to 65535 nodes.
  • AES128 Data encryption.
  • Standard mini PCIe full-size 30mm*50.95mm / half-size 30mm*26.8mm.
  • Temperature range: -40 to +85°C.
  • Mini PCIe Signal Type USB2.0.



RYLR89H1 is a REYAX proprietary Lora host mini PCIe card. According to the “AT command” that can serve the data exchange between surrounding Lora node products and controller, it is very suitable for regional applications and can easily control and monitor Lora node products.

Ordering No. Frequency Range Corresponding model
RYLR89H1 862~1020MHz RYLR895, RYLR896



Item Min. Typical Max. Unit Condition
VDD Power Supply 2 3.3 3.6 V VDD
RF Output Power Range -4   15 dBm
Filter insertion loss 1 2 3 dB
RF Sensitivity -148     dBm
RF Input Level     10 dBm
Frequency Range 820 868/915 1020 MHz RYLR89H1
Frequency Accuracy   ±2   ppm
Communication Range   4.5 15 KM Depend on RF parameter
Transmit Current   86   mA RFOP = +15 dBm
Receive Current   33   mA
USB Specification   2.0     full-speed (12 Mbps)
Baud rate   115200   bps
Cycling (erase / write)



EEPROM data memory

  300   K Cycles
Weight   12   g
Operating Temperature -40 25 +85 ˚C
