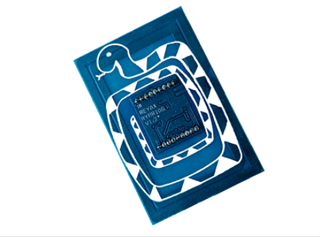

RYRR10S

13.56-MHz RFID and NFC system, Supports NFC, ISO/IEC 18092, 45.72*30.48*1 mm
  • ST CR95HF NFC/RFID Engine.
  • Supports Near Field Communication (NFC) ISO/IEC 18092.
  • Completely Integrated Protocol Handling for ISO/IEC 15693, ISO/IEC 14443A, ISO/IEC 14443B.
  • NXP MIFARE® Classic compatible.
  • Designed with PCB integrated antenna.
  • UART / SPI Interface optional.

The RYRR10S antenna module is a 13.56-MHz RFID and Near Field Communication (NFC) system. Built-in programming options make the device suitable for a wide range of applications for proximity and vicinity identification systems.



Item Min. Typical Max. Unit Condition
Operation Voltage 2.7   5.5 V VDD
VOH 0.9*VDD VDD VDD V TXD High-level output voltage
VOL 0 0 0.1*VDD V TXD Low-level output voltage
VIH 0.7*VDD 3.3 VDD V RXD Low-level output voltage
VIL 0 0 0.3*VDD V RXD Low-level input voltage
RF Output Power   55   mW
Reader mode current   70   mA VDD=3.3V
Tag detect mode current   50 100 uA 4 RF bursts per second
Sleep state current   20 80 uA
Communication Range   4 8 cm Depending on the RFID TAG.
Startup time   6   ms
Baud Rate   57600   bps 8, N, 1
RF Frequency Range 13.553 13.56 13.567 MHz
Opearting Temperature -25 25 +85 °C
Antenna         Internal
Weight   4   g
SKU: RYRR10S
Brand: Reyax
Available: Yes
Be the first to review this product
Price Breaks
Quantity
1+
5+
Price
€8.50
€8.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€8.50 excl tax
  • ST CR95HF NFC/RFID Engine.
  • Supports Near Field Communication (NFC) ISO/IEC 18092.
  • Completely Integrated Protocol Handling for ISO/IEC 15693, ISO/IEC 14443A, ISO/IEC 14443B.
  • NXP MIFARE® Classic compatible.
  • Designed with PCB integrated antenna.
  • UART / SPI Interface optional.

The RYRR10S antenna module is a 13.56-MHz RFID and Near Field Communication (NFC) system. Built-in programming options make the device suitable for a wide range of applications for proximity and vicinity identification systems.



Item Min. Typical Max. Unit Condition
Operation Voltage 2.7   5.5 V VDD
VOH 0.9*VDD VDD VDD V TXD High-level output voltage
VOL 0 0 0.1*VDD V TXD Low-level output voltage
VIH 0.7*VDD 3.3 VDD V RXD Low-level output voltage
VIL 0 0 0.3*VDD V RXD Low-level input voltage
RF Output Power   55   mW
Reader mode current   70   mA VDD=3.3V
Tag detect mode current   50 100 uA 4 RF bursts per second
Sleep state current   20 80 uA
Communication Range   4 8 cm Depending on the RFID TAG.
Startup time   6   ms
Baud Rate   57600   bps 8, N, 1
RF Frequency Range 13.553 13.56 13.567 MHz
Opearting Temperature -25 25 +85 °C
Antenna         Internal
Weight   4   g
