VGG107608-0TMLWB

Picture of VGG107608-0TMLWB Picture of VGG107608-0TMLWB Picture of VGG107608-0TMLWB
Panel Mount LCD Monitor 10.4” with IPCT (USB), 1024x768 resolution, Brightness 310cd/m², MVA Technology, LCD VGA/DVI/HDMI interface, 0+70°C O.T.

DESCRIPTION

► 10.4 inch Industrial Open Frame Monitor
► Versatile mounting methods for rear mounting and VESA mounting
► Signal interface: VGA & DVI & HDMI*
► Build-in 4Ω 2W*2 Speaker
► Support OSD Function
► Projected Capacitive Touch
► USB Interface
► Multi Touch (Five points)
► 1024 x 768 resolution

Open Frame Monitor 10.4 inch 1024 x 768 pixels MVA TFT LCD screen, with wide viewing angle display, 0 ~ 70℃ operating temperature. The series supports rear and VESA mounting and is ideal for different embedded and industrial applications.

* Support HDMI Interface that fullfill the needs of your digital device.

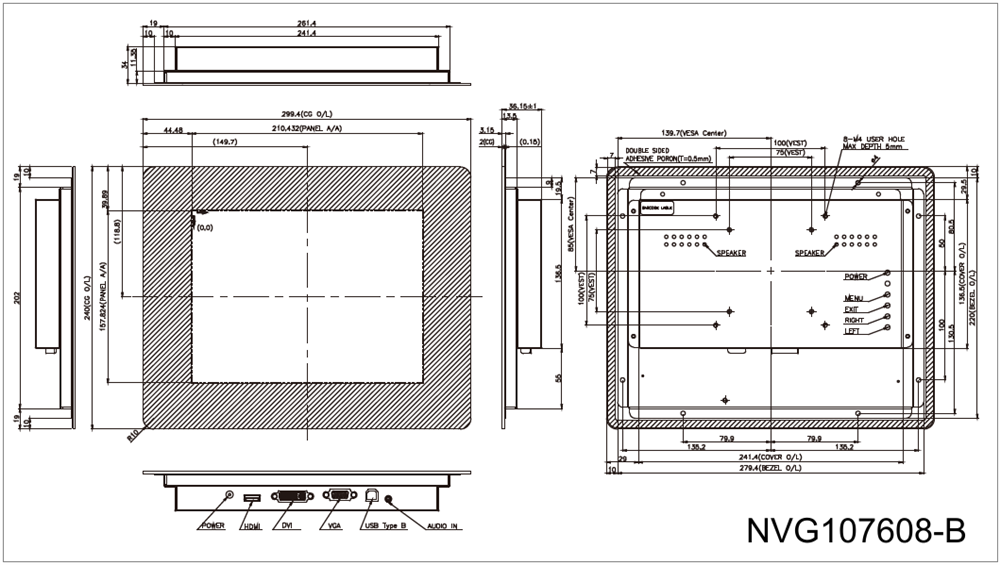

DRAWING



Absolute Maximum Ratings

Item

Symbol

Min.

Max.

Unit

Storage Temperature

TST

-20

+70

°C

Operating Ambient Temperature

TOP

-0

+70

°C



Electrical Characteristics(Ta=25±2°C)

Item

Symbol

Min.

Typ.

Max.

Unit

Note

System Power Supply Input

VIN

11.5

12.0

12.5

V

-

System Power Supply Curre

Iin

-

0.60

0.84

A

-

LED Life Time(25℃)

LL

30000

-

-

hr

(1)

Note (1)：LED life time is defined as under 25±2°C , when the average brightness decrease to 50% of original brightness



Projected Capacitive Touch (Ta=25±2°C)

Item

Symbol

Min.

Typ.

Max.

Unit

Note

Power Supply Voltage

VUSB

4.8

5.0

5.2

V

-

Power Supply Current

IUSB

-

39.4

55.2

mA

(1)

Output High Threshold Voltage

VOH

2.8

-

-

V

-

Output Low Threshold Voltage

VOL

-

-

0.8

V

-

Differential Input Sensitivity

|(D+)-(D-)|

VDI

0.2

-

-

V

-

Differential Input Common

Mode Range

VCM

0.8

-

2.5

V

-

Power Consumption

PL

-

197.0

276.0

mW

@5.0V

Report Rate

RR

-

60

-

Hz

-

Note (1) This test condition is touched with 5 points.

SKU: VGG107608-0TMLWB
Brand: Evervision
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
Price
€458.40
€427.90
€414.10

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€458.40 excl tax

DESCRIPTION

► 10.4 inch Industrial Open Frame Monitor
► Versatile mounting methods for rear mounting and VESA mounting
► Signal interface: VGA & DVI & HDMI*
► Build-in 4Ω 2W*2 Speaker
► Support OSD Function
► Projected Capacitive Touch
► USB Interface
► Multi Touch (Five points)
► 1024 x 768 resolution

Open Frame Monitor 10.4 inch 1024 x 768 pixels MVA TFT LCD screen, with wide viewing angle display, 0 ~ 70℃ operating temperature. The series supports rear and VESA mounting and is ideal for different embedded and industrial applications.

* Support HDMI Interface that fullfill the needs of your digital device.



DRAWING



Absolute Maximum Ratings

Item

Symbol

Min.

Max.

Unit

Storage Temperature

TST

-20

+70

°C

Operating Ambient Temperature

TOP

-0

+70

°C



Electrical Characteristics(Ta=25±2°C)

Item

Symbol

Min.

Typ.

Max.

Unit

Note

System Power Supply Input

VIN

11.5

12.0

12.5

V

-

System Power Supply Curre

Iin

-

0.60

0.84

A

-

LED Life Time(25℃)

LL

30000

-

-

hr

(1)

Note (1)：LED life time is defined as under 25±2°C , when the average brightness decrease to 50% of original brightness



Projected Capacitive Touch (Ta=25±2°C)

Item

Symbol

Min.

Typ.

Max.

Unit

Note

Power Supply Voltage

VUSB

4.8

5.0

5.2

V

-

Power Supply Current

IUSB

-

39.4

55.2

mA

(1)

Output High Threshold Voltage

VOH

2.8

-

-

V

-

Output Low Threshold Voltage

VOL

-

-

0.8

V

-

Differential Input Sensitivity

|(D+)-(D-)|

VDI

0.2

-

-

V

-

Differential Input Common

Mode Range

VCM

0.8

-

2.5

V

-

Power Consumption

PL

-

197.0

276.0

mW

@5.0V

Report Rate

RR

-

60

-

Hz

-

Note (1) This test condition is touched with 5 points.

Products specifications
Brand Evervision
Size 10.4"
Resolution 1024x768
Active Area (mm) 210.43x157.82
Display Interface VGA/DVI/HDMI
Touch Panel Capacitive
O. Temperature (°C) -20~70
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Evervision
Size 10.4"
Resolution 1024x768
Active Area (mm) 210.43x157.82
Display Interface VGA/DVI/HDMI
Touch Panel Capacitive
O. Temperature (°C) -20~70
Preferred - Not Preferred Preferred
