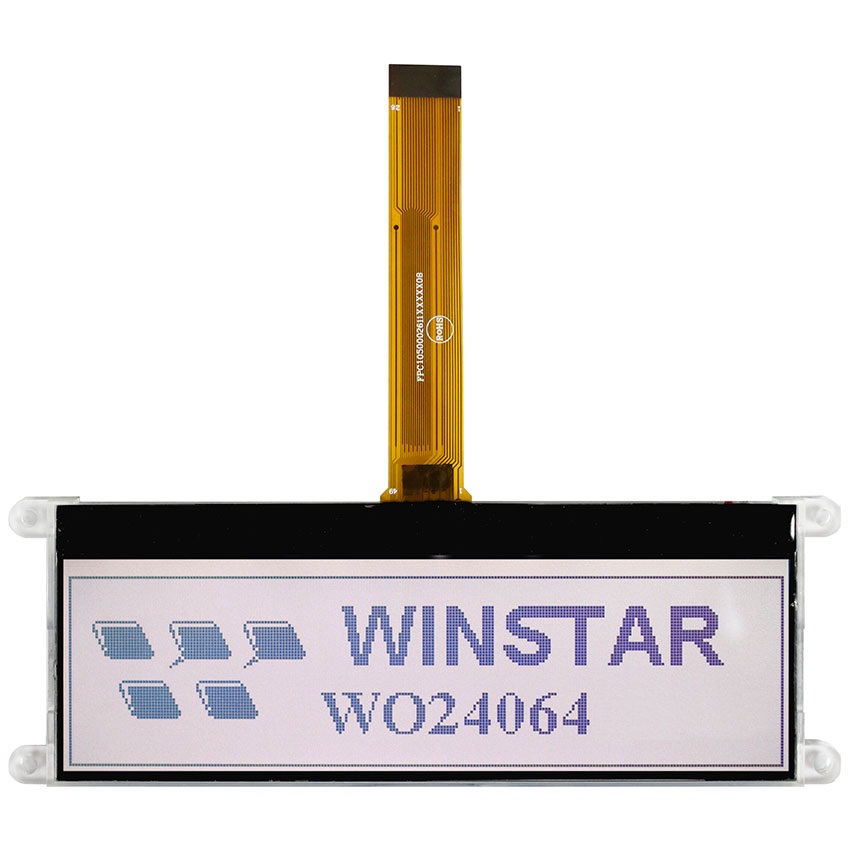

WO24064-85HB#FC

Graphic LCD 5.2" 240x64, B/L white, FSTN white pos, Transflective, COG, 3.3V, Interface 6800/8080/SPI, 6 O'clock, Frame

DESCRIPTION

The Winstar Display COG graphic standard display LCD 240x64 has outline dimension 142.5 x 51.7 mm and AA size 127.17x33.89mm. This display is built in with one ST7586S-G4 driver IC which supports 6800/8080, 4 Line SPI or 3 Line SPI (optional) interface. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.

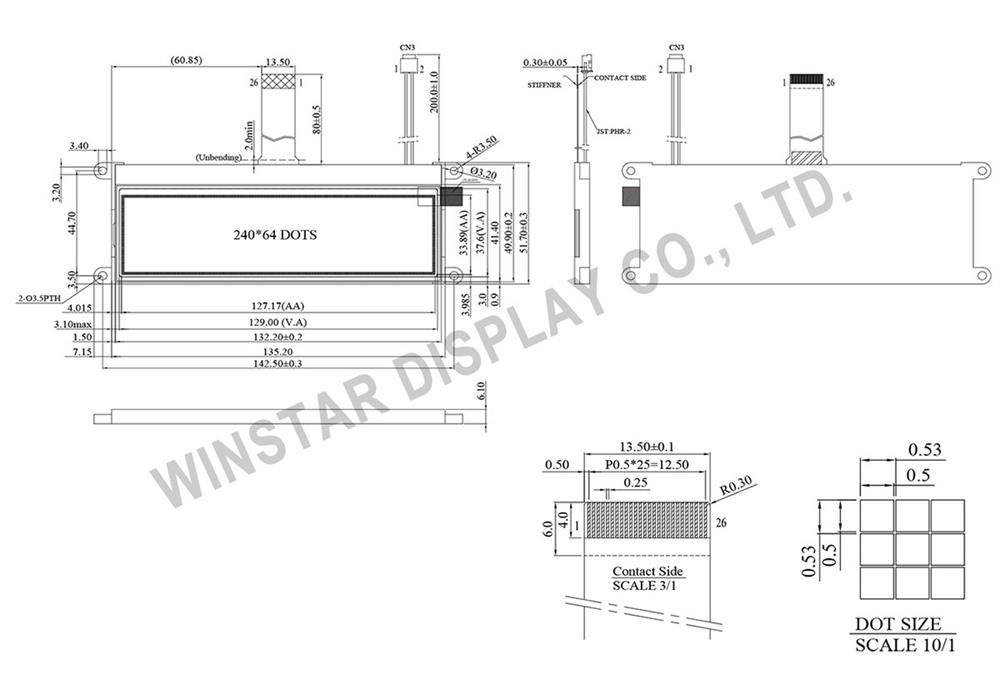

DRAWING

COG Display LCD 240x64 - Winstar WO24064B

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VG VG is the power of SEG-drivers.
2 XV0 Negative operating voltage of COM-drivers.
3 V0 Positive operating voltage for Vop generator.
4 VM VM is the non-select voltage level of COM-drivers.
5 VDDA Analog power for internal booster.
6 VSS Ground
7 VD1 VD1 is the power source of digital circuits.
8 VDDI Power of interface I/O circuit.
9 CSB Chip select input pins
10 IF3 These pins select interface operation mode.
"110" : 80 series。 "100" : 68 series。 "011" : SPI-4 。"010" : SPI-3
11 IF2
12 IF1
13 RSTB Controller reset signal, Active Low
14 /RD(E) 8080 family: Read signal, 6800 family: Enable clock
15~22 D7~Do Data bus line
23 NC No connection
24 /WR(R/W) 8080 family: Write signal, 6800 family: Read/Write signal
25 A0(SCL) Data/ Instruction select signal / In serial mode used as SCL (serial-clock)
26 VSS Ground



Mechanical Data

ItemStandard ValueUnit
Module Dimension 142.5 × 51.7 mm
Viewing Area 129.0 × 37.6 mm
Mounting Hole 142.5 × 44.7 mm
Dot Pitch 0.53 × 0.53 mm
Dot Size 0.50 × 0.50 mm



Electrical Characteristics

ItemSymbolStandard value
typ.		Unit
Input Voltage VDD 3.3 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 Vo-Vss 10.0 V


SKU: WO24064-85HB#FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€19.50
€15.60
€15.80

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€19.50 excl tax

DESCRIPTION

The Winstar Display COG graphic standard display LCD 240x64 has outline dimension 142.5 x 51.7 mm and AA size 127.17x33.89mm. This display is built in with one ST7586S-G4 driver IC which supports 6800/8080, 4 Line SPI or 3 Line SPI (optional) interface. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.



DRAWING

COG Display LCD 240x64 - Winstar WO24064B

SPECIFICATIONS



Interface Pin Function

Pin No.SymbolDescription
1 VG VG is the power of SEG-drivers.
2 XV0 Negative operating voltage of COM-drivers.
3 V0 Positive operating voltage for Vop generator.
4 VM VM is the non-select voltage level of COM-drivers.
5 VDDA Analog power for internal booster.
6 VSS Ground
7 VD1 VD1 is the power source of digital circuits.
8 VDDI Power of interface I/O circuit.
9 CSB Chip select input pins
10 IF3 These pins select interface operation mode.
"110" : 80 series。 "100" : 68 series。 "011" : SPI-4 。"010" : SPI-3
11 IF2
12 IF1
13 RSTB Controller reset signal, Active Low
14 /RD(E) 8080 family: Read signal, 6800 family: Enable clock
15~22 D7~Do Data bus line
23 NC No connection
24 /WR(R/W) 8080 family: Write signal, 6800 family: Read/Write signal
25 A0(SCL) Data/ Instruction select signal / In serial mode used as SCL (serial-clock)
26 VSS Ground



Mechanical Data

ItemStandard ValueUnit
Module Dimension 142.5 × 51.7 mm
Viewing Area 129.0 × 37.6 mm
Mounting Hole 142.5 × 44.7 mm
Dot Pitch 0.53 × 0.53 mm
Dot Size 0.50 × 0.50 mm



Electrical Characteristics

ItemSymbolStandard value
typ.		Unit
Input Voltage VDD 3.3 V
Recommended LCD Driving
Voltage for Normal Temp.
Version module @25°C		 Vo-Vss 10.0 V


Products specifications
Brand Winstar
Size 5.2"
Resolution 240x64
Active Area (mm) 127.17x33.89
Dot Size 0.50x0.50
B/L color, LCD type B/L white, FSTN white pos
Power supply 3.3V
Display Interface 6800/8080/SPI
Display IC ST7586S-G4
Constructive Structure COG
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 26
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5.2"
Resolution 240x64
Active Area (mm) 127.17x33.89
Dot Size 0.50x0.50
B/L color, LCD type B/L white, FSTN white pos
Power supply 3.3V
Display Interface 6800/8080/SPI
Display IC ST7586S-G4
Constructive Structure COG
View Angle 6H
Frame Yes
Touch Panel No touch
O. Temperature (°C) -20~70
Display Connection FPC for ZIF Connector
Pin Nr. 26
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
