WEA12832W#F00-FC

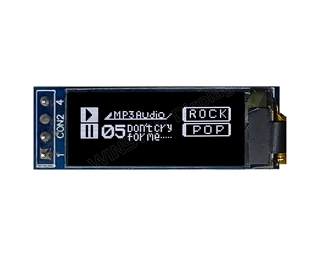

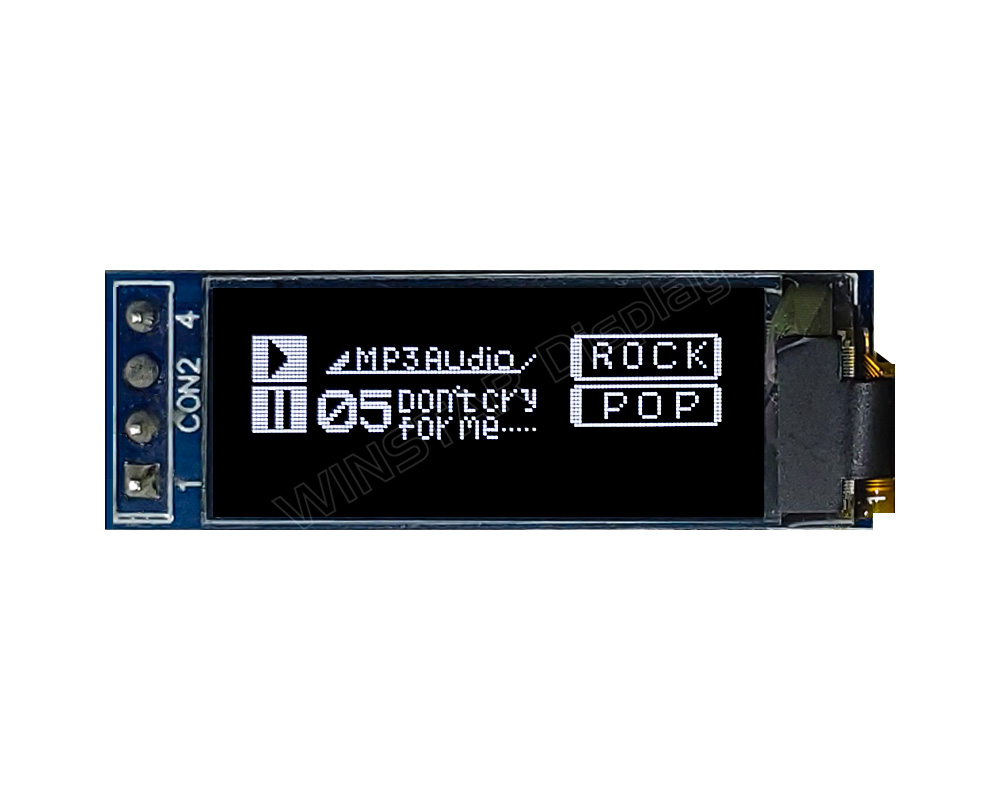

PMOLED 0.91'' Graphic 128x32, White color, COG + PCB, 3V, Interface I2C (Pin)

DESCRIPTION

Graphic COG with PCB OLED module, which is made of resolution 128x32 pixels, diagonal size 0.91 inch. It is built in with SSD1306 IC; it supports I2C interface, 1/32 driving duty. It has PCB outline size 35.80 × 12.0 mm with mounting holes on board and 4x1 metal pins on module.

The supply voltage for logic is 3.V/ 5V, supply voltage for display is 7.5V (Internal Boots), display with 50% check board current is 13mA@3VDD (typical value). Operating temperatures from -40℃ to +80℃; storage temperatures range from -40℃ to +85℃.

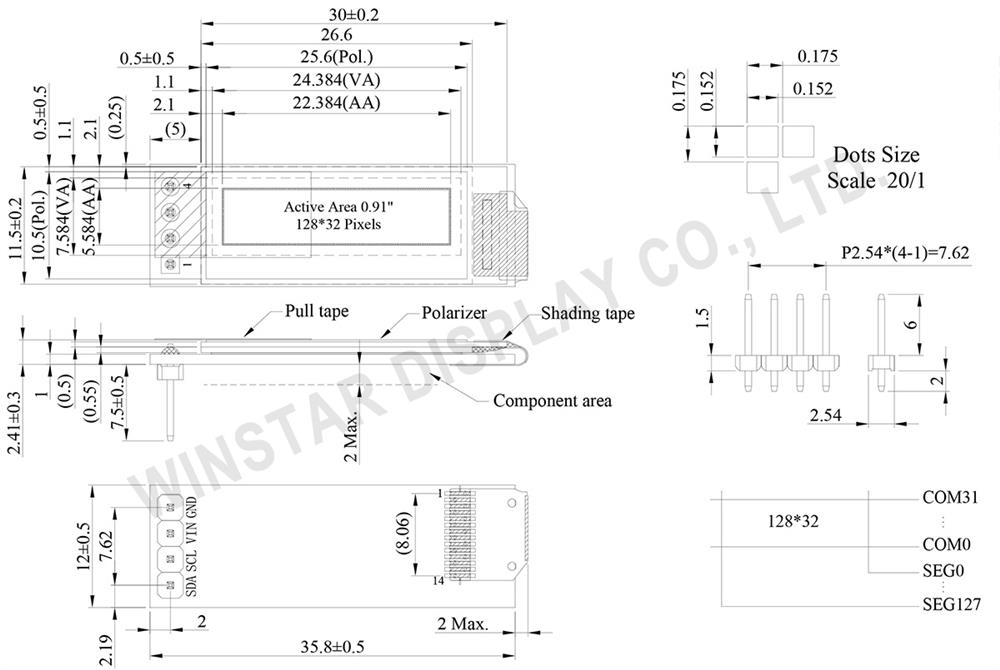

DRAWING

0.91" COG+PCB Passive Matrix OLED 128x32 - WEA012832F - Winstar

SPECIFICATIONS

Interface Pin Function

No.	Symbol	Function
1	GND	Ground
2	VIN	Power supply input.
3	SCL	When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI).
4	SDA

Mechanical Data

Item	Dimension	Unit
Dot Matrix	128 x 32 Dots	－
Module dimension	35.8 x 12.0 x 2.41	mm
Active Area	22.384 x 5.584	mm
Pixel Size	0.152 x 0.152	mm
Pixel Pitch	0.175 x 0.175	mm
Display Mode	Passive Matrix
Display Color	Monochrome
Drive Duty	1/32 Duty
IC	SSD1306
Interface	I2C
Size	0.91 inch

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Logic	VIN	0	4.0	V
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TSTG	-40	+85	°C

Electronical Characteristics

DC Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VIN	－	2.8	3.0	3.3	V
Input High Volt.	VIH	－	0.8×VIN	－	VIN	V
Input Low Volt.	VIL	－	0	－	0.2×VIN	V
Output High Volt.	VOH	－	0.9×VIN	－	VIN	V
Output Low Volt.	VOL	－	0	－	0.1×VIN	V
50% check Board operating Current	IIN	VIN=3V	－	13.0	26.0	mA

SKU: WEA12832W#F00-FC

Brand: Winstar

Available: Yes

Be the first to review this product

Price Breaks

Quantity

10+

50+

100+

Price

€4.60

€3.40

€3.30

€3.10

€2.90

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005
