WEA12864L#D88-FC

PMOLED 0.96'' Graphic 128x64, Yellow, COG + PCB, 3V, Interface SPI (8 Pin)

DESCRIPTION

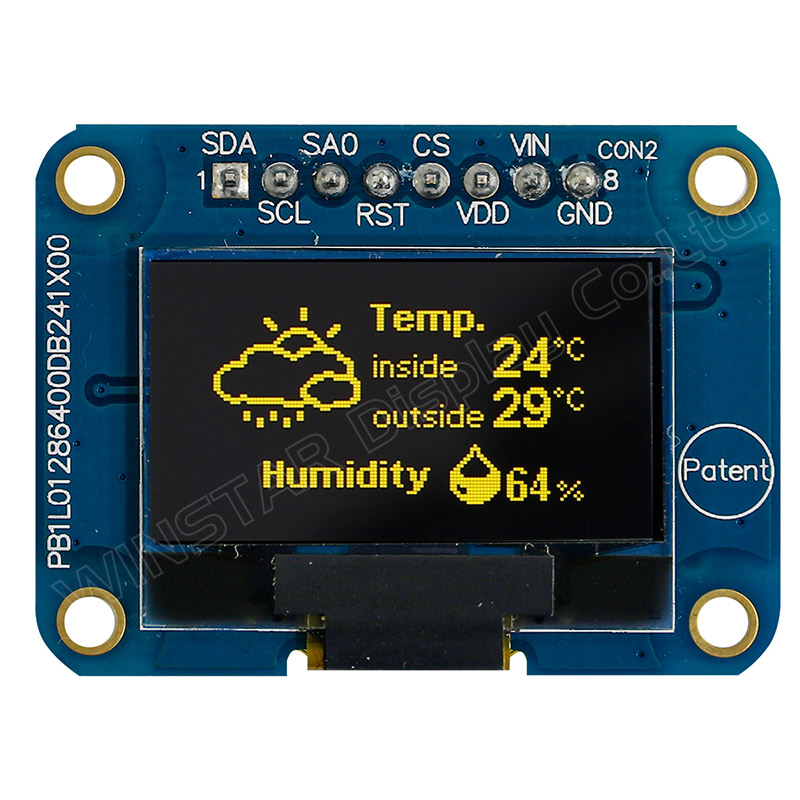

Winstar OLED 12864, SSD1306 OLED Display

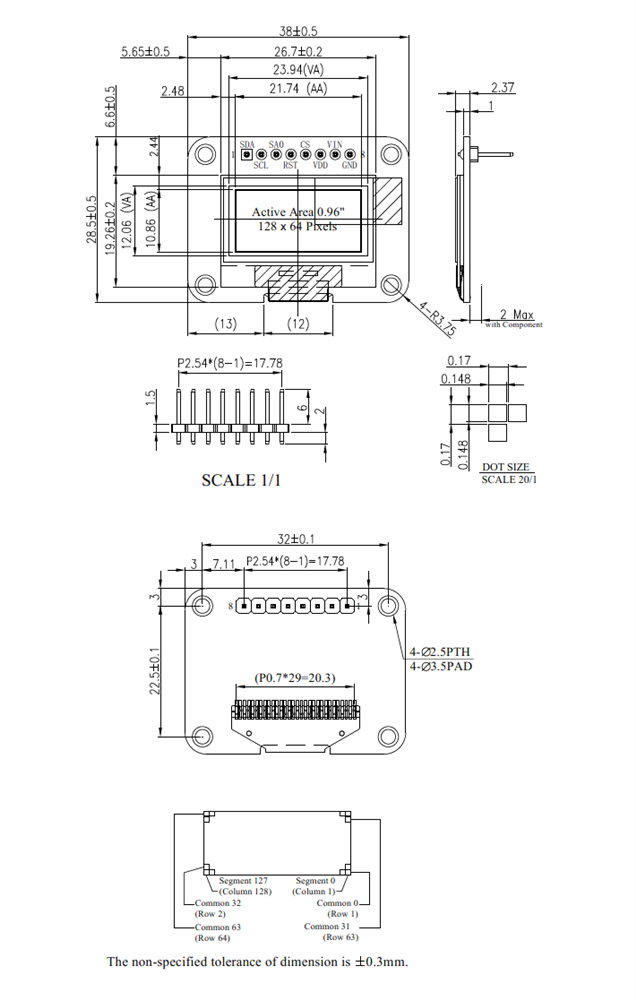

OLED display module made of 128x64 pixels, diagonal size 0.96 inch. This module is built in with SSD1306 IC, it supports SPI (default), I2C interface optional, VCC 3V /5V, I/O level 5V to 3V, with conversion circuit, 1/64 duty cycle. PCB outline size 38.0x28.5x2.37 mm with mounting holes on board and 8 metal pins on module.

This 128x64 SSD1306 OLED display module is suitable for smart control, industrial control for heater, smart home application, medical device, etc. Operating temperatures from -40℃ to +80℃; torage temperatures range from -40℃ to +85℃.





SKU: WEA12864L#D88-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€6.30
€4.60
€4.50
€4.40

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€6.30 excl tax

DESCRIPTION



Winstar OLED 12864, SSD1306 OLED Display

OLED display module made of 128x64 pixels, diagonal size 0.96 inch. This module is built in with SSD1306 IC, it supports SPI (default), I2C interface optional, VCC 3V /5V, I/O level 5V to 3V, with conversion circuit, 1/64 duty cycle. PCB outline size 38.0x28.5x2.37 mm with mounting holes on board and 8 metal pins on module.

This 128x64 SSD1306 OLED display module is suitable for smart control, industrial control for heater, smart home application, medical device, etc. Operating temperatures from -40℃ to +80℃; torage temperatures range from -40℃ to +85℃.





Products specifications
Brand Winstar
Size 0.96"
Resolution 128x64
Active Area (mm) 21.74x10.86
Dot Size 0.14x0.14
Polarizer Glare
Color Yellow
Power supply 3V
Interface SPI (option I2C)
Built-in Controller SSD1306BZ
Structure COG + PCB
Frame Yes
Touch Panel No touch
Display Connection Pin
Pin Nr. 8
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 0.96"
Resolution 128x64
Active Area (mm) 21.74x10.86
Dot Size 0.14x0.14
Polarizer Glare
Color Yellow
Power supply 3V
Interface SPI (option I2C)
Built-in Controller SSD1306BZ
Structure COG + PCB
Frame Yes
Touch Panel No touch
Display Connection Pin
Pin Nr. 8
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
