WEA12864W#A01-FC

PMOLED 1.54'' Graphic 128x64, White, COG + PCB, 3~5V, Interface SPI, Anti-glare

DESCRIPTION

This model is the extension item of WEO12864x#A01-FC which is having a PCB board on module; it's diagonal size 1.54 inch, made of 128x64 pixels. This PCB board with four mounting holes is an easy method for customers to fix modules on their applications. This OLED module is built in with SSD1309 IC; it supports 4-wire SPI interface; optional I2C interface, driving duty 1/64, supply voltage for logic is from 3.3V ~5V, I/O level 5V to 3V with conversion circuit, the display with 50% check board current is 80mA @3.3VDD (typical value).

This OLED module is suitable for smart home application, medical device, smart control, meter, etc. Operating temperatures from -40℃ to +80℃; storage temperatures range from -40℃ to +85℃.

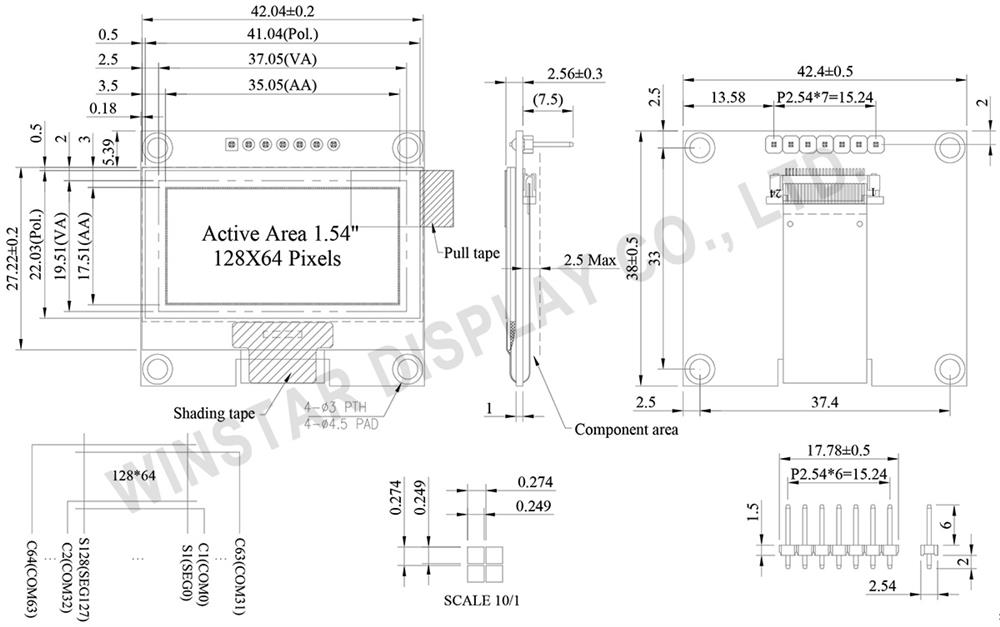

DRAWING

SPECIFICATIONS

Interface Pin Function

No.	Symbol	Function
1	GND	Ground pin.
2	VCC	Power supply pin for core logic operation.
3	D0	The serial clock input
4	D1	The serial data input
5	RES#	This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed. Keep this pin pull HIGH during normal operation.
6	D/C#	This pin is Data/Command control pin connecting to the MCU. When the pin is pulled HIGH, the data at D1 will be interpreted as data. When the pin is pulled LOW, the data at D1 will be transferred to a command register.
7	CS#	This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).

Mechanical Data

Item	Dimension	Unit
Dot Matrix	128 × 64	-
Module dimension	42.4 × 38 × 2.56	mm
Active Area	35.05 × 17.51	mm
Pixel Size	0.249 × 0.249	mm
Pixel Pitch	0.274 × 0.274	mm
Display Mode	Passive Matrix
Display Color	Monochrome
Drive Duty	1/64 Duty
IC	SSD1309
Interface	4-Wire SPI / I2C Option
Size	1.54 inch

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Display	VCC	2	6	V
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TSTG	-40	+85	°C

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VCC	－	2.8	3.3	5.5	V
High Level Input	VIH	－	0.8×VCC	－	－	V
Low Level Input	VIL	－	－	－	0.2×VCC	V
High Level Output	VOH	－	0.9×VCC	－	－	V
Low Level Output	VOL	－	－	－	0.1×VCC	V
50% Check Board operating Current		VCC =3.3V	－	80	160	mA
