WF70-2801424C3M#0P14-FC

Picture of WF70-2801424C3M#0P14-FC Picture of WF70-2801424C3M#0P14-FC
TFT 7" 280×1424, Bar Type, LCD + IC Controller, Interface 4-Lanes MIPI IC OTA7290B , 500 cd/m², Wide view angle (IPS), No Frame, Capacitive touch panel, Glare with bonding OCA



DESCRIPTION

WF70-2801424C3M#0P14-FC is a 7-inch Bar Type TFT LCD with excellent visual effects. This 280x1424 high-resolution display adopts IPS technology, presenting a wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degrees.

This TFT module support full-color display and touch function. The PCAP panel features OCA technology to increase its durability and present better optical clarity.It is widely used in Medical Equipment (Syringe Infusion Pump), 1U IPC (1U = 44mm), medical infusion devices, Instrumentation equipment, kitchen hood display, freezer display, Air conditioner, etc.

The power supply of the display is 3.0V to 3.6V. and typical value is 3.3V.The operating temperature is from -20 to +70 °C, while the storage temperature extends from -30 to +80°C.



DRAWING

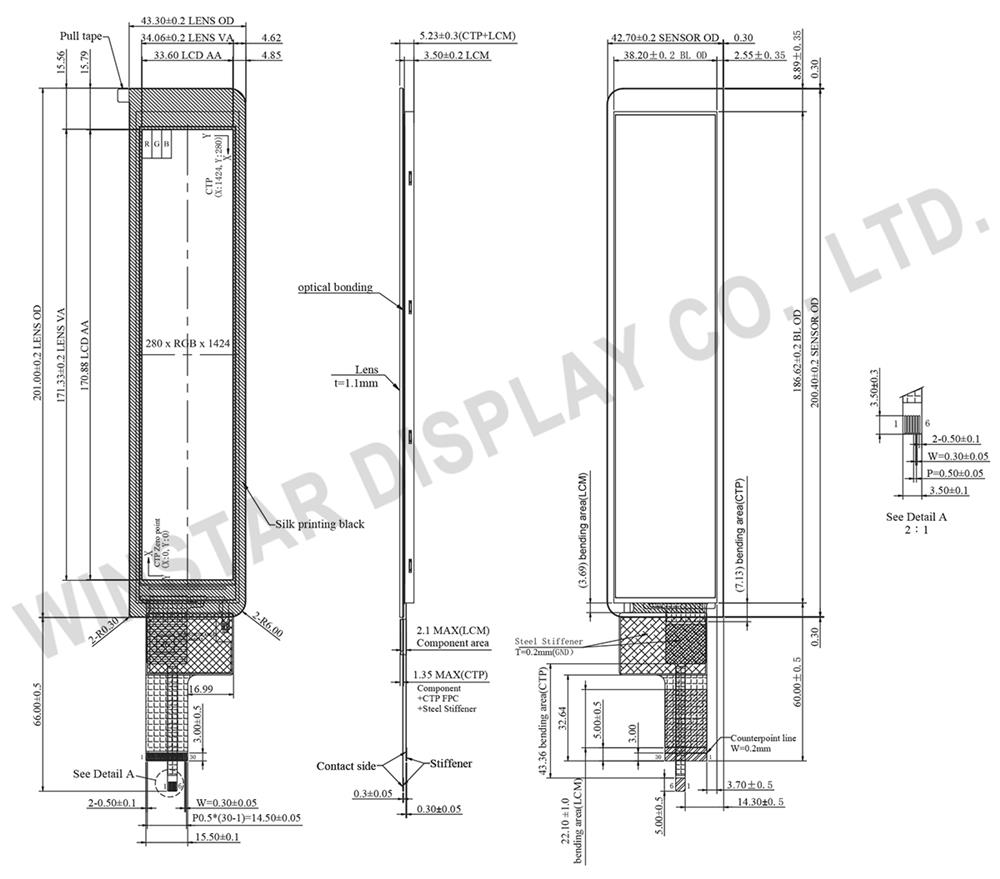

7 inch 280x1424 Bar Type,IPS TFT-LCD Display with PCAP



SPECIFICATIONS



Interface

1.LCM PIN Definition

NO.SymbolDescription
1 GND Ground
2 D3N Negative polarity of low voltage differential data signal
3 D3P Positive polarity of low voltage differential data signal
4 GND Ground
5 D2N Negative polarity of low voltage differential data signal
6 D2P Positive polarity of low voltage differential data signal
7 GND Ground
8 CLKN Negative polarity of low voltage differential clock signal
9 CLKP Positive polarity of low voltage differential clock signal
10 GND Ground
11 D1N Negative polarity of low voltage differential data signal
12 D1P Positive polarity of low voltage differential data signal
13 GND Ground
14 D0N Negative polarity of low voltage differential data signal
15 D0P Positive polarity of low voltage differential data signal
16-17 GND Ground
18 TE Tearing effect output pin to synchronize to frame writing.
If not used, open this pin
19 RESET Reset signal pin
20 GND Ground
21-23 VCC Power supply
24 GND Ground
25-26 NC Not connect
27-28 VLED- LED cathode
29-30 VLED+ LED anode


2.Touch FPC Pin Assignment

NO.SymbolDescription
1 GND Ground
2 INT Interrupt request to the host
3 RST Wakeup request from the host
4 SDA I2C data input and output
5 SCL I2C clock input
6 VDD Power supply


General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 280 x RGBx1424(TFT) dots
Module dimension 43.3(H) x 201.0(V) x 5.23(D) mm
Active area 33.60 (H) x170.88(V) mm
Pixel pitch 0.12(H) x 0.12(V) mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80 (IPS)
Aspect Ratio 1:5
Driver IC OTA7290B or Equivalent
Interface 4-Lanes MIPI
PCAP Driver IC FT5446IDQQ or Equivalent
PCAP Resolution X：1424 , Y：280
PCAP FW Version V03
Backlight Type LED, Normally White
Touch Panel Projected Capacitive Touch Panel (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

1.TFT LCD Module

ItemSymbolMinTypMaxUnit
Analog Supply voltage VCC 3.0 3.3 3.6 V
Analog supply current ICC - 102 120 mA
Logic input voltage VIH 0.7*VCC - VCC V
VIL GND - 0.3*VCC V


2.Touch panel

ItemSymbolMinTypMaxUnit
Power supply voltage VDD - 3.3 - V
Power supply current IDD - 15 - mA
Logic input voltage VIH 0.7*VCC - VDD V
VIL GND - 0.3*VCC V


3.Backlight Driving Conditions

ParameterSymbolMinTypMaxUnit
LED Current IF -- 40 -- mA
LED Voltage VF 21.6 24 27.2 Volt
LED Life-Time N/A 15,000 -- -- Hour

SKU: WF70-2801424C3M#0P14-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€104.10
€93.70
€79.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€104.10 excl tax



DESCRIPTION

WF70-2801424C3M#0P14-FC is a 7-inch Bar Type TFT LCD with excellent visual effects. This 280x1424 high-resolution display adopts IPS technology, presenting a wider viewing angle of Left:80 / Right:80 / Up:80 / Down:80 degrees.

This TFT module support full-color display and touch function. The PCAP panel features OCA technology to increase its durability and present better optical clarity.It is widely used in Medical Equipment (Syringe Infusion Pump), 1U IPC (1U = 44mm), medical infusion devices, Instrumentation equipment, kitchen hood display, freezer display, Air conditioner, etc.

The power supply of the display is 3.0V to 3.6V. and typical value is 3.3V.The operating temperature is from -20 to +70 °C, while the storage temperature extends from -30 to +80°C.



DRAWING

7 inch 280x1424 Bar Type,IPS TFT-LCD Display with PCAP



SPECIFICATIONS



Interface

1.LCM PIN Definition

NO.SymbolDescription
1 GND Ground
2 D3N Negative polarity of low voltage differential data signal
3 D3P Positive polarity of low voltage differential data signal
4 GND Ground
5 D2N Negative polarity of low voltage differential data signal
6 D2P Positive polarity of low voltage differential data signal
7 GND Ground
8 CLKN Negative polarity of low voltage differential clock signal
9 CLKP Positive polarity of low voltage differential clock signal
10 GND Ground
11 D1N Negative polarity of low voltage differential data signal
12 D1P Positive polarity of low voltage differential data signal
13 GND Ground
14 D0N Negative polarity of low voltage differential data signal
15 D0P Positive polarity of low voltage differential data signal
16-17 GND Ground
18 TE Tearing effect output pin to synchronize to frame writing.
If not used, open this pin
19 RESET Reset signal pin
20 GND Ground
21-23 VCC Power supply
24 GND Ground
25-26 NC Not connect
27-28 VLED- LED cathode
29-30 VLED+ LED anode


2.Touch FPC Pin Assignment

NO.SymbolDescription
1 GND Ground
2 INT Interrupt request to the host
3 RST Wakeup request from the host
4 SDA I2C data input and output
5 SCL I2C clock input
6 VDD Power supply


General Specifications

ItemDimensionUnit
Size 7.0 inch
Dot Matrix 280 x RGBx1424(TFT) dots
Module dimension 43.3(H) x 201.0(V) x 5.23(D) mm
Active area 33.60 (H) x170.88(V) mm
Pixel pitch 0.12(H) x 0.12(V) mm
LCD type TFT, Normally Black, Transmissive
Viewing Angle 80/80/80/80 (IPS)
Aspect Ratio 1:5
Driver IC OTA7290B or Equivalent
Interface 4-Lanes MIPI
PCAP Driver IC FT5446IDQQ or Equivalent
PCAP Resolution X：1424 , Y：280
PCAP FW Version V03
Backlight Type LED, Normally White
Touch Panel Projected Capacitive Touch Panel (PCAP)
Surface Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -20 － +70 ℃
Storage Temperature TST -30 － +80 ℃



Electrical Characteristics

1.TFT LCD Module

ItemSymbolMinTypMaxUnit
Analog Supply voltage VCC 3.0 3.3 3.6 V
Analog supply current ICC - 102 120 mA
Logic input voltage VIH 0.7*VCC - VCC V
VIL GND - 0.3*VCC V


2.Touch panel

ItemSymbolMinTypMaxUnit
Power supply voltage VDD - 3.3 - V
Power supply current IDD - 15 - mA
Logic input voltage VIH 0.7*VCC - VDD V
VIL GND - 0.3*VCC V


3.Backlight Driving Conditions

ParameterSymbolMinTypMaxUnit
LED Current IF -- 40 -- mA
LED Voltage VF 21.6 24 27.2 Volt
LED Life-Time N/A 15,000 -- -- Hour

Products specifications
Brand Winstar
Size 7"
Resolution 280x1424
Active Area (mm) 33.60x170.88
Color Full Color
Display Interface MIPI
Display IC OTA7290B
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Touch Panel IC Controller FT5446IDQQ
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 7"
Resolution 280x1424
Active Area (mm) 33.60x170.88
Color Full Color
Display Interface MIPI
Display IC OTA7290B
View Angle IPS
Frame No
Touch Panel Capacitive
O. Temperature (°C) -20~70
Display Connection ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Touch Panel IC Controller FT5446IDQQ
Preferred - Not Preferred Preferred
