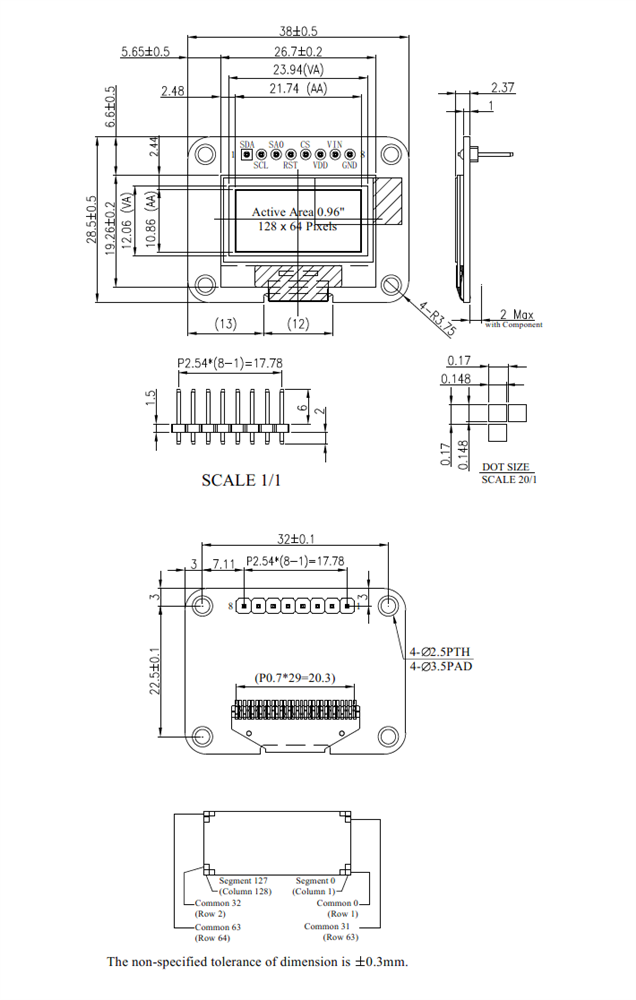

OLED display module made of 128x64 pixels, diagonal size 0.96 inch. This module is built in with SSD1306 IC, it supports SPI (default), I2C interface optional, VCC 3V /5V, I/O level 5V to 3V, with conversion circuit, 1/64 duty cycle. PCB outline size 38.0x28.5x2.37 mm with mounting holes on board and 8 metal pins on module.
This 128x64 SSD1306 OLED display module is suitable for smart control, industrial control for heater, smart home application, medical device, etc. Operating temperatures from -40℃ to +80℃; torage temperatures range from -40℃ to +85℃.
For quantities above 25 pcs pls send your enquiry to firstname.lastname@example.org or call +39 0332 1888005
