WEO12864W#C02-FC

Picture of WEO12864W#C02-FC Picture of WEO12864W#C02-FC
PMOLED 0.96'' 128x64, White color, COG, 3V, Interface 6800,8080,SPI,I2C, Anti-glare (FPC per ZIF Connector)

DESCRIPTION



ZIF FPC version of Graphic OLED display made of 128x64 pixels, diagonal size only 0.96 inch. It is built in with SH1106 controller IC and it communicates via 6800/8080 8-bit parallel, I2C and 4-wire SPI interface, 1/64 duty cycle.

Small COG OLED display which is very thin; lightweight and low power consumption.  It is suitable for handheld instruments, smart meters, voice recorder, wearable device, IoT, etc.  Operating temperatures from -40℃ to +80℃; storage temperatures range from -40℃ to +85℃.

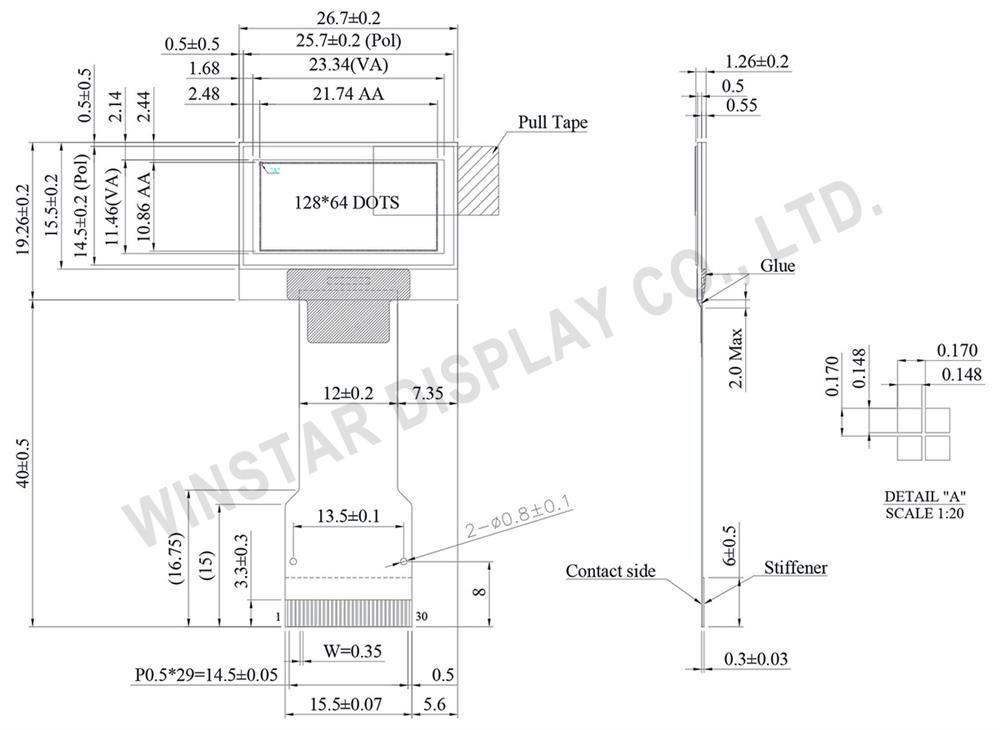

DRAWING

WEO012864C-ZIF - Winstar Display



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 NC No connection
2 C1N Connect to charge pump capacitor.
These pins are not used and should be disconnected when Vpp is supplied externally.
3 C1P
4 C2P Connect to charge pump capacitor.
These pins are not used and should be disconnected when Vpp is supplied externally.
5 C2N
6 VDD2 3.0 – 4.7V power supply pad for Power supply for charge pump circuit.
This pin should be disconnected when VPP is supplied externally
7 NC No connection
8 VSS Ground.
9 VDD1 Power supply input: 1.65 - 3.5V
10 IM0 These are the MPU interface mode select pads.
 808012C68004-wire SPI3-wire SPI
IM0 0 0 0 0 1
IM1 1 1 0 0 0
IM2 1 0 1 0 0
11 IM1
12 IM2
13 CSB This pad is the chip select input. When CSB = “L”, then the chip select becomes active, and data/command I/O is enabled.
14 RESB This is a reset signal input pad. When RES is set to “L”, the settings are initialized. The reset operation is performed by the RES signal level.
15 A0 This is the Data/Command control pad that determines whether the data bits are data or a command.
A0 = “H”: the inputs at D0 to D7 are treated as display data.
A0 = “L”: the inputs at D0 to D7 are transferred to the command registers.
In I2C interface, this pad serves as SA0 to distinguish the different address of OLED driver.
16 WRB This is a MPU interface input pad.
When connected to an 8080 MPU, this is active LOW. This pad connects to the 8080 MPU WR signal. The signals on the data bus are latched at the rising edge of the WR signal.
When connected to a 6800 Series MPU: This is the read/write control signal input terminal.
When R/W = “H”: Read.
When R/W = “L”: Write.
17 RDB This is a MPU interface input pad.
When connected to an 8080 series MPU, it is active LOW. This pad is connected to the RD signal of the 8080 series MPU, and the data bus is in an output status when this signal is “L”.
When connected to a 6800 series MPU , this is active HIGH. This is used as an enable clock input of the 6800 series MPU.
When RD = “H”: Enable.
When RD = “L”: Disable.
18 D0 This is an 8-bit bi-directional data bus that connects to an 8-bit or 16-bit standard MPU data bus.
When the serial interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SI). At this time, D2 to D7 are set to high impedance.
When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI). At this time, D2 to D7 are set to high impedance.
19 D1
20 D2
21 D3
22 D4
23 D5
24 D6
25 D7
26 IREF This is a segment current reference pad. A resistor should be connected between this pad and VSS. Set the current at 18.75uA.
27 VCOMH This is a pad for the voltage output high level for common signals.
A capacitor should be connected between this pad and VSS.
28 VPP OLED panel power supply. Generated by internal charge pump.
Connect to capacitor. It could be supplied externally.
29 NC No connection
30 NC No connection



General Specification

ItemDimensionUnit
Dot Matrix 128 x 64 －
Module dimension 26.70 × 19.26 ×1.26 mm
Active Area 21.74 × 10.86 mm
Pixel Size 0.148 × 0.148 mm
Pixel Pitch 0.170 × 0.170 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
Controller IC SH1106
Interface 6800, 8080, SPI, I2C
Size 0.96 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD1 -0.3 3.6 V
Power supply for charge pump circuit VDD2 -0.3 4.8 V
Supply Voltage for Display VPP -0.3 14.5 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD1 － 2.8 3.0 3.3 V
Power supply for charge pump circuit VDD2 － 3.5 3.8 4.2 V
Charge Pump Output Voltage for Display
(Generated by Internal DC/DC)		 Charge Pump
VPP		 － 7.5 8 8.5 V
High Level Input VIH － 0.8xVDD1 － VDD1 V
Low Level Input VIL － VSS － 0.2xVDD1 V
High Level Output VOH － 0.8xVDD1 － VDD1 V
Low Level Output VOL － VSS － 0.2xVDD1 V
Operating Current for VDD2 Display 50% ON IDD2 － － 10 16 mA



FPC options

FPC LengthPINPitchZIF FPC or HOTBAR FPCInterfaceFPC No.Create Date
13 30 0.7 HOTBAR FPC 6800, 8080, 4-Wire SPI, I2C FPC2070003001XXXXX09 20180613
40.95 30 0.5 ZIF  6800, 8080, SPI, I2C FPC2050003011XXXXX23 20190412


SKU: WEO12864W#C02-FC
Brand: Winstar
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
Price
€5.60
€4.10
€4.10
€3.90

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€5.60 excl tax

DESCRIPTION



ZIF FPC version of Graphic OLED display made of 128x64 pixels, diagonal size only 0.96 inch. It is built in with SH1106 controller IC and it communicates via 6800/8080 8-bit parallel, I2C and 4-wire SPI interface, 1/64 duty cycle.

Small COG OLED display which is very thin; lightweight and low power consumption.  It is suitable for handheld instruments, smart meters, voice recorder, wearable device, IoT, etc.  Operating temperatures from -40℃ to +80℃; storage temperatures range from -40℃ to +85℃.



DRAWING

WEO012864C-ZIF - Winstar Display



SPECIFICATIONS



Interface Pin Function

No.SymbolFunction
1 NC No connection
2 C1N Connect to charge pump capacitor.
These pins are not used and should be disconnected when Vpp is supplied externally.
3 C1P
4 C2P Connect to charge pump capacitor.
These pins are not used and should be disconnected when Vpp is supplied externally.
5 C2N
6 VDD2 3.0 – 4.7V power supply pad for Power supply for charge pump circuit.
This pin should be disconnected when VPP is supplied externally
7 NC No connection
8 VSS Ground.
9 VDD1 Power supply input: 1.65 - 3.5V
10 IM0 These are the MPU interface mode select pads.
 808012C68004-wire SPI3-wire SPI
IM0 0 0 0 0 1
IM1 1 1 0 0 0
IM2 1 0 1 0 0
11 IM1
12 IM2
13 CSB This pad is the chip select input. When CSB = “L”, then the chip select becomes active, and data/command I/O is enabled.
14 RESB This is a reset signal input pad. When RES is set to “L”, the settings are initialized. The reset operation is performed by the RES signal level.
15 A0 This is the Data/Command control pad that determines whether the data bits are data or a command.
A0 = “H”: the inputs at D0 to D7 are treated as display data.
A0 = “L”: the inputs at D0 to D7 are transferred to the command registers.
In I2C interface, this pad serves as SA0 to distinguish the different address of OLED driver.
16 WRB This is a MPU interface input pad.
When connected to an 8080 MPU, this is active LOW. This pad connects to the 8080 MPU WR signal. The signals on the data bus are latched at the rising edge of the WR signal.
When connected to a 6800 Series MPU: This is the read/write control signal input terminal.
When R/W = “H”: Read.
When R/W = “L”: Write.
17 RDB This is a MPU interface input pad.
When connected to an 8080 series MPU, it is active LOW. This pad is connected to the RD signal of the 8080 series MPU, and the data bus is in an output status when this signal is “L”.
When connected to a 6800 series MPU , this is active HIGH. This is used as an enable clock input of the 6800 series MPU.
When RD = “H”: Enable.
When RD = “L”: Disable.
18 D0 This is an 8-bit bi-directional data bus that connects to an 8-bit or 16-bit standard MPU data bus.
When the serial interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SI). At this time, D2 to D7 are set to high impedance.
When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI). At this time, D2 to D7 are set to high impedance.
19 D1
20 D2
21 D3
22 D4
23 D5
24 D6
25 D7
26 IREF This is a segment current reference pad. A resistor should be connected between this pad and VSS. Set the current at 18.75uA.
27 VCOMH This is a pad for the voltage output high level for common signals.
A capacitor should be connected between this pad and VSS.
28 VPP OLED panel power supply. Generated by internal charge pump.
Connect to capacitor. It could be supplied externally.
29 NC No connection
30 NC No connection



General Specification

ItemDimensionUnit
Dot Matrix 128 x 64 －
Module dimension 26.70 × 19.26 ×1.26 mm
Active Area 21.74 × 10.86 mm
Pixel Size 0.148 × 0.148 mm
Pixel Pitch 0.170 × 0.170 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
Controller IC SH1106
Interface 6800, 8080, SPI, I2C
Size 0.96 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD1 -0.3 3.6 V
Power supply for charge pump circuit VDD2 -0.3 4.8 V
Supply Voltage for Display VPP -0.3 14.5 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD1 － 2.8 3.0 3.3 V
Power supply for charge pump circuit VDD2 － 3.5 3.8 4.2 V
Charge Pump Output Voltage for Display
(Generated by Internal DC/DC)		 Charge Pump
VPP		 － 7.5 8 8.5 V
High Level Input VIH － 0.8xVDD1 － VDD1 V
Low Level Input VIL － VSS － 0.2xVDD1 V
High Level Output VOH － 0.8xVDD1 － VDD1 V
Low Level Output VOL － VSS － 0.2xVDD1 V
Operating Current for VDD2 Display 50% ON IDD2 － － 10 16 mA



FPC options

FPC LengthPINPitchZIF FPC or HOTBAR FPCInterfaceFPC No.Create Date
13 30 0.7 HOTBAR FPC 6800, 8080, 4-Wire SPI, I2C FPC2070003001XXXXX09 20180613
40.95 30 0.5 ZIF  6800, 8080, SPI, I2C FPC2050003011XXXXX23 20190412


Products specifications
Brand Winstar
Size 0.96"
Resolution 128x64
Active Area (mm) 21.74x10.86
Dot Size 0.17x0.17
Polarizer Anti-glare
Color White
Power supply 3V
Display Interface 6800/8080/SPI/I2C
Display IC Controller SH1106G
Structure COG
Frame No
Touch Panel No touch
Display Connection FPC per ZIF Connector
Pin Nr. 30
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
