WEA9664W#B00-FC

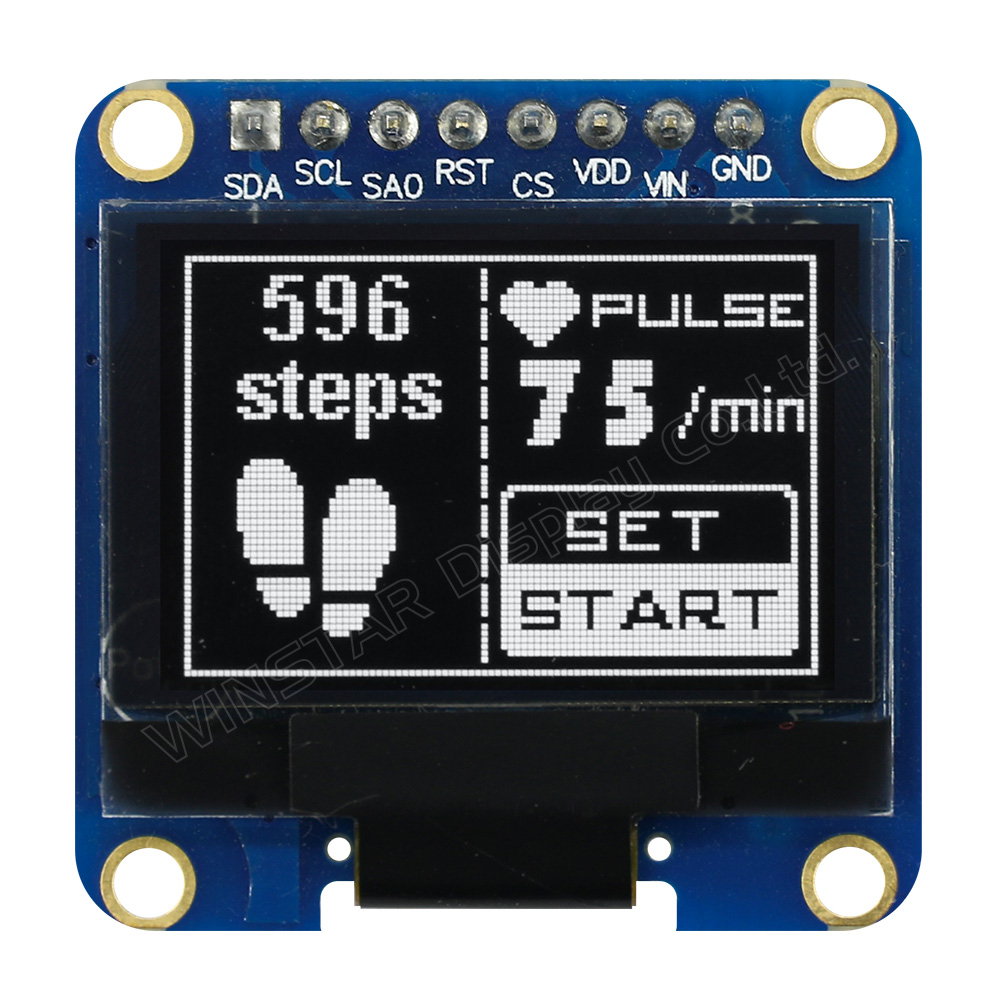

PMOLED 1.1'' Graphic 96x64, White color, COG + PCB, 3V, Interface SPI (Pin), Anti-glare

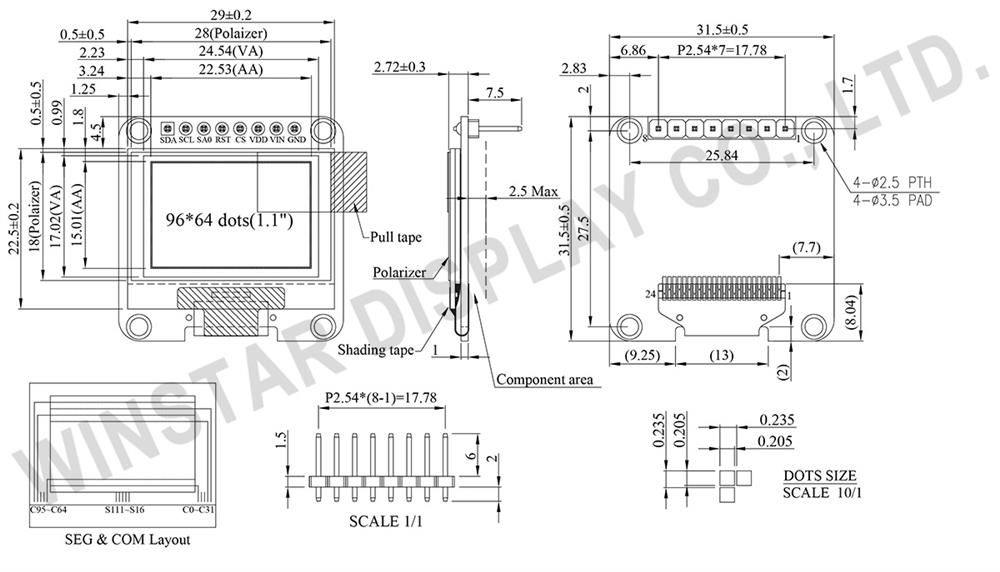

DRAWING

96x64 OLED Display,1.1 OLED - WEA009664B - Winstar Display



SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 SDA When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN.
When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
2 SCL
3 SA0 In I2C mode, this pin acts as SA0 for slave address selection.
When 3-wire serial interface is selected, this pin must be connected to VSS.
4 RST This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin HIGH (i.e. connect to VDD) during normal operation.
5 CS This pin is the chip select input. (active LOW).
6 VDD 3.0V Power supply pin for core logic operation.
7 VIN 5.0V Power supply pin for core logic operation.
8 GND This is a ground pin.



Mechanical Data

ItemDimensionUnit
Dot Matrix 96 × 64 Dots
Module dimension 31.5 × 31.5 × 2.72 mm
Active Area 22.53 × 15.01 mm
Pixel Size 0.205 × 0.205 mm
Pixel Pitch 0.235 × 0.235 mm
Display Mode Passive Matrix
Display Color Monochrome
Gray scale 4 bits
Drive Duty 1/64 Duty
IC SSD1327
Interface SPI ,Optional I2C
Size 1.1 inch



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD 2.8 3.0 3.2 V
Supply Voltage for Logic VIN 4.8 5.0 5.2 V
Supply Voltage for Display VCC 7.5 8.0 8.5 V
Input High Volt. VIH 0.8×VDD VDDIO V
Input Low Volt. VIL 0 0.2×VDD V
Output High Volt. VOH 0.9×VDD VDDIO V
Output Low Volt. VOL 0 0.1×VDD V
50% Check Board operating Current IDD VDD=3.0V 55 100 mA



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD 1.65 3.30 V
Supply Voltage for Logic VIN 4.0 6.0 V
Supply Voltage for Display VCC 0 16.0 V
Operating Temperature TOP -40 80 °C
Storage Temperature TSTG -40 85 °C


SKU: WEA9664W#B00-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
50+
100+
Price
€11.10
€8.20
€8.00
€7.30
€6.90

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€11.10 excl tax

DRAWING

96x64 OLED Display,1.1 OLED - WEA009664B - Winstar Display



SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 SDA When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN.
When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
2 SCL
3 SA0 In I2C mode, this pin acts as SA0 for slave address selection.
When 3-wire serial interface is selected, this pin must be connected to VSS.
4 RST This pin is reset signal input. When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin HIGH (i.e. connect to VDD) during normal operation.
5 CS This pin is the chip select input. (active LOW).
6 VDD 3.0V Power supply pin for core logic operation.
7 VIN 5.0V Power supply pin for core logic operation.
8 GND This is a ground pin.



Mechanical Data

ItemDimensionUnit
Dot Matrix 96 × 64 Dots
Module dimension 31.5 × 31.5 × 2.72 mm
Active Area 22.53 × 15.01 mm
Pixel Size 0.205 × 0.205 mm
Pixel Pitch 0.235 × 0.235 mm
Display Mode Passive Matrix
Display Color Monochrome
Gray scale 4 bits
Drive Duty 1/64 Duty
IC SSD1327
Interface SPI ,Optional I2C
Size 1.1 inch



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD 2.8 3.0 3.2 V
Supply Voltage for Logic VIN 4.8 5.0 5.2 V
Supply Voltage for Display VCC 7.5 8.0 8.5 V
Input High Volt. VIH 0.8×VDD VDDIO V
Input Low Volt. VIL 0 0.2×VDD V
Output High Volt. VOH 0.9×VDD VDDIO V
Output Low Volt. VOL 0 0.1×VDD V
50% Check Board operating Current IDD VDD=3.0V 55 100 mA



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD 1.65 3.30 V
Supply Voltage for Logic VIN 4.0 6.0 V
Supply Voltage for Display VCC 0 16.0 V
Operating Temperature TOP -40 80 °C
Storage Temperature TSTG -40 85 °C


Products specifications
Brand Winstar
Size 1.1"
Resolution 96x64
Active Area (mm) 22.53x15.01
Dot Size 0.20x0.20
Polarizer Anti-glare
Color White
Power supply 3V
Interface SPI
Built-in Controller SSD1327
Structure COG + PCB
Frame Yes
Touch Panel No touch
Display Connection Pin
Pin Nr. 8
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 1.1"
Resolution 96x64
Active Area (mm) 22.53x15.01
Dot Size 0.20x0.20
Polarizer Anti-glare
Color White
Power supply 3V
Interface SPI
Built-in Controller SSD1327
Structure COG + PCB
Frame Yes
Touch Panel No touch
Display Connection Pin
Pin Nr. 8
Pin Pitch 2.54mm
Preferred - Not Preferred Not Preferred
