WEG10016B#JP5N00100-FC

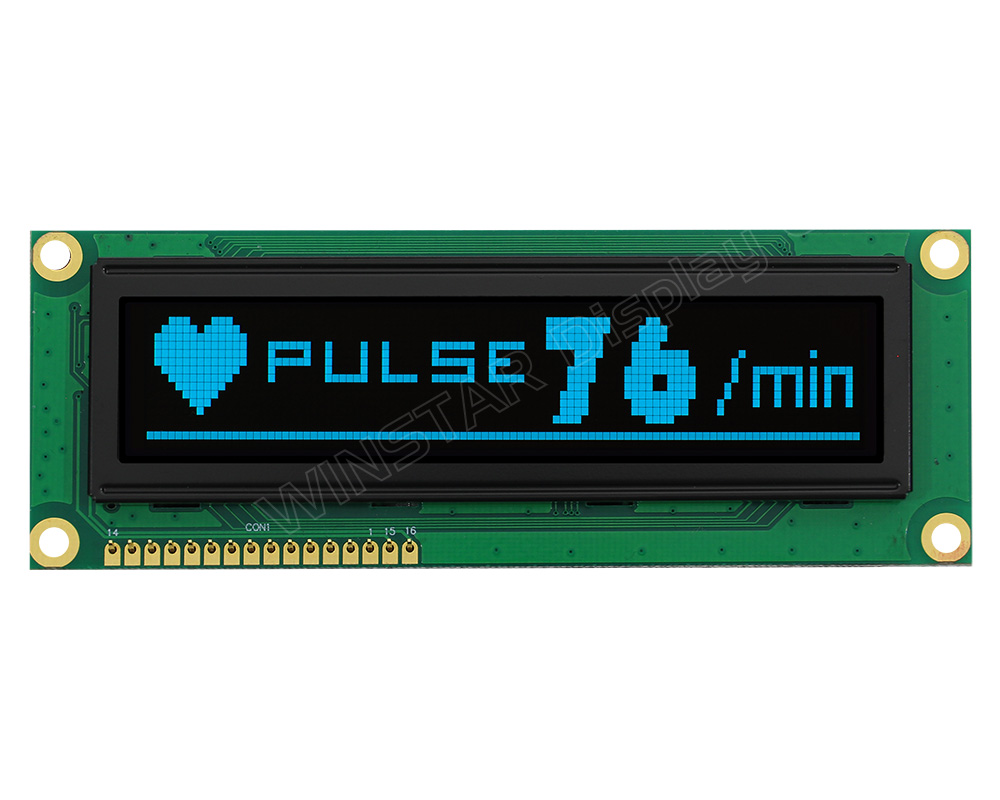

PMOLED 3.84'' Graphic 100x16, Blue color, COB, 5V, Interface 6800, WS0010-TX IC, Frame

DESCRIPTION

New 2021 version with WS0010-TX IC // Previus version with IC WS0010 EOL P/N WEG10016B#J00-FC in 'Related Product' section on the bottom page

Monochrome Graphic OLED display module which has a very high contrast ratio with an extremely dark background versus the lit-up pixels on the display. This 3.84 inch monochrome 100x16 passive matrix OLED display module features a very wide viewing angle up to 175°. It is COB structure OLED, it is built in with WS0010-TX IC, default 6800 interface, optional for 8080 and SPI interface.

The supply voltage for logic is 5V, driver duty 1/16, its operating temperature is -40℃~+70℃; and storage temperature ranges are -40℃~+85℃.





DRAWING

100x16, 3.84", COB OLED Display Module - WEG010016J

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 NC
16 NC



Mechanical Data

ItemDimensionUnit
Dot Matrix 100×16 Dots
Module dimension 122.0 × 44.0 × 10.0(MAX) mm
View area 98.00 × 21.00 mm
Active area 95.94 × 17.86 mm
Dot size 0.90 × 1.06 mm
Dot pitch 0.96 × 1.12 mm
Panel Type OLED , Monochrome
Duty 1/16
IC WS0010-TX
Interface 6800 / 8080 / SPI
Size 3.84 inch



Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +70 °C
Storage Temperature TST -40 +85 °C
Supply Voltage For Logic VDD-VSS -0.3 5.3 V



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS 4.8 5.0 5.3 V
Input High Volt. VIH 0.8xVDD VDD V
Input Low Volt. VIL GND 0.2xVDD V
Output High Volt. VOH IOH=-0.5mA 0.8xVDD VDD V
Output Low Volt. VOL IOL=0.5mA GND 0.2xVDD V
50% Check Board Operating Current IDD VDD=5V 50 70 mA

SKU: WEG10016B#JP5N00100-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
Price
€27.30
€21.80
€21.40

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€27.30 excl tax

DESCRIPTION

New 2021 version with WS0010-TX IC // Previus version with IC WS0010 EOL P/N WEG10016B#J00-FC in 'Related Product' section on the bottom page

Monochrome Graphic OLED display module which has a very high contrast ratio with an extremely dark background versus the lit-up pixels on the display. This 3.84 inch monochrome 100x16 passive matrix OLED display module features a very wide viewing angle up to 175°. It is COB structure OLED, it is built in with WS0010-TX IC, default 6800 interface, optional for 8080 and SPI interface.

The supply voltage for logic is 5V, driver duty 1/16, its operating temperature is -40℃~+70℃; and storage temperature ranges are -40℃~+85℃.





DRAWING

100x16, 3.84", COB OLED Display Module - WEG010016J

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 NC
16 NC



Mechanical Data

ItemDimensionUnit
Dot Matrix 100×16 Dots
Module dimension 122.0 × 44.0 × 10.0(MAX) mm
View area 98.00 × 21.00 mm
Active area 95.94 × 17.86 mm
Dot size 0.90 × 1.06 mm
Dot pitch 0.96 × 1.12 mm
Panel Type OLED , Monochrome
Duty 1/16
IC WS0010-TX
Interface 6800 / 8080 / SPI
Size 3.84 inch



Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +70 °C
Storage Temperature TST -40 +85 °C
Supply Voltage For Logic VDD-VSS -0.3 5.3 V



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS 4.8 5.0 5.3 V
Input High Volt. VIH 0.8xVDD VDD V
Input Low Volt. VIL GND 0.2xVDD V
Output High Volt. VOH IOH=-0.5mA 0.8xVDD VDD V
Output Low Volt. VOL IOL=0.5mA GND 0.2xVDD V
50% Check Board Operating Current IDD VDD=5V 50 70 mA

Products specifications
Brand Winstar
Size 3.84"
Resolution 100x16
Active Area (mm) 95.94x17.86
Dot Size 0.90x1.06
Polarizer Glare
Color Blue
Power supply 5V
Display Interface 6800 (option 8080/SPI)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~70
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
