WEG10016W#AP5N00100-FC

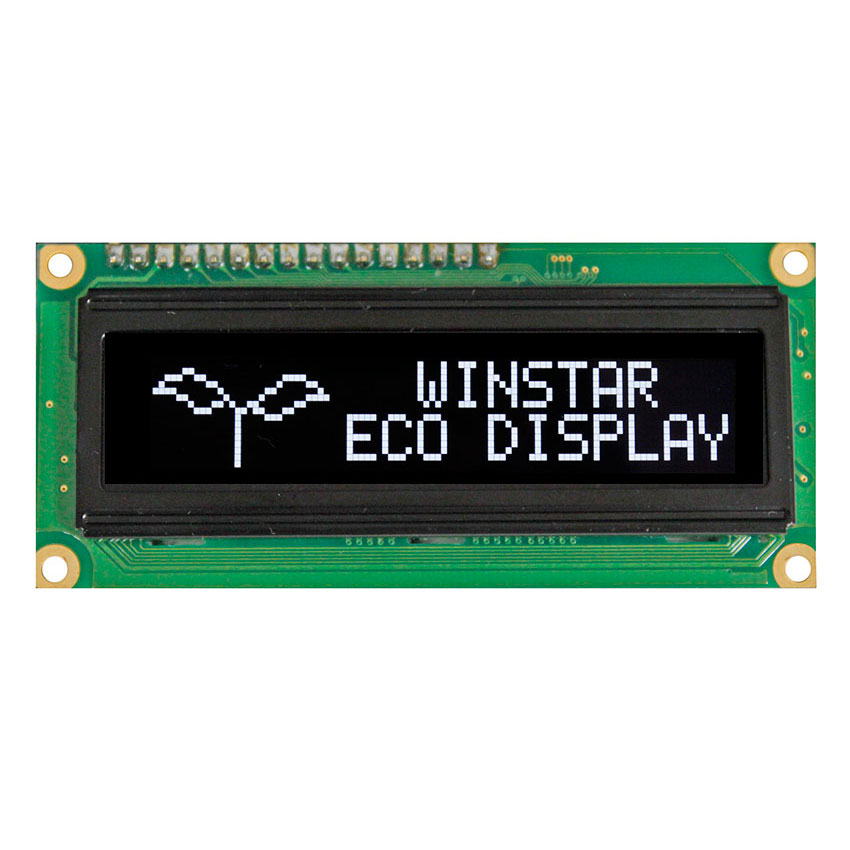

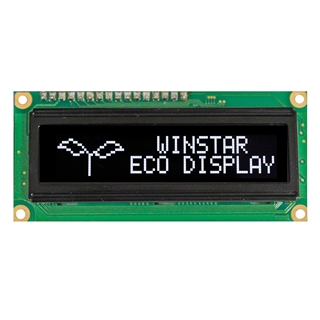

PMOLED 2.4'' Graphic 100x16, White color, COB, 5V, Interface 6800, WS0010-TX IC, Frame

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEG10016W#A00-FC in 'Related Product' section on the bottom page

The Organic Light-Emitting Diode (OLED) is a new generation technology, brighter and clearer images with more agile responding speed. This OLED 2.4" OLED display is made of 100 x 16 dots individual mono color. This OLED module is lightweight, low power and small, there are different interfaces optional; it is default 6800, available options 8080 and SPI. The module is made of COB OLEDs have the advantages of easily fixed modules on customers’ applications because of having PCB board on it.

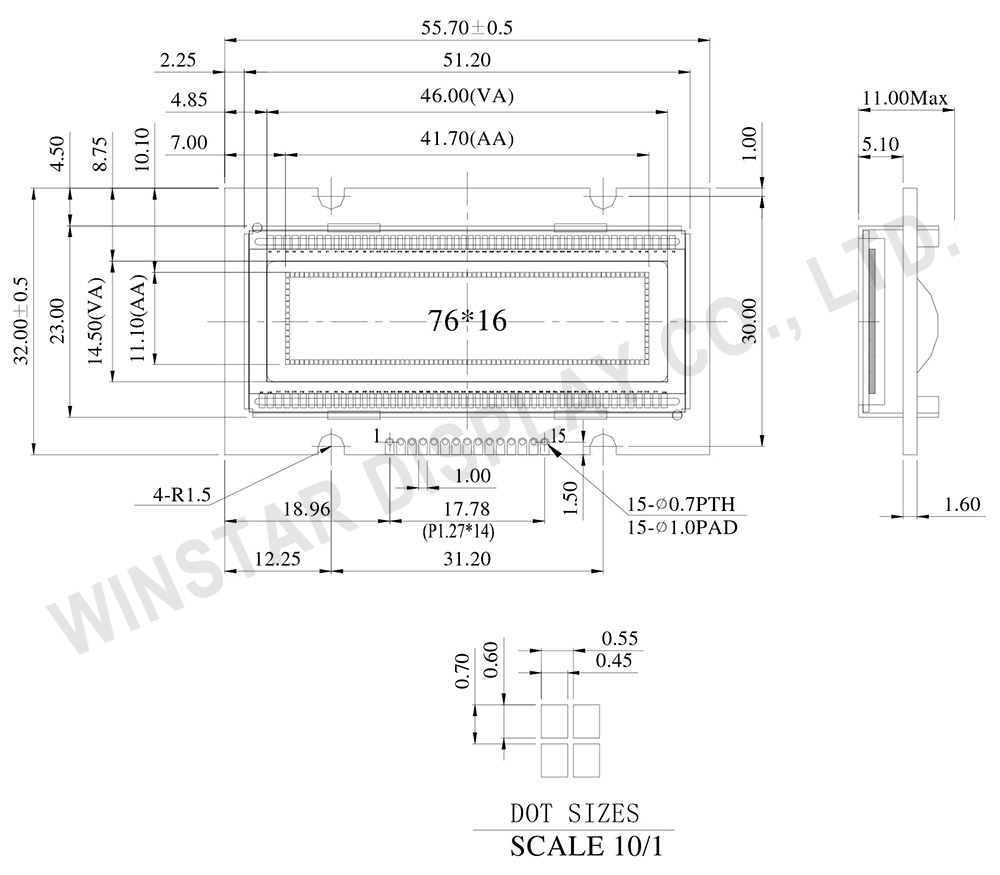

DRAWING

Winstar OLED 2.4, Organic Light Emitting Diode Display - WEG010016A

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground Pin
2 VDD Voltage for logic
3 NC No Connection
4 RS Register Select
5 R/W Read/Write Control
6 E Chip Enable Signal
7~14 DB0~DB7 Data Bus
15~16 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 80.0 × 36.0 mm
Viewing area 66.0 × 16.0 mm
Active area 59.95 × 11.15 mm
Dot pitch 0.60 × 0.70 mm
Dot size 0.55 × 0.65 mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD --- 4.8 5.0 5.3 V




SKU: WEG10016W#AP5N00100-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€15.70
€11.50
€11.30
€10.90

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€15.70 excl tax

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEG10016W#A00-FC in 'Related Product' section on the bottom page

The Organic Light-Emitting Diode (OLED) is a new generation technology, brighter and clearer images with more agile responding speed. This OLED 2.4" OLED display is made of 100 x 16 dots individual mono color. This OLED module is lightweight, low power and small, there are different interfaces optional; it is default 6800, available options 8080 and SPI. The module is made of COB OLEDs have the advantages of easily fixed modules on customers’ applications because of having PCB board on it.



DRAWING

Winstar OLED 2.4, Organic Light Emitting Diode Display - WEG010016A

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground Pin
2 VDD Voltage for logic
3 NC No Connection
4 RS Register Select
5 R/W Read/Write Control
6 E Chip Enable Signal
7~14 DB0~DB7 Data Bus
15~16 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 80.0 × 36.0 mm
Viewing area 66.0 × 16.0 mm
Active area 59.95 × 11.15 mm
Dot pitch 0.60 × 0.70 mm
Dot size 0.55 × 0.65 mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD --- 4.8 5.0 5.3 V




Products specifications
Brand Winstar
Size 2.4"
Resolution 100x16
Active Area (mm) 59.95x11.15
Dot Size 0.55x0.65
Polarizer Glare
Color White
Power supply 5V
Display Interface 6800 (option 8080/SPI)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
