New 2021 version with WS0010-TX IC // Previous version with IC WS0010 P/N WEG10016L#J00-FC

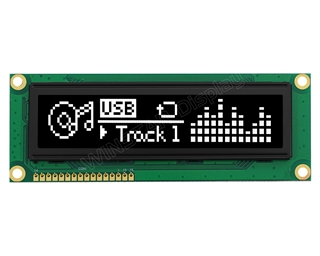

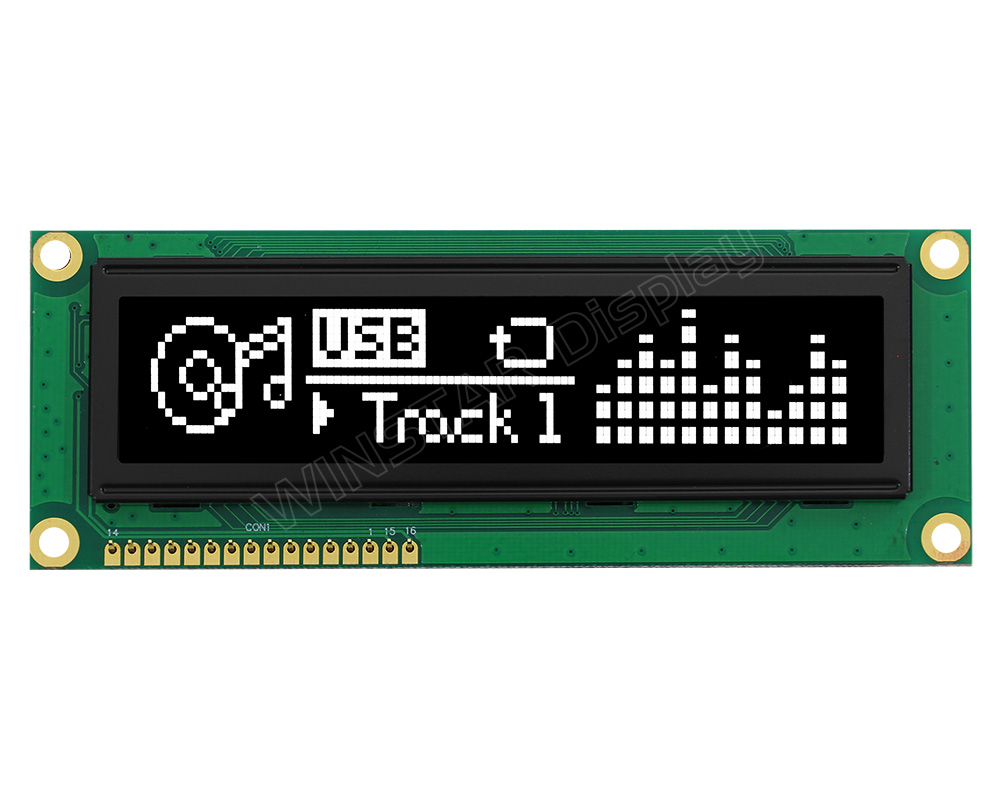

Monochrome Graphic OLED display module which has a very high contrast ratio with an extremely dark background versus the lit-up pixels on the display. This 3.84 inch monochrome 100x16 passive matrix OLED display module features a very wide viewing angle up to 175°. It is COB structure OLED, it is built in with WS0010-TX IC, default 6800 interface, optional for 8080 and SPI interface.
The supply voltage for logic is 5V, driver duty 1/16, its operating temperature is -40℃~+70℃; and storage temperature ranges are -40℃~+85℃.
For quantities above 25 pcs pls send your enquiry to firstname.lastname@example.org or call +39 0332 1888005
