New 2021 version with WS0010-TX IC // Previous version with IC WS0010 P/N WEG10032L#B08-FC

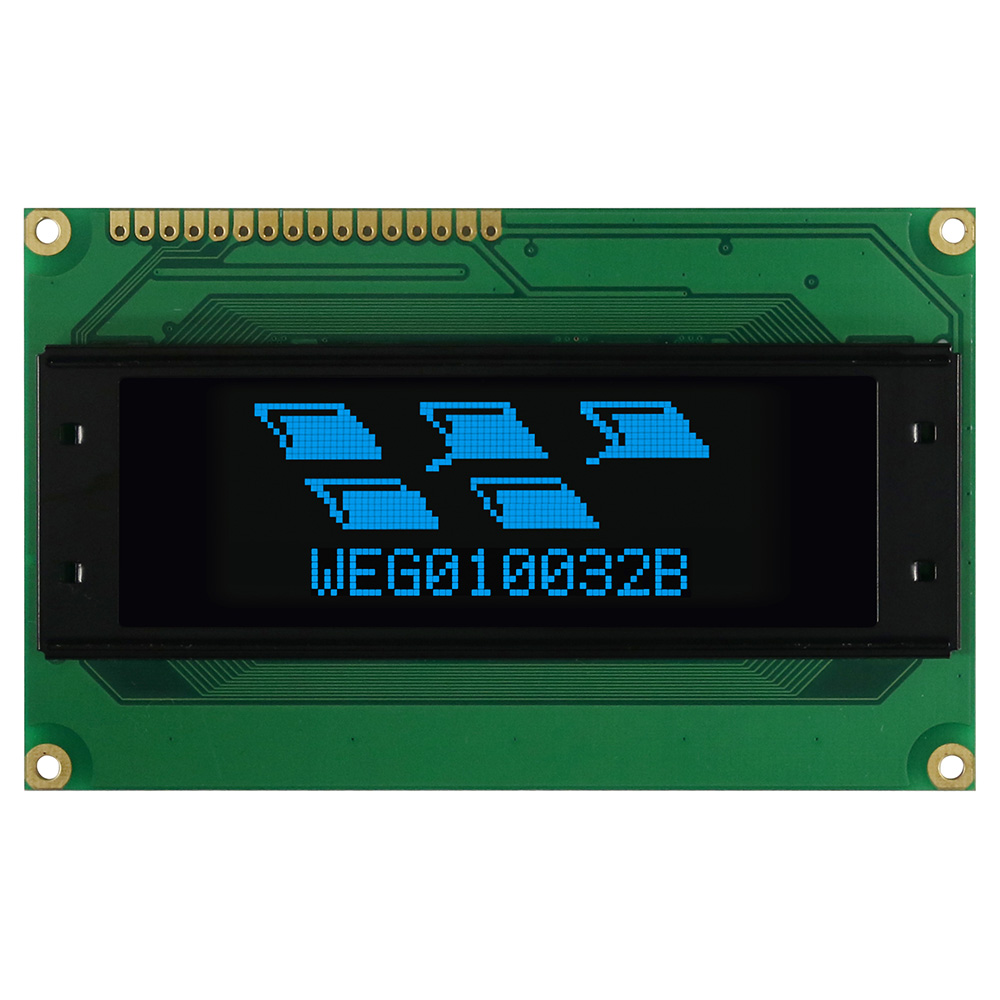

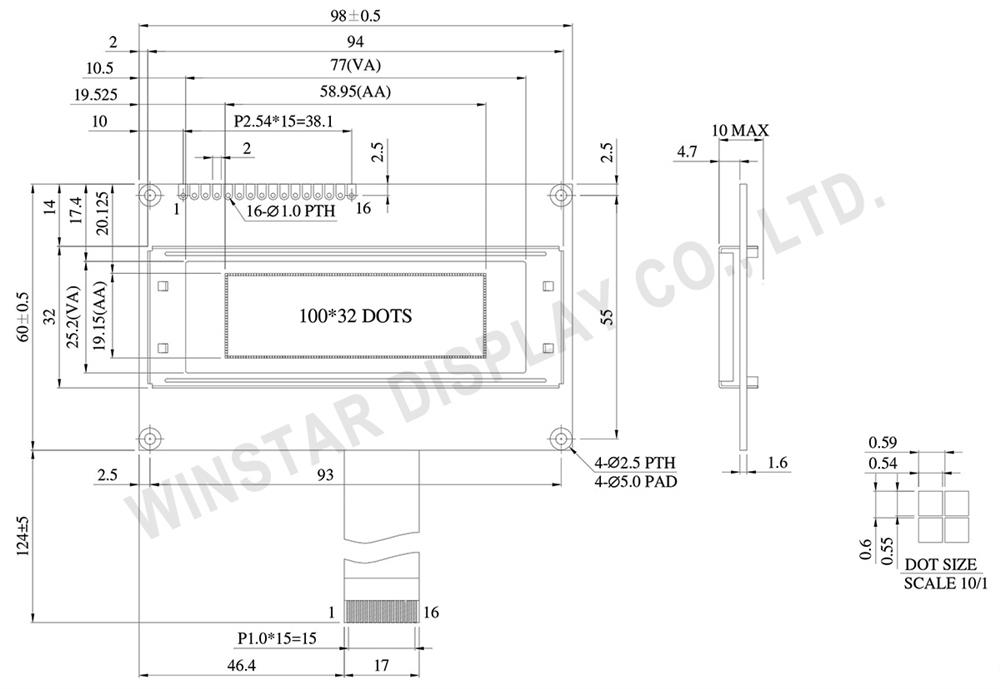

This OLED displays has the outline size of 98.00 x 60.00 mm, VA size of 77.00 x 25.20 mm. This OLED is the equivalent Graphic type of WEH2004x#B00-FC. If your applications need Graphic mode to display the contents, you can choose thi version which featured with display format of 100 x 32 dots. The typical power supply of this series is 5 voltage and the interface is parallel 4/8 bit 6800 (optional 8080 or serial SPI). The COB OLEDs have the advantages of easily fixed modules on customers’ applications because of having PCB board on it.
For quantities above 25 pcs pls send your enquiry to email@example.com or call +39 0332 1888005
