WEG10032L#AP5N00100-FC

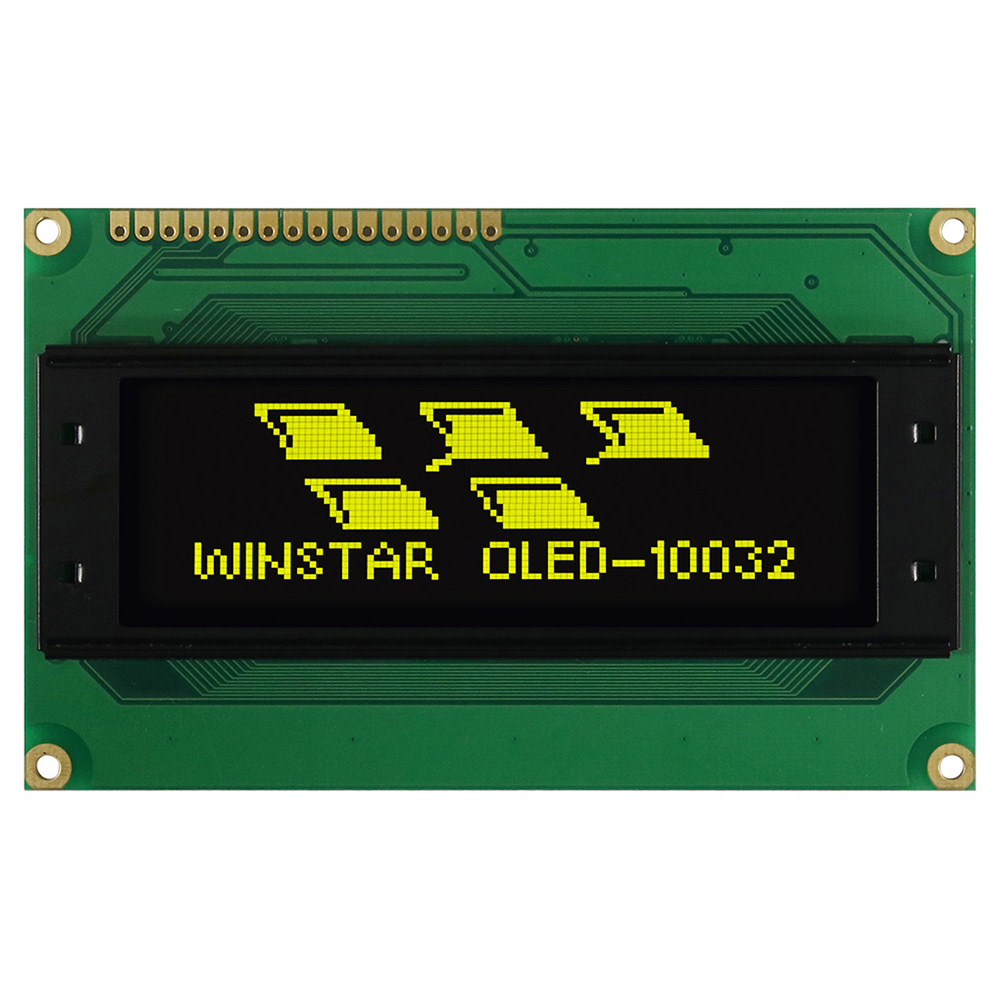

PMOLED 2.44'' Graphic 100x32, Yellow color, COB, 5V, Interface 6800, WS0010-TX IC, Frame

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEG10032L#A08-FC in 'Related Product' section on the bottom page

The 2.44" OLED displays has the same outline size of 98.00 x 60.00 mm, VA size of 77.00 x 25.20 mm and pin out as Winstar STN LCD standard item of WH2004A. It the equivalent Graphic type of WEH2004x#A00-fc. If your applications need Graphic mode to display the contents, you can choose this model which featured with display format of 100 x 32 dots. The typical power supply of this series is 5 voltage and the interface is parallel 4 /8 bit 6800 (optional 8080 or serial SPI).

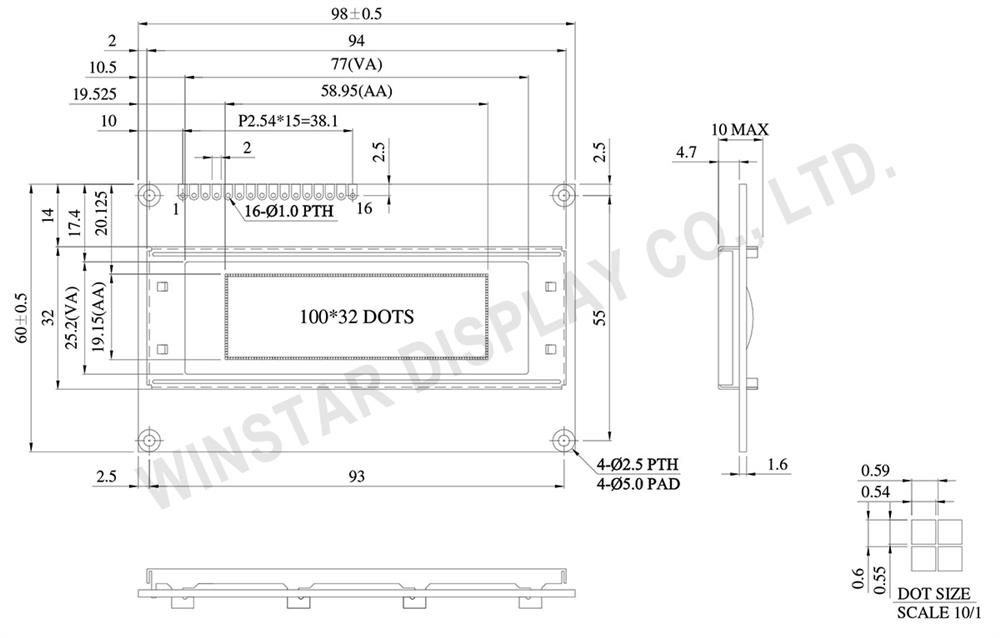

DRAWING

WEG010032A - 2.44" OLED Graphic 100x32



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC No connect
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 CS1 Chip1 select input pin
16 CS2 Chip2 select input pin



Mechanical Data

ItemDimensionUnit
Dot Matrix 100 × 32 Dots
Module dimension 98.0 × 60.0 × 10.0(MAX) mm
View area 77.0 × 25.20 mm
Active area 58.95 × 19.15 mm
Dot size 0.54 × 0.55 mm
Dot pitch 0.59 × 0.60 mm
Panel Type OLED, Monochrome
Duty 1/16



Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C
Supply Voltage For Logic VDD-VSS -0.3 5.3 V



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS 4.8 5.0 5.3 V
Input High Volt. VIH 0.8 VDD VDD V
Input Low Volt. VIL GND 0.2 VDD V
Output High Volt. VOH IOH=-0.5mA 0.8 VDD VDD V
Output Low Volt. VOL IOL=0.5mA GND 0.2 VDD V
50% Check Board
Operating Current
IDD VDD=5V 65 70 75 mA


SKU: WEG10032L#AP5N00100-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
Price
€26.90
€21.50
€20.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€26.90 excl tax

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEG10032L#A08-FC in 'Related Product' section on the bottom page

The 2.44" OLED displays has the same outline size of 98.00 x 60.00 mm, VA size of 77.00 x 25.20 mm and pin out as Winstar STN LCD standard item of WH2004A. It the equivalent Graphic type of WEH2004x#A00-fc. If your applications need Graphic mode to display the contents, you can choose this model which featured with display format of 100 x 32 dots. The typical power supply of this series is 5 voltage and the interface is parallel 4 /8 bit 6800 (optional 8080 or serial SPI).



DRAWING

WEG010032A - 2.44" OLED Graphic 100x32



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC No connect
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 CS1 Chip1 select input pin
16 CS2 Chip2 select input pin



Mechanical Data

ItemDimensionUnit
Dot Matrix 100 × 32 Dots
Module dimension 98.0 × 60.0 × 10.0(MAX) mm
View area 77.0 × 25.20 mm
Active area 58.95 × 19.15 mm
Dot size 0.54 × 0.55 mm
Dot pitch 0.59 × 0.60 mm
Panel Type OLED, Monochrome
Duty 1/16



Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C
Supply Voltage For Logic VDD-VSS -0.3 5.3 V



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS 4.8 5.0 5.3 V
Input High Volt. VIH 0.8 VDD VDD V
Input Low Volt. VIL GND 0.2 VDD V
Output High Volt. VOH IOH=-0.5mA 0.8 VDD VDD V
Output Low Volt. VOL IOL=0.5mA GND 0.2 VDD V
50% Check Board
Operating Current
IDD VDD=5V 65 70 75 mA


Products specifications
Brand Winstar
Size 2.44"
Resolution 100x32
Active Area (mm) 58.95x19.15
Dot Size 0.54x0.55
Polarizer Glare
Color Yellow
Power supply 5V
Display Interface 6800 (option 8080/SPI)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
