WEG7616G#AP3N00100-FC

Picture of WEG7616G#AP3N00100-FC Picture of WEG7616G#AP3N00100-FC

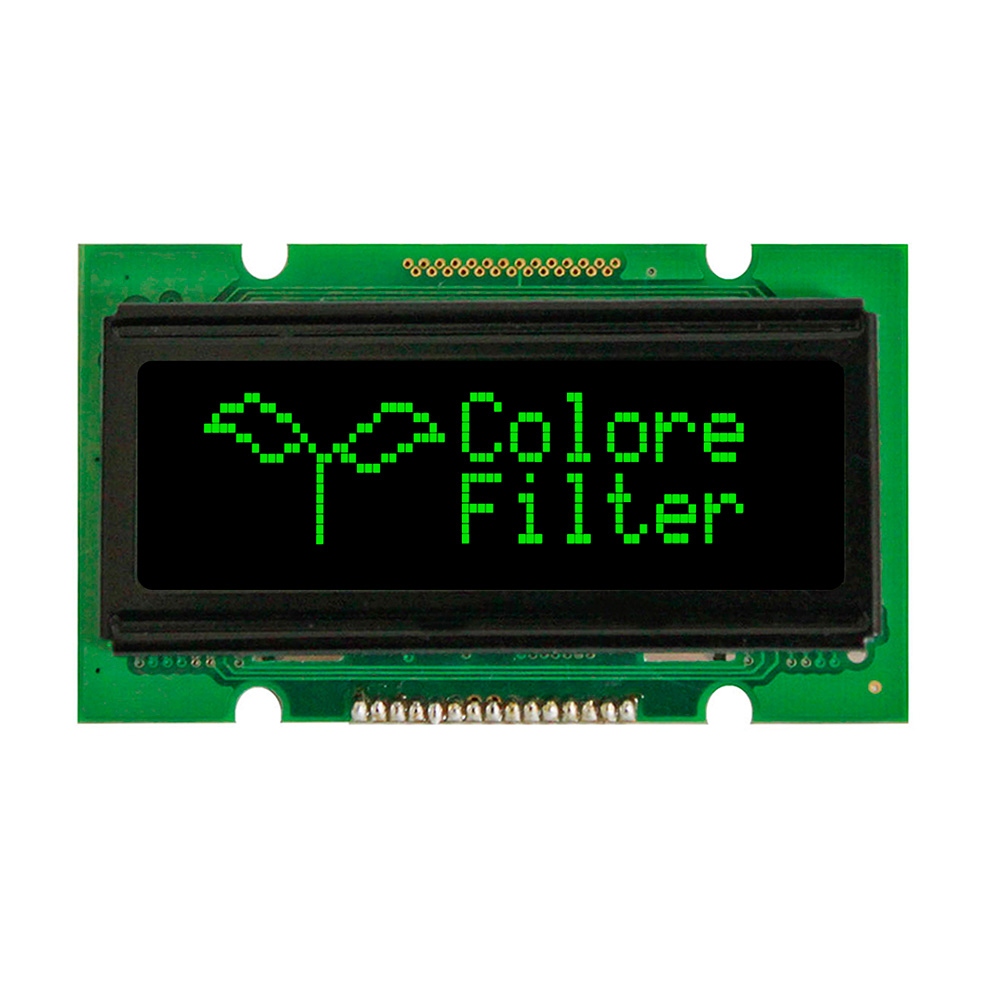

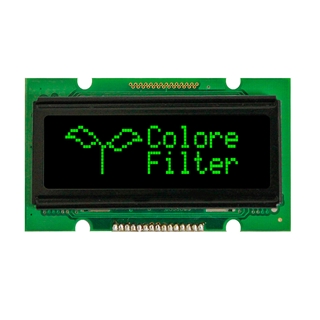

PMOLED 1.7'' Graphic 76x16, Green color, COB, 3.3V, Interface 6800, WS0010-TX IC, Frame

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010

When you need an OLED small display with much brighter, much higher contrast, wider viewing angles and lower current consumption, the Winstar display OLED COB graphic item is a good choose. This 1.7” OLED module is built-in WS0010-TX IC which has outline dimension of 55.7 x 32 mm and visible portion of the OLED measures 1.7" diagonal and contains 76x16 pixels same as Winstar STN LCD WH1202A. It is able to communicate using either an 8 bit or 4 bit parallel microcontroller interface. This model OLED display has different interfaces available, default 6800 or optional 8080 and SPI



DRAWING

1.7" OLED, OLED Small Display, OLED 76x16 - WEG007616A



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC －
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 NC －



Mechanical Data

ItemDimensionUnit
Dot Matrix 76 x 16 Dots －
Module dimension 55.7 x 32.0 x 11.0(MAX) mm
View area 46.0 x 14.5 mm
Active area 41.7 x 11.1 mm
Dot size 0.45 x 0.60 mm
Dot pitch 0.55 x 0.70 mm
Panel Type OLED , Monochrme
Duty 1/16
IC WS0010-TX
Interface 6800, option 8080, SPI
Size 1.7 inch



Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS －   3.3   V


SKU: WEG7616G#AP3N00100-FC
Brand: Winstar
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
Price
€12.90
€9.40
€9.10
€8.80

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€12.90 excl tax

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010

When you need an OLED small display with much brighter, much higher contrast, wider viewing angles and lower current consumption, the Winstar display OLED COB graphic item is a good choose. This 1.7” OLED module is built-in WS0010-TX IC which has outline dimension of 55.7 x 32 mm and visible portion of the OLED measures 1.7" diagonal and contains 76x16 pixels same as Winstar STN LCD WH1202A. It is able to communicate using either an 8 bit or 4 bit parallel microcontroller interface. This model OLED display has different interfaces available, default 6800 or optional 8080 and SPI



DRAWING

1.7" OLED, OLED Small Display, OLED 76x16 - WEG007616A



SPECIFICATIONS



Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC －
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 NC －



Mechanical Data

ItemDimensionUnit
Dot Matrix 76 x 16 Dots －
Module dimension 55.7 x 32.0 x 11.0(MAX) mm
View area 46.0 x 14.5 mm
Active area 41.7 x 11.1 mm
Dot size 0.45 x 0.60 mm
Dot pitch 0.55 x 0.70 mm
Panel Type OLED , Monochrme
Duty 1/16
IC WS0010-TX
Interface 6800, option 8080, SPI
Size 1.7 inch



Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS －   3.3   V


Products specifications
Brand Winstar
Size 1.7"
Resolution 76x16
Active Area (mm) 41.70x11.10
Dot Size 0.45x0.60
Polarizer Glare
Color Green
Power supply 3.3V
Display Interface 6800 (option 8080/SPI)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 15
Pin Pitch 1.27mm
Preferred - Not Preferred Not Preferred
Download
