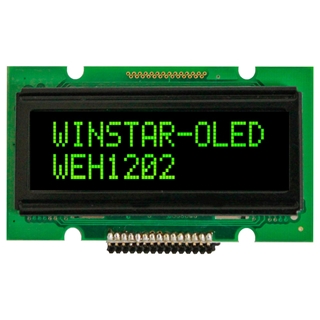

WEH1202G#AP3N00100-FC

PMOLED 1.6'' 12x2, Green color, COB, 3.3V, Interface 6800, WS0010-TX IC, Frame

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010

The 12x2 OLED displays has the same outline size, VA size and pin out as Winstar STN LCD item no. WH1202A. This OLED is a Winstar OLED 12x2 standard Characters module. There are different interfaces optional; it is default 6800, available options 8080 and SPI. All Winstar standard OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).



DRAWING

Winstar 12x2 OLED Character - WEH001202A



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 NC



Mechanical Data

ItemDimensionUnit
Number of Characters 12 characters x 2 Lines
Module dimension 55.7 x 32.0 x 11.0(MAX) mm
View area 46.0 x 14.5 mm
Active area 38.95 x 11.80 mm
Dot size 0.45 x 0.60 mm
Dot pitch 0.55 x 0.70 mm
Character size 2.65 x 5.5 mm
Character pitch 3.3 x 6.3 mm
Panel type OLED, Monochrome
Duty 1/16
IC WS0010-TX
Interface 6800, option 8080, SPI
Size 1.60 inch



Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS   3.3   V



SKU: WEH1202G#AP3N00100-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€12.50
€9.20
€8.80
€8.50

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€12.50 excl tax

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010

The 12x2 OLED displays has the same outline size, VA size and pin out as Winstar STN LCD item no. WH1202A. This OLED is a Winstar OLED 12x2 standard Characters module. There are different interfaces optional; it is default 6800, available options 8080 and SPI. All Winstar standard OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).



DRAWING

Winstar 12x2 OLED Character - WEH001202A



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 NC



Mechanical Data

ItemDimensionUnit
Number of Characters 12 characters x 2 Lines
Module dimension 55.7 x 32.0 x 11.0(MAX) mm
View area 46.0 x 14.5 mm
Active area 38.95 x 11.80 mm
Dot size 0.45 x 0.60 mm
Dot pitch 0.55 x 0.70 mm
Character size 2.65 x 5.5 mm
Character pitch 3.3 x 6.3 mm
Panel type OLED, Monochrome
Duty 1/16
IC WS0010-TX
Interface 6800, option 8080, SPI
Size 1.60 inch



Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS   3.3   V



Products specifications
Brand Winstar
Size 1.6"
Resolution 12x2
Active Area (mm) 38.95x11.80
Dot Size 0.45x0.60
Polarizer Glare
Color Green
Power supply 3.3V
Display Interface 6800 (option 8080/SPI)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 15
Pin Pitch 1.27mm
Preferred - Not Preferred Preferred
