WEH1202L#AP5N00100-FC

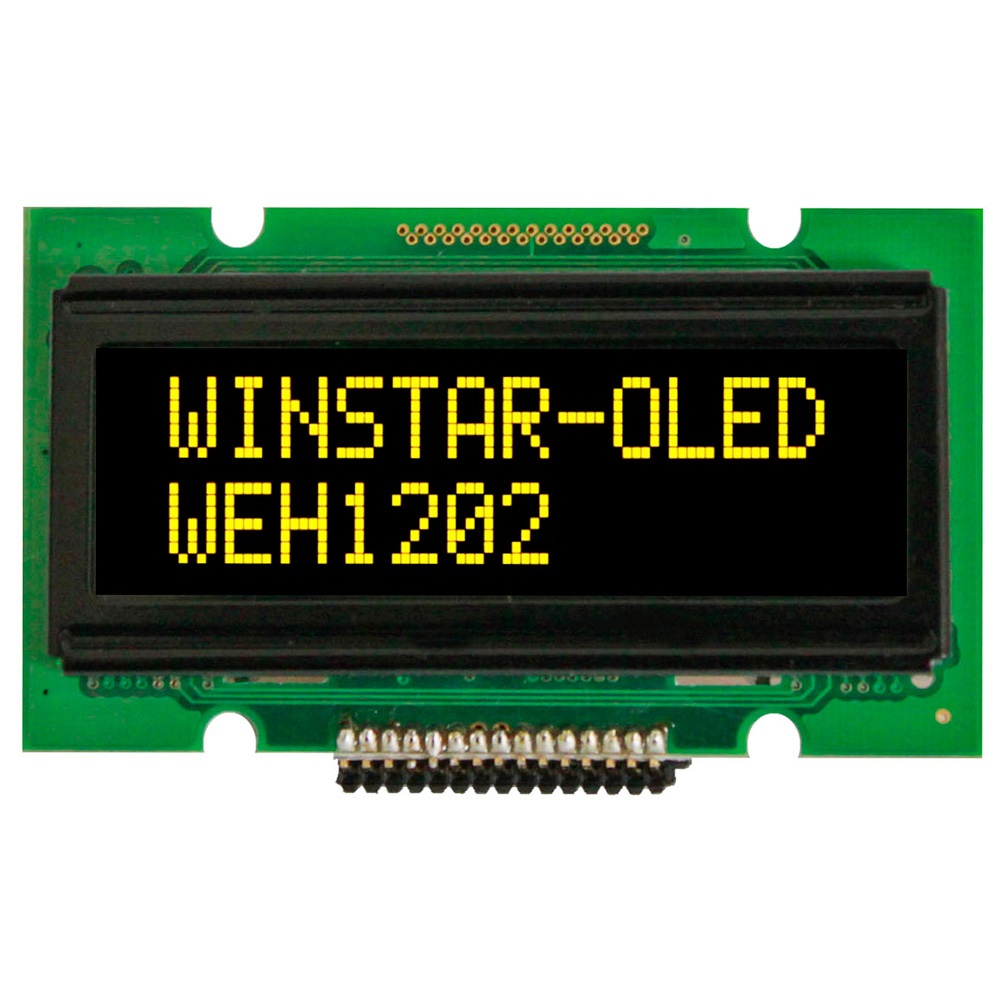

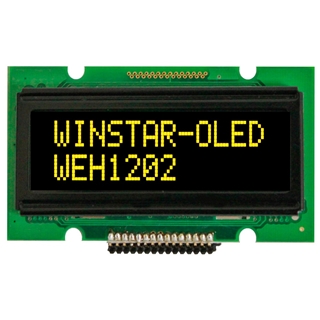

Picture of WEH1202L#AP5N00100-FC Picture of WEH1202L#AP5N00100-FC
PMOLED 1.6'' 12x2, Yellow color, COB, 5V, Interface 6800, WS0010-TX IC, Frame

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEH1202L#A00-FC in 'Related Product' section on the bottom page

The 12x2 OLED displays has the same outline size, VA size and pin out as Winstar STN LCD item no. WH1202A. This OLED is a Winstar OLED 12x2 standard Characters module. There are different interfaces optional; it is default 6800, available options 8080 and SPI. All Winstar standard OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).



DRAWING

Winstar 12x2 OLED Character - WEH001202A



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC －
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 NC －

Mechanical Data

ItemDimensionUnit
Number of Characters 12 characters x 2 Lines －
Module dimension 55.7 x 32.0 x 11.0(MAX) mm
View area 46.0 x 14.5 mm
Active area 38.95 x 11.80 mm
Dot size 0.45 x 0.60 mm
Dot pitch 0.55 x 0.70 mm
Character size 2.65 x 5.5 mm
Character pitch 3.3 x 6.3 mm
Panel type OLED, Monochrome
Duty 1/16
IC WS0010-TX
Interface 6800, option 8080, SPI
Size 1.60 inch

Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C
Supply Voltage For Logic VDD-VSS -0.3 5.3 V

Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS － 4.8 5.0 5.3 V
Input High Volt. VIH － 0.8xVDD － VDD V
Input Low Volt. VIL － GND － 0.2xVDD V
Output High Volt. VOH IOH=-0.5mA 0.8xVDD － VDD V
Output Low Volt. VOL IOL=0.5mA GND － 0.2xVDD V
50% Check Board Operating Current IDD VDD=5V － 30 38 mA



SKU: WEH1202L#AP5N00100-FC
Brand: Winstar
Available: No
Be the first to review this product
Price Breaks
Quantity
1+
5+
10+
25+
Price
€10.90
€8.00
€7.80
€7.60

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€10.90 excl tax

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEH1202L#A00-FC in 'Related Product' section on the bottom page

The 12x2 OLED displays has the same outline size, VA size and pin out as Winstar STN LCD item no. WH1202A. This OLED is a Winstar OLED 12x2 standard Characters module. There are different interfaces optional; it is default 6800, available options 8080 and SPI. All Winstar standard OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).



DRAWING

Winstar 12x2 OLED Character - WEH001202A



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC －
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 NC －

Mechanical Data

ItemDimensionUnit
Number of Characters 12 characters x 2 Lines －
Module dimension 55.7 x 32.0 x 11.0(MAX) mm
View area 46.0 x 14.5 mm
Active area 38.95 x 11.80 mm
Dot size 0.45 x 0.60 mm
Dot pitch 0.55 x 0.70 mm
Character size 2.65 x 5.5 mm
Character pitch 3.3 x 6.3 mm
Panel type OLED, Monochrome
Duty 1/16
IC WS0010-TX
Interface 6800, option 8080, SPI
Size 1.60 inch

Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C
Supply Voltage For Logic VDD-VSS -0.3 5.3 V

Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS － 4.8 5.0 5.3 V
Input High Volt. VIH － 0.8xVDD － VDD V
Input Low Volt. VIL － GND － 0.2xVDD V
Output High Volt. VOH IOH=-0.5mA 0.8xVDD － VDD V
Output Low Volt. VOL IOL=0.5mA GND － 0.2xVDD V
50% Check Board Operating Current IDD VDD=5V － 30 38 mA



Products specifications
Brand Winstar
Size 1.6"
Resolution 12x2
Active Area (mm) 38.95x11.80
Dot Size 0.45x0.60
Polarizer Glare
Color Yellow
Power supply 5V
Display Interface 6800 (option 8080/SPI)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 15
Pin Pitch 1.27mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 1.6"
Resolution 12x2
Active Area (mm) 38.95x11.80
Dot Size 0.45x0.60
Polarizer Glare
Color Yellow
Power supply 5V
Display Interface 6800 (option 8080/SPI)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 15
Pin Pitch 1.27mm
Preferred - Not Preferred Preferred
