New 2021 version with WS0010-TX IC // Previous version with IC WS0010 P/N WEH1601L#B00-FC

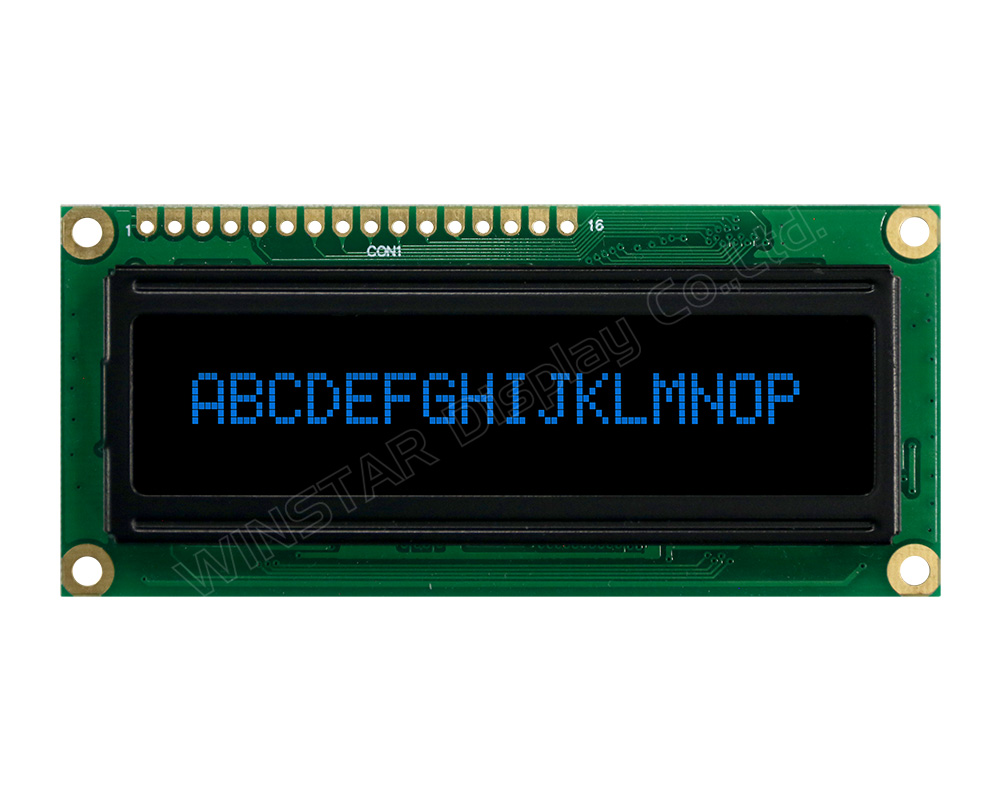

16 Character x 1 line COB OLED display module which diagonal panel size is 2.25 inch. It is built in with WS0010-TX IC; its interface is default 6800, available options 8080 and SPI, 1/8 driving duty. All Winstar OLED Character COB modules are built-in with an all-in-one Fonts controller IC WS0010; which offers 4 font sets on one device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).
The supply voltage for logic is 5V (typical value), display with 50% check board current is 50mA@5VDD (typical value). This OLED module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.
For quantities above 25 pcs pls send your enquiry to email@example.com or call +39 0332 1888005
