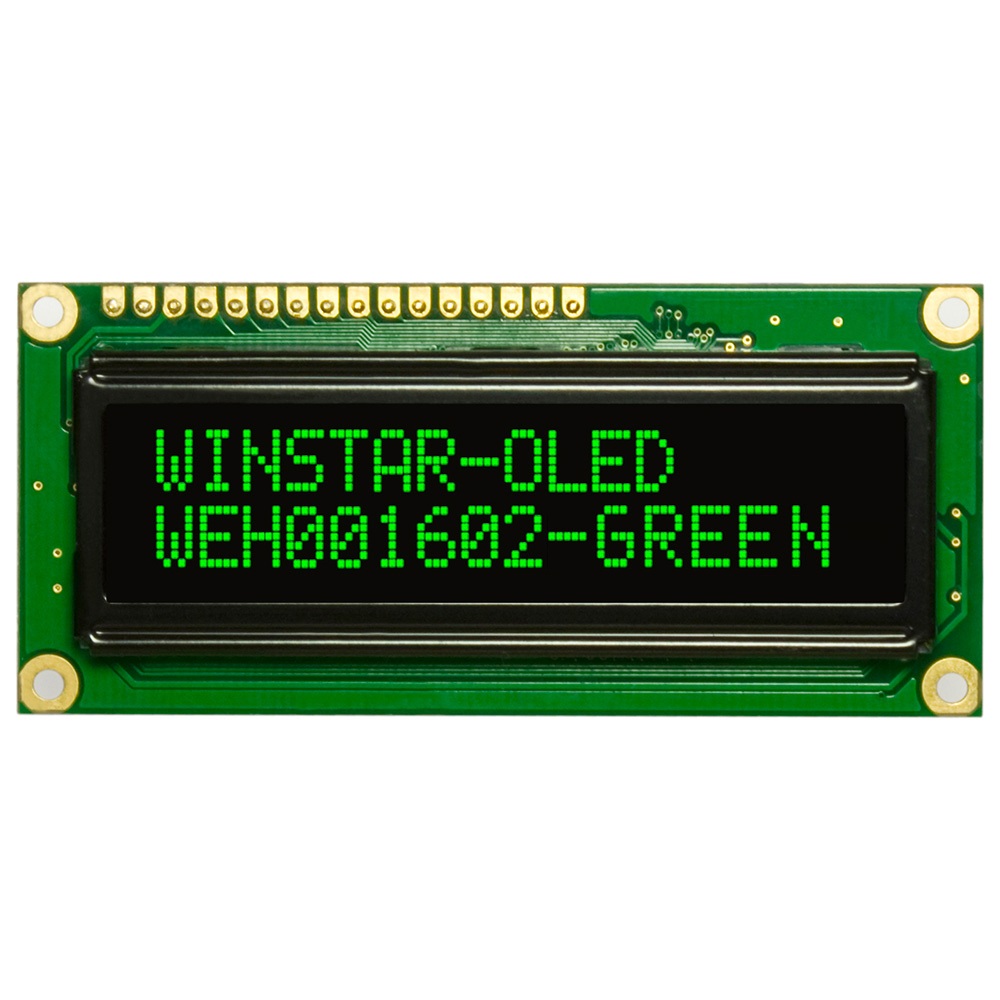

WEH1602G#AP3N00100-FC

PMOLED 2.29'' 16x2, Green color, COB, 3.3V, Interface 6800, WS0010-TX IC, Frame, Glare

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 P/N WEH1602L#A00-FC in 'Related Product' section on the bottom page

This OLED has the same outline size, VA size and pin out as Winstar LCD item no. WH1602B. We suggest customers to consider using this low power 16x2 character OLED to replace your existing STN character display or new projects. There are different interfaces optional for this model; its default 6800, available options 8080 and SPI. WS0010-TX IC on baord. All Winstar standard COB OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).

Faster response time "At +25 ℃ 10 μsec."
Unlimited viewing angle "Up to 175 degree"
Thin – No need of backlight, self emitting
High Brightness
High contrast ratio "Up to 2000:1"
Wide Operation Temperature "-40 ℃ ~ 80 ℃"
Lower power consumption - reduce CO² emissions

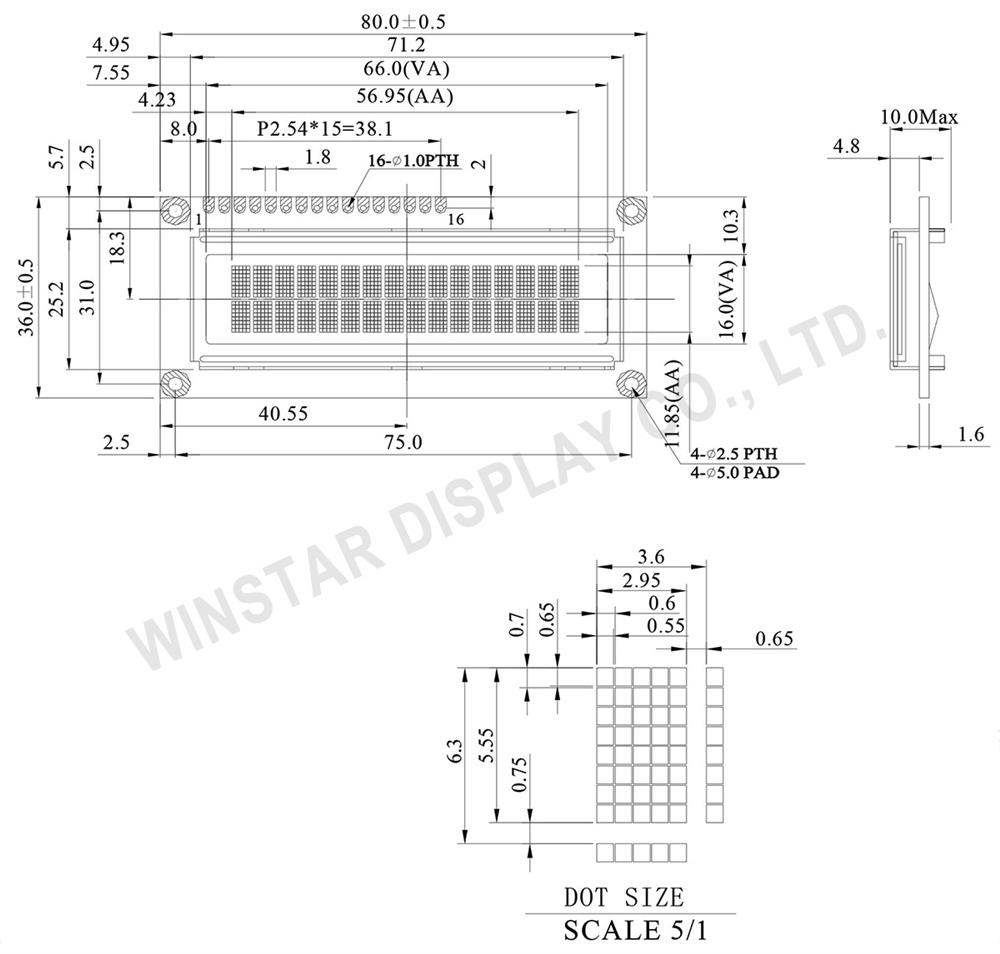

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	VSS	Ground Pin
2	VDD	Voltage for logic
3	NC	No Connection
4	RS	Register Select
5	R/W	Read/Write Control
6	E	Chip Enable Signal
7~14	DB0~DB7	Data Bus
15~16	NC	No Connection

Mechanical Data

Item	Dimension	Unit
Module dimension	80.0 × 36.0	mm
View area	66.0 × 16.0	mm
Active area	56.95 × 11.85	mm
Dot pitch	0.60 × 0.70	mm
Dot size	0.55 × 0.65	mm

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VDD	---	4.8	5.0	5.3	V

SKU: WEH1602G#AP3N00100-FC

Brand: Winstar

Available: No

Be the first to review this product

Price Breaks

Quantity

10+

25+

Price

€19.70

€14.50

€13.90

€13.50

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€19.70 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 P/N WEH1602L#A00-FC in 'Related Product' section on the bottom page

Faster response time "At +25 ℃ 10 μsec."
Unlimited viewing angle "Up to 175 degree"
Thin – No need of backlight, self emitting
High Brightness
High contrast ratio "Up to 2000:1"
Wide Operation Temperature "-40 ℃ ~ 80 ℃"
Lower power consumption - reduce CO² emissions

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	VSS	Ground Pin
2	VDD	Voltage for logic
3	NC	No Connection
4	RS	Register Select
5	R/W	Read/Write Control
6	E	Chip Enable Signal
7~14	DB0~DB7	Data Bus
15~16	NC	No Connection

Mechanical Data

Item	Dimension	Unit
Module dimension	80.0 × 36.0	mm
View area	66.0 × 16.0	mm
Active area	56.95 × 11.85	mm
Dot pitch	0.60 × 0.70	mm
Dot size	0.55 × 0.65	mm

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VDD	---	4.8	5.0	5.3	V

Products specifications

Brand	Winstar
Size	2.29"
Resolution	16x2
Active Area (mm)	56.95x11.85
Dot Size	0.55x0.65
Polarizer	Glare
Color	Green
Power supply	3.3V
Display Interface	6800 (option 8080/SPI)
Display IC	WS0010-TX
Constructive Structure	COB
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	Soldering PAD
Pin Nr.	16
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
