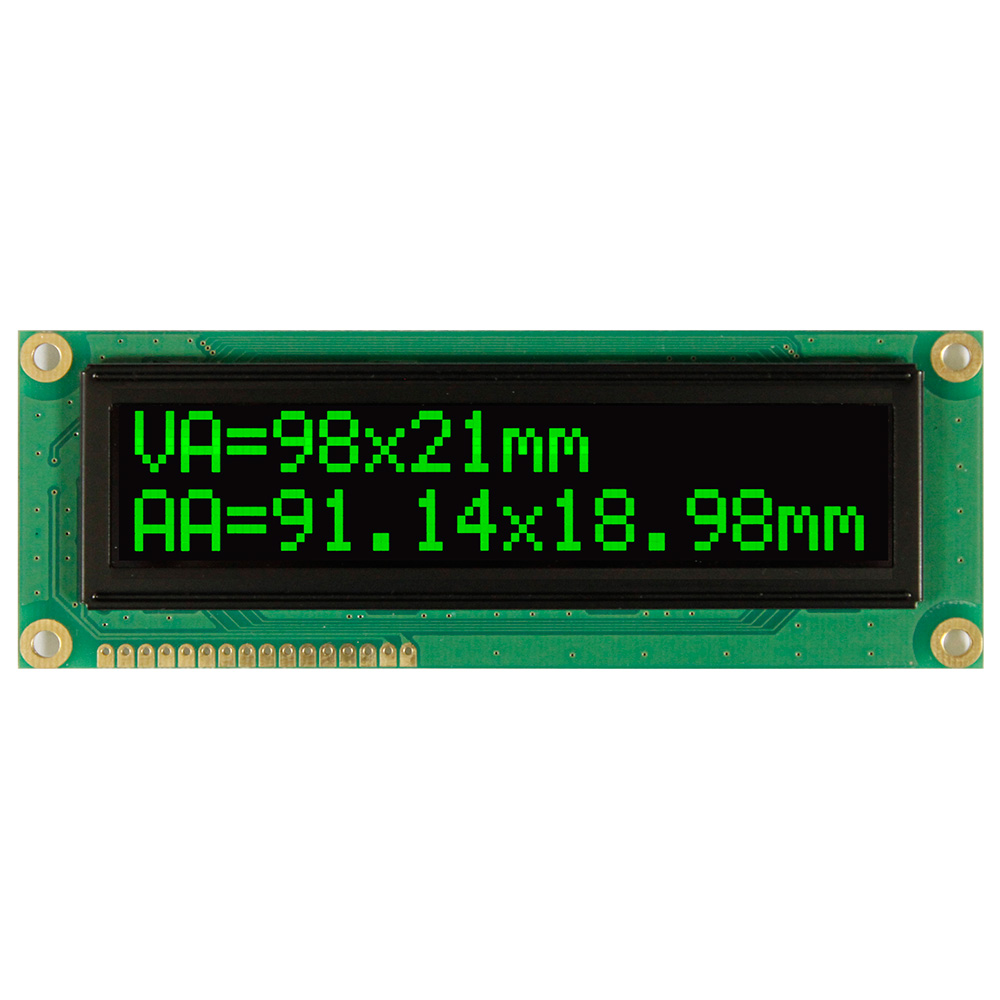

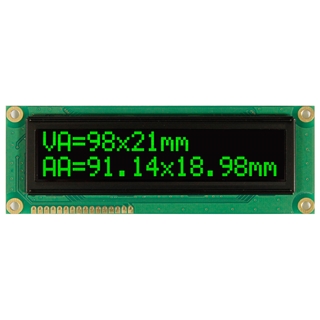

WEH1602G#HP3N00100-FC

PMOLED 3.67'' 16x2, Green color, COB, 3.3V, Interface 6800, WS0010-TX IC, Frame, Glare

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 P/N WEH1602L#H00-FC in 'Related Product' section on the bottom page

Winstar Display OLED 16x2 COB Character Display. This display is built-in WS0010-TX IC which with the outline dimension of 122.0 x 44.0 mm which is compatible to STN LCD WH1602L.

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	VSS	Ground Pin
2	VDD	Voltage for logic
3	NC	No Connection
4	RS	Register Select
5	R/W	Read/Write Control
6	E	Chip Enable Signal
7~14	DB0~DB7	Data Bus
15~16	NC	No Connection

Mechanical Data

Item	Dimension	Unit
Module dimension	122.0 × 44.0	mm
View area	98.0 × 21.0	mm
Active area	91.14 × 18.98	mm
Dot pitch	0.96 × 1.12	mm
Dot size	0.90 × 1.06	mm

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VDD	---	4.8	5.0	5.3	V

SKU: WEH1602G#HP3N00100-FC

Brand: Winstar

Available: No

Be the first to review this product

Price Breaks

Quantity

10+

Price

€34.80

€27.90

€26.80

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€34.80 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 P/N WEH1602L#H00-FC in 'Related Product' section on the bottom page

Winstar Display OLED 16x2 COB Character Display. This display is built-in WS0010-TX IC which with the outline dimension of 122.0 x 44.0 mm which is compatible to STN LCD WH1602L.

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	Description
1	VSS	Ground Pin
2	VDD	Voltage for logic
3	NC	No Connection
4	RS	Register Select
5	R/W	Read/Write Control
6	E	Chip Enable Signal
7~14	DB0~DB7	Data Bus
15~16	NC	No Connection

Mechanical Data

Item	Dimension	Unit
Module dimension	122.0 × 44.0	mm
View area	98.0 × 21.0	mm
Active area	91.14 × 18.98	mm
Dot pitch	0.96 × 1.12	mm
Dot size	0.90 × 1.06	mm

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage	VDD	---	4.8	5.0	5.3	V

Products specifications

Brand	Winstar
Size	3.67"
Resolution	16x2
Active Area (mm)	91.14x18.98
Dot Size	0.90x1.06
Polarizer	Glare
Color	Green
Power supply	3.3V
Display Interface	6800 (option 8080/SPI)
Display IC	WS0010-TX
Constructive Structure	COB
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	Soldering PAD
Pin Nr.	16
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
