WEH1602L#EP5N00100-FC

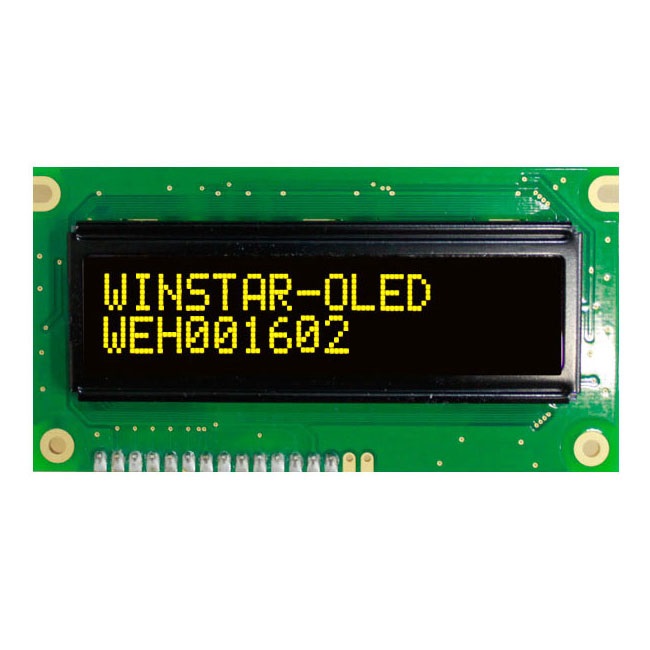

PMOLED 2.29'' 16x2, Yellow color, COB, 5V, Interface 6800, WS0010-TX IC, Frame

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEH1602L#E00-FC in 'Related Product' section on the bottom page

This OLED has the same outline size, VA size and pin out as Winstar LCD item no. WH1602A. We suggest customers to consider using this low power 16x2 character OLED to replace your existing STN character display or new projects. All Winstar standard COB OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).



DRAWING

WEH001602E - 16x2 Character OLED Module

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground Pin
2 VDD Voltage for logic
3 NC No Connection
4 RS Register Select
5 R/W Read/Write Control
6 E Chip Enable Signal
7~14 DB0~DB7 Data Bus
15~16 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 84.0 × 44.0 mm
View area 66.0 × 16.0 mm
Active area 56.95 × 11.85 mm
Dot pitch 0.60 × 0.70 mm
Dot size 0.55 × 0.65 mm



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VDD --- 4.8 5.0 5.3 V




SKU: WEH1602L#EP5N00100-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€16.70
€12.30
€11.80
€11.40

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€16.70 excl tax

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEH1602L#E00-FC in 'Related Product' section on the bottom page

This OLED has the same outline size, VA size and pin out as Winstar LCD item no. WH1602A. We suggest customers to consider using this low power 16x2 character OLED to replace your existing STN character display or new projects. All Winstar standard COB OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).



DRAWING

WEH001602E - 16x2 Character OLED Module

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VSS Ground Pin
2 VDD Voltage for logic
3 NC No Connection
4 RS Register Select
5 R/W Read/Write Control
6 E Chip Enable Signal
7~14 DB0~DB7 Data Bus
15~16 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 84.0 × 44.0 mm
View area 66.0 × 16.0 mm
Active area 56.95 × 11.85 mm
Dot pitch 0.60 × 0.70 mm
Dot size 0.55 × 0.65 mm



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VDD --- 4.8 5.0 5.3 V




Products specifications
Brand Winstar
Size 2.29"
Resolution 16x2
Active Area (mm) 56.95x11.85
Dot Size 0.55x0.65
Polarizer Glare
Color Yellow
Power supply 5V
Display Interface 6800 (option 8080/SPI)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
