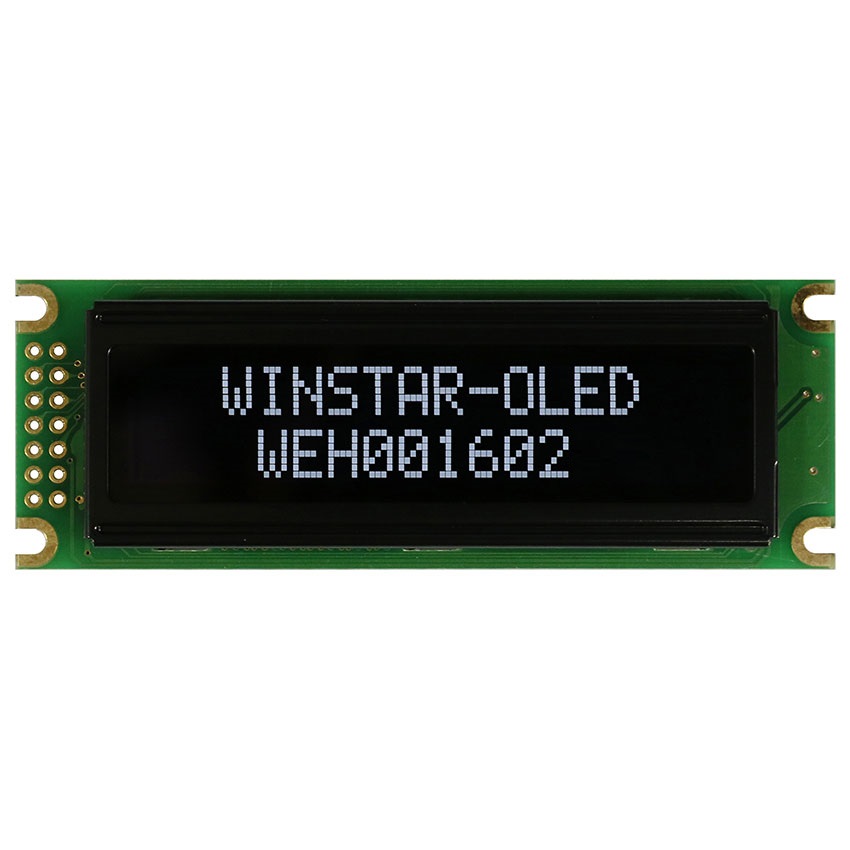

WEH1602W#DP5N00100-FC

PMOLED 2.29'' 16x2, White color, COB, 5V, Interface 6800, WS0010-TX IC, Frame

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEH1602W#D00-FC in 'Related Product' section on the bottom page

The Organic Light-Emitting Diode (OLED) is a new generation technology, brighter and clearer images with more agile responding speed. This model Character OLED Display 16x2 modules are available in Yellow and White color, but options Green or Blue OLED emitting colors. This OLED 16x2 Character Display is lightweight, low power and small, there are different interface optional; it is default 6800, available options 8080. All Winstar standard COB OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).



DRAWING

Winstar OLED 16x2, OLED Display 16x2 - WEH001602D

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VDD Supply Voltage for logic
2 VSS Ground Pin
3 NC No Connection
4 RS Register Select
5 R/W Read/Write Control
6 E Chip Enable Signal
7~14 DB0~DB7 Data Bus

Mechanical Data

ItemDimensionUnit
Module dimension 85.0 × 30.0 mm
View area 66.0 × 16.0 mm
Active area 56.95 × 11.85 mm
Dot pitch 0.60 × 0.70 mm
Dot size 0.55 × 0.65 mm

Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VDD --- 4.8 5.0 5.3 V




SKU: WEH1602W#DP5N00100-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
25+
Price
€15.10
€11.10
€10.70
€10.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€15.10 excl tax

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEH1602W#D00-FC in 'Related Product' section on the bottom page

The Organic Light-Emitting Diode (OLED) is a new generation technology, brighter and clearer images with more agile responding speed. This model Character OLED Display 16x2 modules are available in Yellow and White color, but options Green or Blue OLED emitting colors. This OLED 16x2 Character Display is lightweight, low power and small, there are different interface optional; it is default 6800, available options 8080. All Winstar standard COB OLED Character types are built-in with all-in-one Fonts controller IC; which offer 4 font sets on 1 device. These include English/Japanese, West European, Scandinavian European, and Cyrillic (Russian).



DRAWING

Winstar OLED 16x2, OLED Display 16x2 - WEH001602D

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VDD Supply Voltage for logic
2 VSS Ground Pin
3 NC No Connection
4 RS Register Select
5 R/W Read/Write Control
6 E Chip Enable Signal
7~14 DB0~DB7 Data Bus

Mechanical Data

ItemDimensionUnit
Module dimension 85.0 × 30.0 mm
View area 66.0 × 16.0 mm
Active area 56.95 × 11.85 mm
Dot pitch 0.60 × 0.70 mm
Dot size 0.55 × 0.65 mm

Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VDD --- 4.8 5.0 5.3 V




Products specifications
Brand Winstar
Size 2.29"
Resolution 16x2
Active Area (mm) 56.95x11.85
Dot Size 0.55x0.65
Polarizer Glare
Color White
Power supply 5V
Display Interface 6800 (option 8080)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 14
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.29"
Resolution 16x2
Active Area (mm) 56.95x11.85
Dot Size 0.55x0.65
Polarizer Glare
Color White
Power supply 5V
Display Interface 6800 (option 8080)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 14
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
