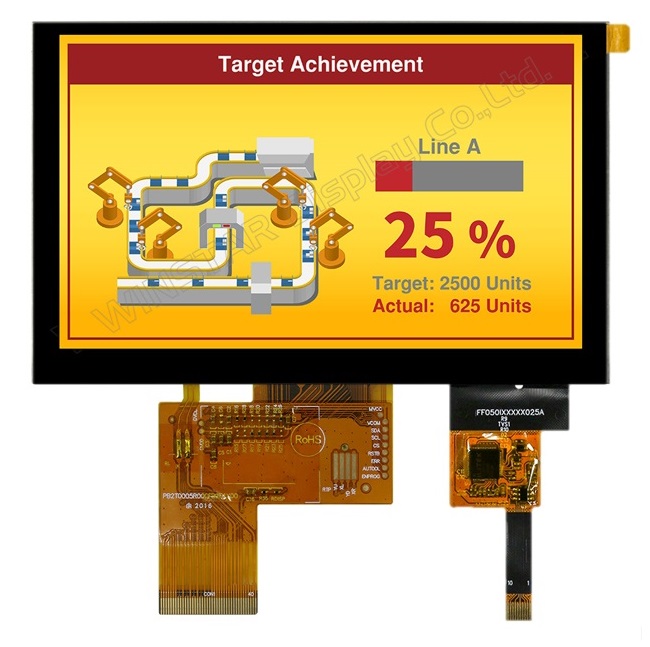

WF50-800480FL#0PW3-FC

TFT 5'' 800x480, LCD Module, Interface LVDS, 400cd/m², Wide view angle (IPS), Super extended Temperature, Capacitive touch panel I2C interface (GG, ILI2130 IC)

DESCRIPTION

5 inch IPS landscape mode TFT LCD module, with resolution 800x480 pixels. Capacitive touch panel (ILI2130 IC). This module is built in with ST7262 driver IC; this module supports LVDS interface (Default VESA), contrast ratio 1,000:1 (typical value), brightness 500 nits (typical value). RGB version option available.

This IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The power voltage is from 3.1 to 3.6V, typical value 3.3V, aspect ratio 16:9, normally black, transmissive LCD type, anti-glare surface glass. Operating temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.

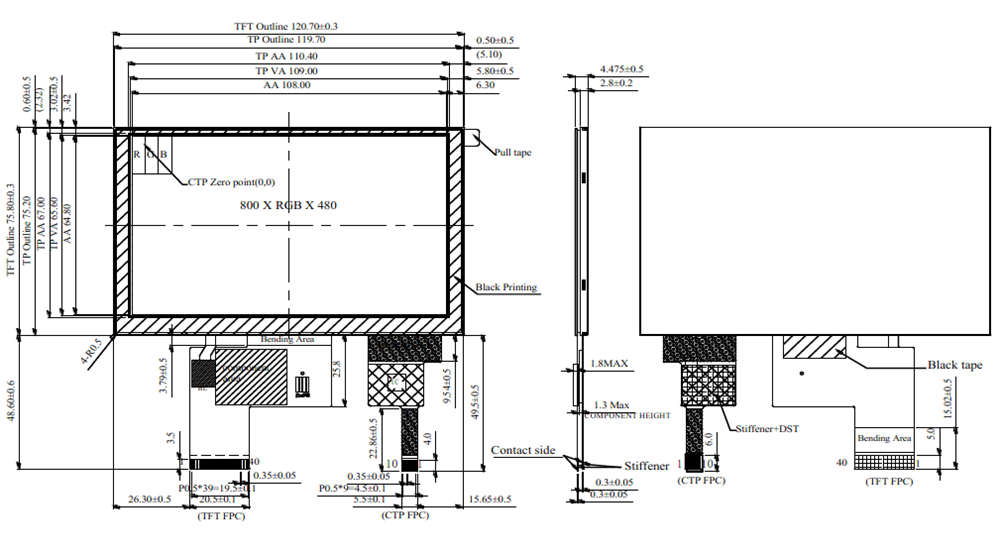

DRAWING



SPECIFICATIONS

Interface

PinSymbolFunction
1 NC No connection
2 VCC Power voltage
3 VCCI Power supply for digital I/O pins.
4 NC No connection
5 GRB Global reset pin. When GRB is “L”, internal initialization procedure is executed
6 DISP Display on/off
7 GND Power Ground
8 RXIN0- LVDS input lane: RX0-/ RX0+
9 RXIN0+
10 GND Power Ground
11 RXIN1- LVDS input lane: RX1-/ RX1+
12 RXIN1+
13 GND Power Ground
14 RXIN2- LVDS input lane: RX2-/ RX2+
15 RXIN2+
16 GND Power Ground
17 RXCLKIN- LVDS input lane, detail pin define please refer to LVDS
Input Pin Mapping Table.
18 RXCLKIN+
19 GND Power Ground
20 RXIN3- LVDS input lane: RX3-/ RX3+
21 RXIN3+
22 GND Power Ground
23-24 NC No connection
25 FMT LVDS_FMT sets LVDS data format.
LVDS_FMTFunction Description
L VESA Mode (Default)
H JEIDA Mode
LVDS_FMT is not used in RGB interface and should be connected to “L”.
26-27 NC No connection
28 SELB SELB sets VSYNC polarity in RGB interface and sets LVDS 3- / 4- lane in LVDS interface.
MCU TypeVDPOLFunction Description
RGB interface L VSYNC polarity: positive
H VSYNC polarity: positive: negative (Default)
LVDS inteface L LVD 3 lane
H LVD 4 lane (Default)
29 NC No connection
30 GND Power Ground
31-32 VLED- Power for LED backlight (Cathode)
33 L/R Horizontal scan direction control pin. This pin must be connected to “H” or “L” according to system application
HDIRFunction Description
L From right to left
H From left to right (Default)
34 U/D Vertical scan direction control pin. This pin must be connected to “H” or “L” according to system application.
VDIRFunction Description
L From down to up.
H From up to down.(Default)
35 NC No connection
36-37 GND Power Ground
38 NC No connection
39-40 VLED+ Power for LED backlight (Anode)



General Specifications

ItemDimensionUnit
Size 5.0 inch
Dot Matrix 800× 3(RGB) × 480 dots
Module dimension 120.7(W) ×75.8(H) ×2.8mm mm
Active area 108(W) ×64.8 (H) mm mm
Dot pitch 0.135(W) ×0.135(H) mm mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 16:9
Driver IC     ST7262 or equivalent
Interface LVDS
Backlight Type LED ,Normally White
Touch Panel Touch Panel Capacitive



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 +80
Storage Temperature TST -30 +80



Electrical Characteristics

Typical Operation Conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Power voltage VCC 3.1 3.3 3.6 V
Power voltage VCCI 3.1 3.3 3.6 V
Current for Driver(Black) ICC - 67.6 102 mA
SKU: WF50-800480FL#0PW3-FC
Brand: Winstar
Available: No
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€57.80
€51.00
€43.70

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€57.80 excl tax

DESCRIPTION

5 inch IPS landscape mode TFT LCD module, with resolution 800x480 pixels. Capacitive touch panel (ILI2130 IC). This module is built in with ST7262 driver IC; this module supports LVDS interface (Default VESA), contrast ratio 1,000:1 (typical value), brightness 500 nits (typical value). RGB version option available.

This IPS TFT has a wider viewing angle than TN TFT, the view angle is Left:80 / Right:80 / Up:80 / Down:80 degree (typical value). The power voltage is from 3.1 to 3.6V, typical value 3.3V, aspect ratio 16:9, normally black, transmissive LCD type, anti-glare surface glass. Operating temperatures from -30℃ to +80℃ and storage temperatures from -30℃ to +80℃.



DRAWING



SPECIFICATIONS

Interface

PinSymbolFunction
1 NC No connection
2 VCC Power voltage
3 VCCI Power supply for digital I/O pins.
4 NC No connection
5 GRB Global reset pin. When GRB is “L”, internal initialization procedure is executed
6 DISP Display on/off
7 GND Power Ground
8 RXIN0- LVDS input lane: RX0-/ RX0+
9 RXIN0+
10 GND Power Ground
11 RXIN1- LVDS input lane: RX1-/ RX1+
12 RXIN1+
13 GND Power Ground
14 RXIN2- LVDS input lane: RX2-/ RX2+
15 RXIN2+
16 GND Power Ground
17 RXCLKIN- LVDS input lane, detail pin define please refer to LVDS
Input Pin Mapping Table.
18 RXCLKIN+
19 GND Power Ground
20 RXIN3- LVDS input lane: RX3-/ RX3+
21 RXIN3+
22 GND Power Ground
23-24 NC No connection
25 FMT LVDS_FMT sets LVDS data format.
LVDS_FMTFunction Description
L VESA Mode (Default)
H JEIDA Mode
LVDS_FMT is not used in RGB interface and should be connected to “L”.
26-27 NC No connection
28 SELB SELB sets VSYNC polarity in RGB interface and sets LVDS 3- / 4- lane in LVDS interface.
MCU TypeVDPOLFunction Description
RGB interface L VSYNC polarity: positive
H VSYNC polarity: positive: negative (Default)
LVDS inteface L LVD 3 lane
H LVD 4 lane (Default)
29 NC No connection
30 GND Power Ground
31-32 VLED- Power for LED backlight (Cathode)
33 L/R Horizontal scan direction control pin. This pin must be connected to “H” or “L” according to system application
HDIRFunction Description
L From right to left
H From left to right (Default)
34 U/D Vertical scan direction control pin. This pin must be connected to “H” or “L” according to system application.
VDIRFunction Description
L From down to up.
H From up to down.(Default)
35 NC No connection
36-37 GND Power Ground
38 NC No connection
39-40 VLED+ Power for LED backlight (Anode)



General Specifications

ItemDimensionUnit
Size 5.0 inch
Dot Matrix 800× 3(RGB) × 480 dots
Module dimension 120.7(W) ×75.8(H) ×2.8mm mm
Active area 108(W) ×64.8 (H) mm mm
Dot pitch 0.135(W) ×0.135(H) mm mm
LCD type TFT, Normally Black, Transmissive
View Direction 80/80/80/80
Aspect Ratio 16:9
Driver IC     ST7262 or equivalent
Interface LVDS
Backlight Type LED ,Normally White
Touch Panel Touch Panel Capacitive



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 +80
Storage Temperature TST -30 +80



Electrical Characteristics

Typical Operation Conditions

ItemSymbolValuesUnit
Min.Typ.Max.
Power voltage VCC 3.1 3.3 3.6 V
Power voltage VCCI 3.1 3.3 3.6 V
Current for Driver(Black) ICC - 67.6 102 mA
Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface LVDS
Display IC Controller No
View Angle IPS
Brightness Range Standard 100~600cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -30~80
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller ILI2130
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 5"
Resolution 800x480
Active Area (mm) 108.00x64.80
Color Full Color
Display Interface LVDS
Display IC Controller No
View Angle IPS
Brightness Range Standard 100~600cd/m²
Frame No
Touch Panel Capacitive
O. Temperature (°C) -30~80
Display Connection FPC per ZIF Connector
Pin Nr. 40
Pin Pitch 0.5mm
Touch Panel IC Controller ILI2130
Preferred - Not Preferred Preferred
