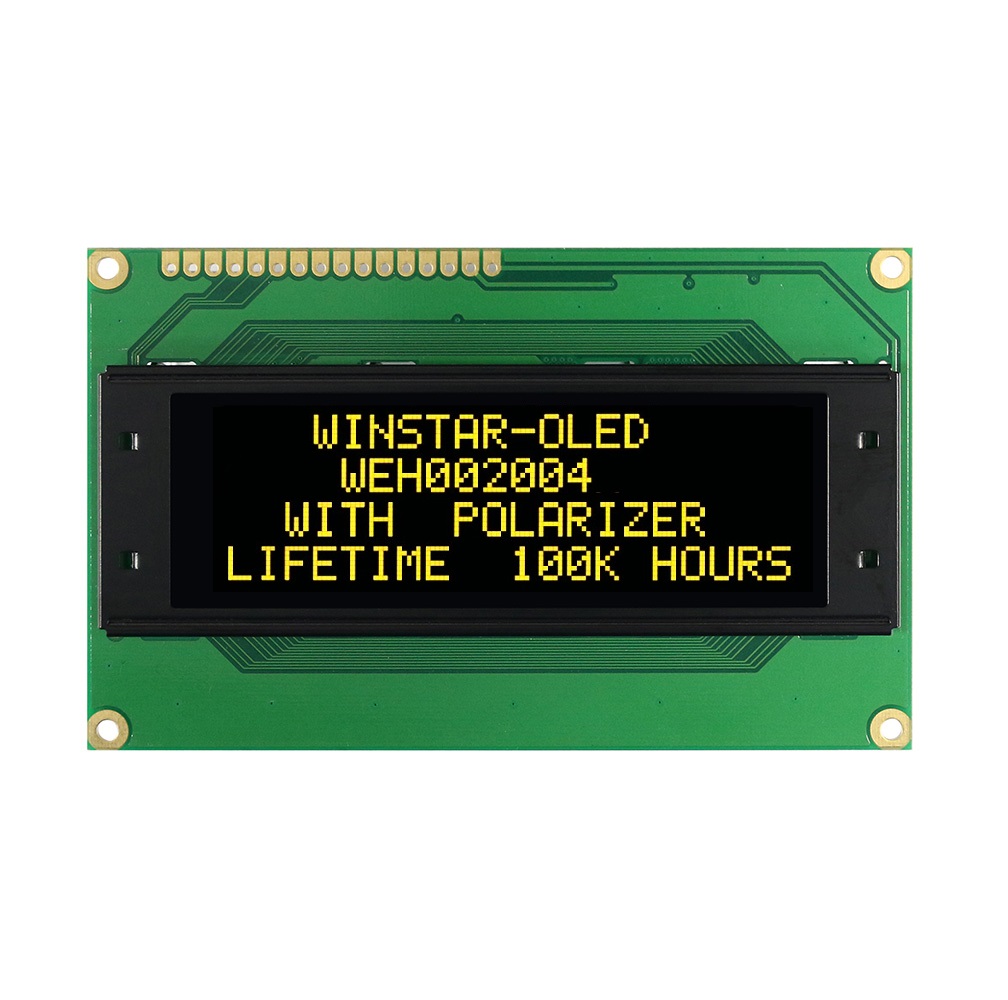

WEH2004L#AP5N00100-FC

PMOLED 2.88'' 20x4, Yellow color, COB, 5V, Interface 6800, WS0010-TX IC, Frame

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEH2004L#A08-FC in 'Related Product' section on the bottom page

It is made of a COB structure 20x4 OLED Display. This display is built-in WS0010 IC which has different interfaces optional; it is default 6800, available options 8080 and SPI. The OLED display feature are brighter display, much higher contrast display, wider viewing angles, that have faster response times, self-illuminating and lower current consumption. Winstar's 20x4 OLED Display is your best choice to upgrade your applications from STN LCDs to OLED displays.

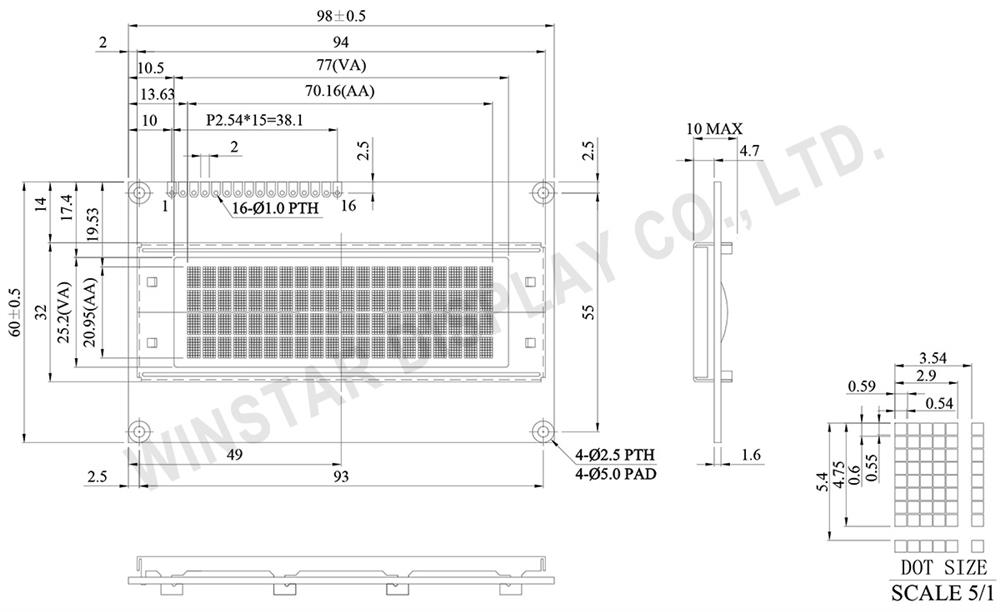

DRAWING

WEH002004A - 20x4 OLED Display, 20x4 OLED

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC No connect
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 NC No connect
16 NC No connect

General Specification

ItemDimensionUnit
Number of Characters 20 characters × 4 Lines
Module dimension 98.0 × 60.0 × 10.0(MAX) mm
View area 77.0 × 25.2 mm
Active area 70.16 × 20.95 mm
Dot size 0.54 × 0.55 mm
Dot pitch 0.59 × 0.60 mm
Character size 2.9 × 4.75 mm
Character pitch 3.54 × 5.4 mm
Panel type OLED, Monochrome
Duty 1/16
IC WS0010
Interface 6800, option 8080, SPI
Size 2.88 inch

Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C
Supply Voltage For Logic VDD-VSS -0.3 5.3 V

Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS 4.8 5.0 5.3 V
Input High Volt. VIH 0.8 VDD VDD V
Input Low Volt. VIL GND 0.2 VDD V
Output High Volt. VOH IOH=-0.5mA 0.8 VDD VDD V
Output Low Volt. VOL IOL=0.5mA GND 0.2 VDD V
50% Check Board
Operating Current
IDD VDD=5V 60 62 72 mA


SKU: WEH2004L#AP5N00100-FC
Brand: Winstar
Available: No
Price Breaks
Quantity
1+
5+
10+
Price
€25.90
€20.70
€20.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€25.90 excl tax

DESCRIPTION

New 2021 version with WS0010-TX IC // Previous version with IC WS0010 EOL P/N WEH2004L#A08-FC in 'Related Product' section on the bottom page

It is made of a COB structure 20x4 OLED Display. This display is built-in WS0010 IC which has different interfaces optional; it is default 6800, available options 8080 and SPI. The OLED display feature are brighter display, much higher contrast display, wider viewing angles, that have faster response times, self-illuminating and lower current consumption. Winstar's 20x4 OLED Display is your best choice to upgrade your applications from STN LCDs to OLED displays.



DRAWING

WEH002004A - 20x4 OLED Display, 20x4 OLED

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolLevelDescription
1 VSS 0V Ground
2 VDD 5.0V Supply Voltage for logic
3 NC No connect
4 RS H/L H: DATA, L: Instruction code
5 R/W H/L H: Read(Module→MPU) L: Write(MPU→Module)
6 E H,H→L Chip enable signal
7 DB0 H/L Data bit 0
8 DB1 H/L Data bit 1
9 DB2 H/L Data bit 2
10 DB3 H/L Data bit 3
11 DB4 H/L Data bit 4
12 DB5 H/L Data bit 5
13 DB6 H/L Data bit 6
14 DB7 H/L Data bit 7
15 NC No connect
16 NC No connect

General Specification

ItemDimensionUnit
Number of Characters 20 characters × 4 Lines
Module dimension 98.0 × 60.0 × 10.0(MAX) mm
View area 77.0 × 25.2 mm
Active area 70.16 × 20.95 mm
Dot size 0.54 × 0.55 mm
Dot pitch 0.59 × 0.60 mm
Character size 2.9 × 4.75 mm
Character pitch 3.54 × 5.4 mm
Panel type OLED, Monochrome
Duty 1/16
IC WS0010
Interface 6800, option 8080, SPI
Size 2.88 inch

Absolute Maximum Ratings

ItemSymbolMinMaxUnit
Operating Temperature TOP -40 +80 °C
Storage Temperature TST -40 +85 °C
Supply Voltage For Logic VDD-VSS -0.3 5.3 V

Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage For Logic VDD-VSS 4.8 5.0 5.3 V
Input High Volt. VIH 0.8 VDD VDD V
Input Low Volt. VIL GND 0.2 VDD V
Output High Volt. VOH IOH=-0.5mA 0.8 VDD VDD V
Output Low Volt. VOL IOL=0.5mA GND 0.2 VDD V
50% Check Board
Operating Current
IDD VDD=5V 60 62 72 mA


Products specifications
Brand Winstar
Size 2.88"
Resolution 20x4
Active Area (mm) 70.16x20.95
Dot Size 0.54x0.55
Polarizer Glare
Color Yellow
Power supply 5V
Display Interface 6800 (option 8080/SPI)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.88"
Resolution 20x4
Active Area (mm) 70.16x20.95
Dot Size 0.54x0.55
Polarizer Glare
Color Yellow
Power supply 5V
Display Interface 6800 (option 8080/SPI)
Display IC Controller WS0010-TX
Constructive Structure COB
Frame Yes
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection Soldering PAD
Pin Nr. 16
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
