New 2021 version with WS0010-TX IC // Previous version with IC WS0010 P/N WEH4002L#A00-FC

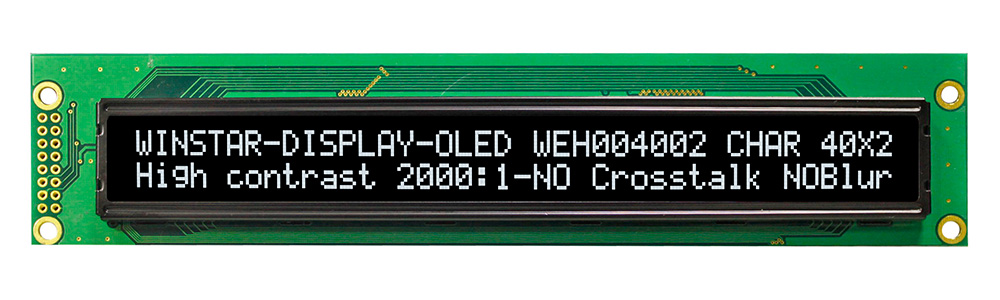

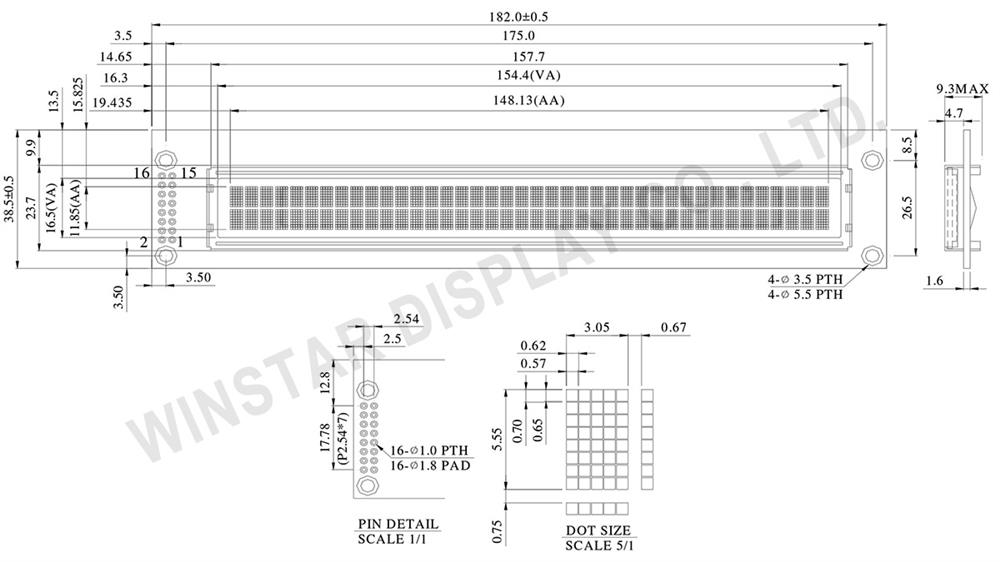

Winstar 5.85 inch OLED which has the same outline size, VA size and pin out as Winstar STN LCD standard item of WH4002A. This OLED 40x2 display is built-in WS0010 IC which has different interfaces optional; it is default 6800, available options 8080 and SPI. The key features of OLED display are brighter display, much higher contrast display, wider viewing angles, that have faster response times, self-illuminating and lower current consumption. There is also a Grapgic equivalent type available with resolution 200x16pixels.
For quantities above 25 pcs pls send your enquiry to email@example.com or call +39 0332 1888005
