WEN25664W#DP3N00000-FC

PMOLED 5.5" Graphic 256x64, White color, COF + PCB, 3V, Interface 6800,8080,SPI, Glare

DESCRIPTION

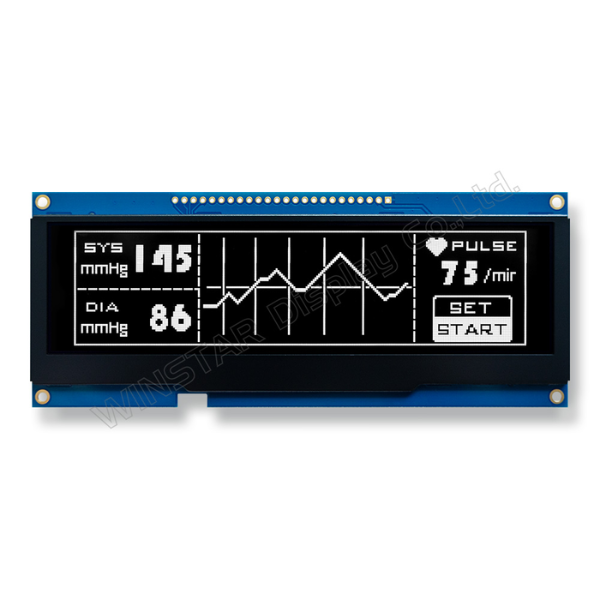

The WEN25664W#DP3N00000-FC COF OLED display module, which includes a frame and PCB, features a resolution of 256x64 dots and a 5.5-inch diagonal module dimension (135.65 × 33.89 mm). Equipped with a built-in SSD1322 IC supporting 6800/8080 8-bit and 3/4-line SPI interfaces, this module operates on a 3V power supply, utilizing a 1/64 duty driving method and supporting 4-bit grayscale with an impressive contrast ratio of 10000:1.

The WEN25664W#DP3N00000-FC comes with a PCB board featuring a frame, facilitating convenient connectivity to applications via wires. Customers are spared the task of developing additional PCB boards, as the module integrates interface settings and VDD circuits for user-friendly operation. The PCB also includes four screw holes, streamlining the installation onto application products. With an operational temperature range of -40℃ to +80℃ and a storage temperature range of -40℃ to +85℃, this OLED module is well-suited for diverse environments.

This 5.5-inch OLED module is particularly suitable for applications such as POS systems and vending machines.

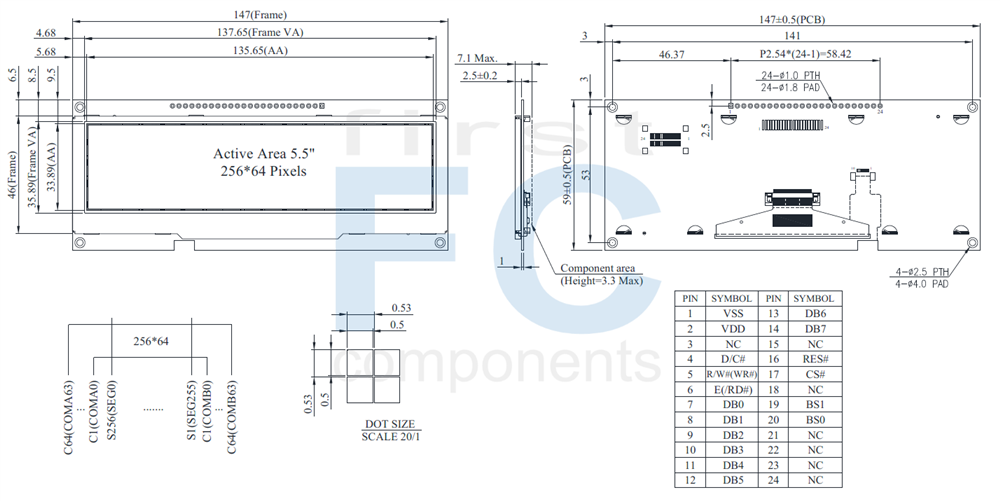

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin
Number

Symbol

I/O

Function

VSS

Ground.

VDD

Power Supply for Core Logic Circuit
Power supply pin for core logic operation. A capacitor is required to connect between this pin and VSS

N.C.

Reserved Pin
The N.C. pin between function pins are reserved for compatible and flexible design.

D/C#

Data/Command Control
This pin is Data/Command control pin connecting to the MCU.
When the pin is pulled HIGH, the content at D[7:0] will be interpreted as data.
When the pin is pulled LOW, the content at D[7:0] will be interpreted as command.

R/W#
(WR#)

Read/Write Select or Write
This pin is MCU interface input. When interfacing to a 68XX-series microprocessor, this pin will be used as Read/Write (R/W#) selection input. Pull this pin to “High” for read mode and pull it to “Low” for write mode.
When 80XX interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled low and the CS# is pulled low.
When serial mode is selected, this pin must be connected to VSS.

E(/RD#)

Read/Write Enable or Read
This pin is MCU interface input.
When interfacing to a 68XX-series microprocessor, this pin will be used as the Enable (E) signal. Read/write operation is initiated when this pin is pulled high and the CS# is pulled low.
When connecting to an 80XX-microprocessor, this pin receives the Read (RD#) signal. Data read operation is initiated when this pin is pulled low and CS# is pulled low.
When serial mode is selected, this pin must be connected to VSS.

7~14

DB0

I/O

Host Data Input/Output Bus
These pins are 8-bit bi-directional data bus to be connected to the microprocessor’s data bus.
When serial mode is selected, D1 will be the serial data input SDIN and D0 will be the serial clock input SCLK.

DB1

DB2

DB3

DB4

DB5

DB6

DB7

Reserved Pin
The N.C. pin between function pins are reserved for compatible and flexible design.

RES#

This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.

CS#

Data/Command Control
This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW.

Reserved Pin
The N.C. pin between function pins are reserved for compatible and flexible design.

BS1

Communicating Protocol Select
These pins are MCU interface selection input. See the following table:

BS[1:0]	Bus Interface Selection
00	4 line SPI
01	3 line SPI
10	8-bit 8080 parallel
11	8-bit 6800 parallel

Note
(1) 0 is connected to VSS
(2) 1 is connected to VDD

BS0

－

No connection

－

No connection

－

No connection

－

No connection

General Specification

Item	Dimension	Unit
Dot Matrix	256 × 64 Dots	－
Module dimension	147.0 × 59 × 2.5	mm
Active Area	135.65 × 33.89	mm
Pixel Size	0.50 × 0.50	mm
Pixel Pitch	0.53 × 0.53	mm
Display Mode	Passive Matrix
Display Color	White
Drive Duty	1/64 Duty
Gray scale	4 bits
IC	SSD1322
Interface	6800, 8080, SPI
Size	5.5 inch

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Display	VDD	-0.3	4	V
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TSTG	-40	+85	°C

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VDD	－	2.8	3.0	3.3	V
High Level Input	VIH	－	0.8×VDD	－	VDD	V
Low Level Input	VIL	－	0	－	0.2×VDD	V
High Level Output	VOH	－	0.9×VDD	－	VDD	V
Low Level Output	VOL	－	0	－	0.1×VDD	V
Display 50% Pixel on	IDD	VDD =3V	－	240	400	mA

SKU: WEN25664W#DP3N00000-FC

Brand: Winstar

Available: No

Be the first to review this product

Accessory Kit

Display Connector

Price Breaks

Quantity

10+

Price

€61.60

€55.40

€52.50

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€61.60 excl tax

Overview
Specifications
Download
Contact Us

DESCRIPTION

This 5.5-inch OLED module is particularly suitable for applications such as POS systems and vending machines.

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin
Number

Symbol

I/O

Function

VSS

Ground.

VDD

Power Supply for Core Logic Circuit
Power supply pin for core logic operation. A capacitor is required to connect between this pin and VSS

N.C.

Reserved Pin
The N.C. pin between function pins are reserved for compatible and flexible design.

D/C#

R/W#
(WR#)

E(/RD#)

7~14

DB0

I/O

DB1

DB2

DB3

DB4

DB5

DB6

DB7

Reserved Pin
The N.C. pin between function pins are reserved for compatible and flexible design.

RES#

This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.

CS#

Data/Command Control
This pin is the chip select input connecting to the MCU. The chip is enabled for MCU communication only when CS# is pulled LOW.

Reserved Pin
The N.C. pin between function pins are reserved for compatible and flexible design.

BS1

Communicating Protocol Select
These pins are MCU interface selection input. See the following table:

BS[1:0]	Bus Interface Selection
00	4 line SPI
01	3 line SPI
10	8-bit 8080 parallel
11	8-bit 6800 parallel

Note
(1) 0 is connected to VSS
(2) 1 is connected to VDD

BS0

－

No connection

－

No connection

－

No connection

－

No connection

General Specification

Item	Dimension	Unit
Dot Matrix	256 × 64 Dots	－
Module dimension	147.0 × 59 × 2.5	mm
Active Area	135.65 × 33.89	mm
Pixel Size	0.50 × 0.50	mm
Pixel Pitch	0.53 × 0.53	mm
Display Mode	Passive Matrix
Display Color	White
Drive Duty	1/64 Duty
Gray scale	4 bits
IC	SSD1322
Interface	6800, 8080, SPI
Size	5.5 inch

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Display	VDD	-0.3	4	V
Operating Temperature	TOP	-40	+80	°C
Storage Temperature	TSTG	-40	+85	°C

Electronical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VDD	－	2.8	3.0	3.3	V
High Level Input	VIH	－	0.8×VDD	－	VDD	V
Low Level Input	VIL	－	0	－	0.2×VDD	V
High Level Output	VOH	－	0.9×VDD	－	VDD	V
Low Level Output	VOL	－	0	－	0.1×VDD	V
Display 50% Pixel on	IDD	VDD =3V	－	240	400	mA

Products specifications

Brand	Winstar
Size	5.5"
Resolution	256x64
Active Area (mm)	135.65x33.89
Dot Size	0.50x0.50
Polarizer	Glare
Color	White
Power supply	3V
Display Interface	6800/8080/SPI
Display IC	SSD1322
Constructive Structure	COF + PCB
Frame	Yes
Touch Panel	No touch
O. Temperature (°C)	-40~80
Display Connection	Soldering PAD
Pin Nr.	24
Pin Pitch	2.54mm
Preferred - Not Preferred	Preferred
