PMOLED 1.51" Graphic 128x56 Transparent, Sky Blue color, COG, 3V, Interface 6800,8080,I2C,SPI

DESCRIPTION

WINSTAR's 1.51-inch 128x56 Transparent OLED Display Module is engineered to offer high visibility and superior optical integration in a compact, efficient package. This Mini Transparent OLED Display is the perfect solution for applications requiring clear data overlays while maintaining full background visibility. The display, available in Sky Blue as the standard color, can also be customized in other colors such as White, Green, Yellow, Blue, and Red upon request. This 1.51-inch Transparent OLED is ideal for industries that need cutting-edge display technology in tight spaces.

Key Features:

  • Size: 1.51 inches
  • Resolution: 128 x 56
  • Display Type: Passive Matrix OLED
  • Interface Options: 6800, 8080, 4-Wire SPI, I2C
  • Driver IC: SSD1309
  • Supply Voltage: 3.0V (Logic), 12.5V (Display)
  • Power Consumption: 12mA (typical), 18mA (max) at 50% checkerboard pattern
  • Brightness: 100 cd/m² (min), 120 cd/m² (typ)
  • Transmittance: 50%
  • Operating Temperature: -40°C to +80°C
  • Storage Temperature: -40°C to +85°C

Applications:

  • Automotive HUD (Head-Up Display)
  • Rifle Scopes & Optical Sights
  • Golf Rangefinders
  • Night Vision & Professional Optics

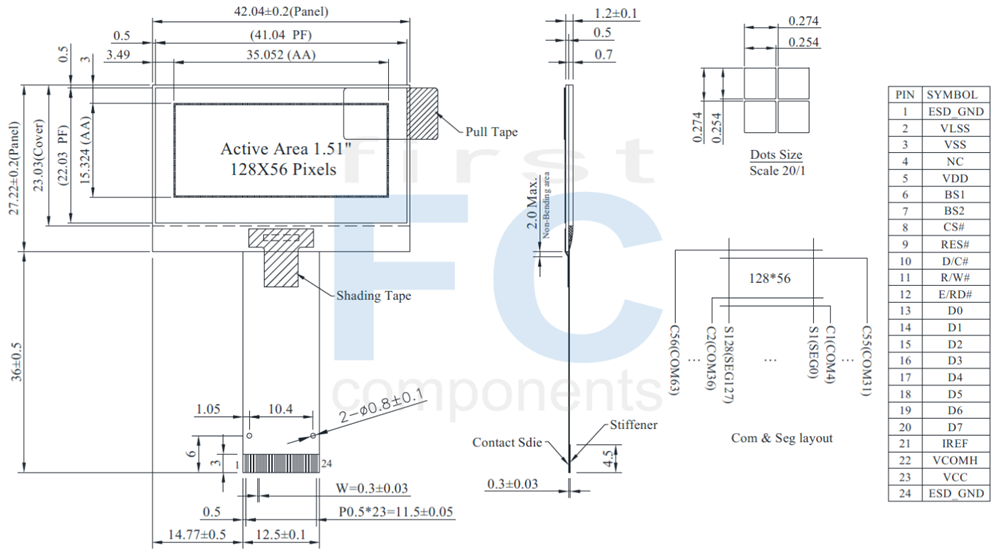

DRAWING

SPECIFICATIONS

Mechanical Data

ItemDimensionUnit
Dot Matrix 128 × 56 dots
Module dimension 42.04 × 27.22 × 1.2 mm
Active Area 35.052 × 15.324 mm
Pixel Size 0.254 × 0.254 mm
Pixel Pitch 0.274 × 0.274 mm
Display Mode Passive Matrix
Display Color Sky Blue
Drive Duty 1/56 Duty
IC SSD1309
Interface 6800,8080,4-Wire SPI,I2C
Size 1.51 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD -0.3 4 V
Supply Voltage for Display VCC 0 17 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD － 1.65 3.0 3.3 V
Supply Voltage for Display VCC － 7.0 12.5 13.0 V
High Level Input VIH － 0.8×VDD － － V
Low Level Input VIL － － － 0.2×VDD V
High Level Output VOH － 0.9×VDD － － V
Low Level Output VOL － － － 0.1×VDD V
Display 50% Pixel on VCC =12.5V － 12 18 mA



Interface Pin Function

No.SymbolFunction
1 ESD_GND ESD Ground pin.
2 VLSS This is an analog ground pin
3 VSS Ground.
4 NC No connection
5 VDD Power supply pin for core logic operation
6 BS1 MCU bus interface selection pins. Select appropriate logic setting as described in the following table. BS2 and BS1 are pin select
 BS1BS2
I2C 1 0
4-wire Serial 0 0
8-bit 68XX Parallel 0 1
8-bit 80XX Parallel 1 1
Note
(1) 0 is connected to VSS
(2) 1 is connected to VDD
7 BS2
8 CS# This pin is the chip select input connecting to the MCU.
The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).
9 RES# This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.
10 D/C# This pin is Data/Command control pin connecting to the MCU.
When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data.
When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register.
In I2C mode, this pin acts as SA0 for slave address selection.
11 R/W# This pin is read / write control input pin connecting to the MCU interface.
When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW.
When 8080 interface mode is selected, this pin will be the Write (WR#) input. Data write operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
12 E/RD# This pin is MCU interface input.
When 6800 interface mode is selected, this pin will be used as the Enable (E) signal.
Read/write operation is initiated when this pin is pulled HIGH and the chip is selected.
When 8080 interface mode is selected, this pin receives the Read (RD#) signal. Read operation is initiated when this pin is pulled LOW and the chip is selected.
When serial or I2C interface is selected, this pin must be connected to VSS.
13-20 D0~D7 These pins are bi-directional data bus connecting to the MCU data bus.
Unused pins are recommended to tie LOW.
When serial interface mode is selected, D0 will be the serial clock input: SCLK; D1 will be the serial data input: SDIN and D2 should be kept NC.
When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
21 IREF This pin is the segment output current reference pin.
IREF is supplied externally.
A resistor should be connected between this pin and VSS to maintain the current around 10uA.
22 VCOMH COM signal deselected voltage level.
A capacitor should be connected between this pin and VSS.
23 VCC Power supply for panel driving voltage. This is also the most positive power voltage supply pin.
24 ESD_GND ESD Ground pin.
