PMOLED 1.12'' Graphic 128x128, Square, White color, COG, 3V, Interface 6800,8080,I2C, Anti-glare

DESCRIPTION

1.12 inch Graphic OLED display featuring COG structure with HotBar FPC; made of resolution 128x128 pixels. This module is built-in with SH1107 IC; it supports 6800/8080 8-bit parallel, 4-Wire SPI, I2C interface, the supply voltage for Logic 3V (typical value), and the supply voltage for display is 12V. The current with 50% checkerboard display is 15mA @ VCC 12V (for white color), 1/128 driving duty.

It is a COG structure OLED display module that is lightweight, low power, and very thin. It is suitable for meter devices, home applications, POS systems, Cloud/IoT systems, handheld instruments, intelligent technology devices, energy systems, automotive, communication systems, medical instruments, etc. Operating temperature from -40℃ to +80℃; storage temperature from -40℃ to +85℃.

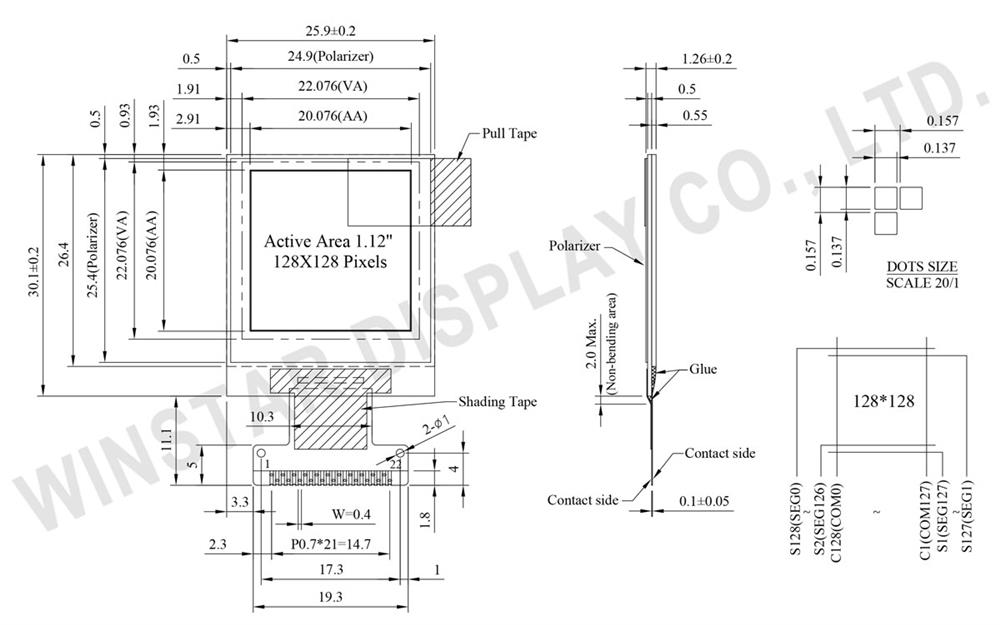

DRAWING

SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 VPP This is the most positive voltage supply pad of the chip.
It should be supplied externally.
2 VCOMH This is a pad for the voltage output high level for common signals.
A capacitor should be connected between this pad and VSS.
3 VDD Power supply for logic and input.
4 NC Not connected.
5 IM1 These are the MPU interface mode select pads.
  8080 I2C 6800 4SPI
IM1 1 1 0 0
IM2 1 0 1 0
6 IM2
7 IREF This is a segment current reference pad. A resistor should be connected between this pad and VSS. Set the current at 15.625mA.
8 CS This pad is the chip select input. When CS = “L”, then the chip select becomes active, and data/command I/O is enabled.
9 RES This is a reset signal input pad. When RES is set to “L”, the settings are initialized. The reset operation is performed by the RES signal level.
10 A0 This is the Data/Command control pad that determines whether the data bits are data or a command.
A0 = “H”: the inputs at D0 to D7 are treated as display data.
A0 = “L”: the inputs at D0 to D7 are transferred to the command registers.
In I2C interface, this pad serves as SA0 to distinguish the different address of OLED driver.
11 WR This is a MPU interface input pad.
When connected to an 8080 MPU, this is active LOW. This pad connects to the 8080 MPU WR signal. The signals on the data bus are latched at the rising edge of the WR signal. When connected to a 6800 Series MPU: This is the read/write control signal input terminal.
When WR = “H”: Read. When WR  = “L”: Write.
12 E/RD This is a MPU interface input pad.
When connected to an 8080 series MPU, it is active LOW. This pad is connected to the RD signal of the 8080 series MPU, and the data bus is in an output status when this signal is “L”.
When connected to a 6800 series MPU, this is active HIGH. This is used as an enable clock input of the 6800 series MPU.
13~20 D0~D7 This is an 8-bit bi-directional data bus that connects to an 8-bit or 16-bit standard MPU data bus.
When the serial interface is selected, then D0 serves as the serial clock input pad (SCL) and D1serves as the serial data input pad (SI). At this time, D2 to D7 are set to high impedance.
When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDA). At this time, D2 to D7 are set to high impedance.
21 GND Ground
22 NC Not connected.



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 × 128 dots
Module dimension 25.9 x 30.1 x 1.26 mm
Active Area 20.076 x 20.076 mm
Pixel Size 0.137 x 0.137 mm
Pixel Pitch 0.157 x 0.157 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/128 Duty
IC SH1107
Interface 6800,8080,4-wire SPI,I2C
Size 1.12 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD -0.3 3.6 V
Supply Voltage for Display VPP -0.3 17.0 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic  VDD － 1.65 3.0 3.3 V
Supply Voltage for Display  VPP － 7.0 12.0 12.5 V
Input High Volt. VIH － 0.8×VDD － VDD V
Input Low Volt. VIL － 0 － 0.2×VDD V
Output High Volt. VOH － 0.8×VDD － VDD V
Output Low Volt. VOL － 0 － 0.2×VDD V
50% Check Board operating Current IPP VPP=12V － 15.0 25.0 mA
