WF101-1024600JL#0SP1B-FC

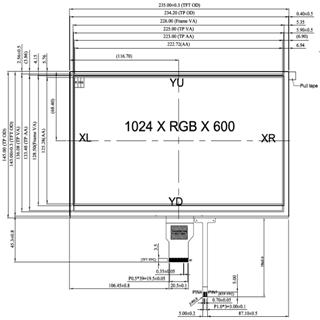

Picture of WF101-1024600JL#0SP1B-FC

TFT 10.1" 1024x600 LCD Panel, Interface LVDS, High Brightness 750cd/m², Wide View Angle (IPS), Resistive touch panel (10.2" RTP)

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

DRAWING

SKU: WF101-1024600JL#0SP1B-FC

Brand: Winstar

Be the first to review this product

Accessory Kit

Display Connector
Touch-Panel Connector

Overview
Product Notifications
Specifications
Download
Contact Us

RECOMMENDED ONLY AS SPARE PARTS

For new projects please contact us at [email protected].

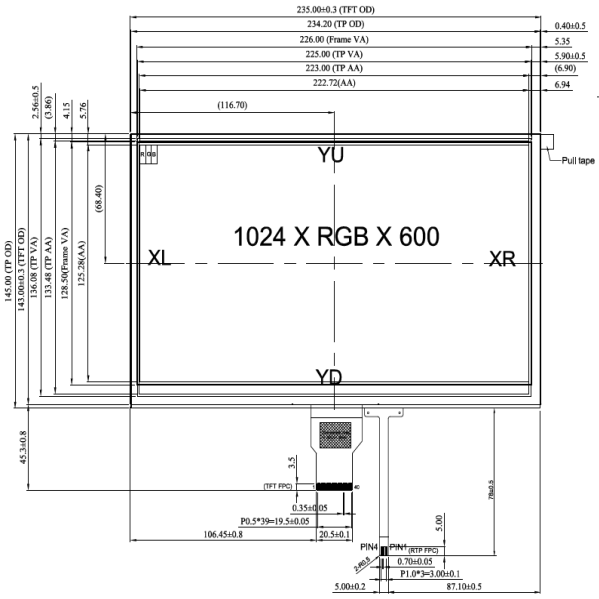

DRAWING

Date	Notice	Link/Description
2026/09/14	EOL	Winstar TFT Series WF18F/G/H, WF40C & WF101*J due to Hannstar Panel End of Life

For more details, please contact us @ [email protected]

Products specifications

Brand	Winstar
Size	10.1"
Resolution	1024x600
Active Area (mm)	222.72x125.28
Color	Full Color
Display Interface	LVDS
Display IC	No
View Angle	IPS
Sunlight Readable	High 601~1200cd/m²
Frame	No
Touch Panel	Resistive
O. Temperature (°C)	-20~70
Display Connection	FPC for ZIF Connector
Pin Nr.	40
Pin Pitch	0.5mm
Preferred - Not Preferred	Not Preferred

Download

Log in or Register to downloads PDF.

Your name

Your email

Enquiry

Products specifications

Brand	Winstar
Size	10.1"
Resolution	1024x600
Active Area (mm)	222.72x125.28
Color	Full Color
Display Interface	LVDS
Display IC	No
View Angle	IPS
Sunlight Readable	High 601~1200cd/m²
Frame	No
Touch Panel	Resistive
O. Temperature (°C)	-20~70
Display Connection	FPC for ZIF Connector
Pin Nr.	40
Pin Pitch	0.5mm
Preferred - Not Preferred	Not Preferred
