WEO12864L#ALP3N00000-FC

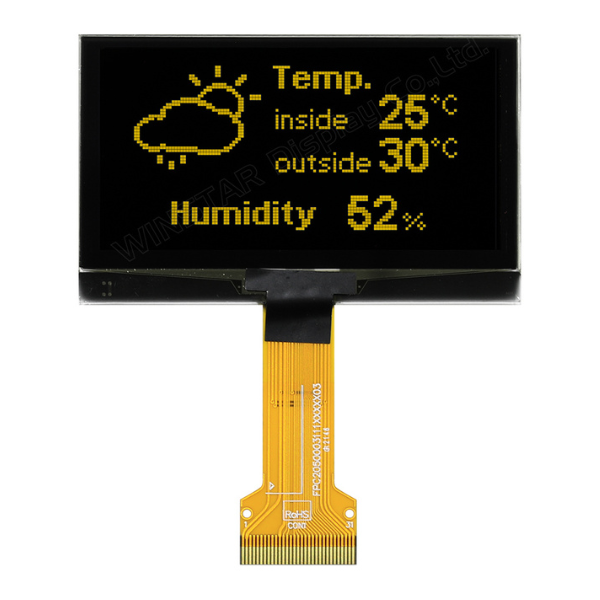

Picture of WEO12864L#ALP3N00000-FC Picture of WEO12864L#ALP3N00000-FC
PMOLED 2.42" Graphic 128x64, Yellow color, COG, 3V, Interface 6800,8080,SPI,I2C, SH1116 IC, Glare

DESCRIPTION

WEO12864x#ALxxxxxxx_FC is a 2.42-inch COG structure graphic OLED display, made of resolution 128x64 pixels. This module is built-in with SH1106 IC; it can be communicated via I2C, 4-wire SPI serial or 6800, 8080 parallel interface and, its 10,000:1 high contrast ratio makes the display image more clear. The supply voltage of logic is 1.65 V~ 3.3 V (typical value 3V), supply voltage for display is 6.4V~ 13.5V (typical value 13V), 1/64 driving duty. WEO12864x#ALxxxxxxx_FC series has PCB board, ZIF FPC, and Hotbar FPC versions optional.

The COG OLED display is very suitable for handheld products, measuring instruments, smart meters, wearable products, IoT devices, etc., due to its thin, light weight and low current consumption features. This module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.

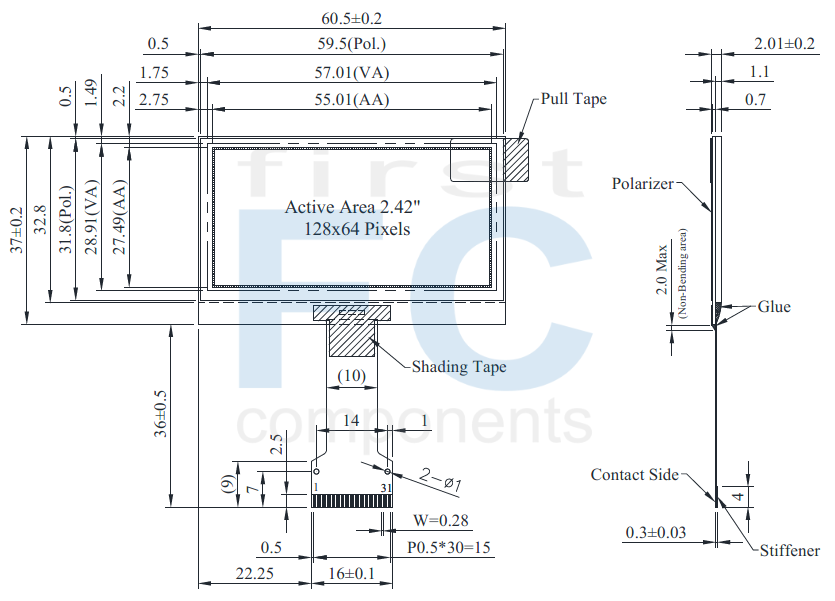

DRAWING

128x64 Graphic 2.42-inch COG OLED Display Module - WEO012864AL



SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 ESD_GND ESD Ground pin
2 VSS Ground.
3-10 NC No connection
11 VDD1 Power supply input
12 IM1 These are the MPU interface mode select pads.
 8080I2C68004-wire SPI
IM1 1 1 0 0
IM2 1 0 1 0
Note
(1) 0 is connected to VSS
(2) 1 is connected to VDD1
13 IM2
14 NC No connection
15 /CS This pad is the chip select input. When /CS= “L”, then the chip select becomes active, and data/command I/O is enabled.
16 /RES This is a reset signal input pad. When /RES is set to “L”, the settings are initialized. The reset operation is performed by the /RES signal level.
17 A0 This is the Data/Command control pad that determines whether the data bits are data or a command.
A0 = “H”: the inputs at D0 to D7 are treated as display data.
A0 = “L”: the inputs at D0 to D7 are transferred to the command registers.
In I2C interface, this pad serves as SA0 to distinguish the different address of OLED driver.
18 /WR
(R/W)		 This is a MPU interface input pad.
When connected to an 8080 MPU, this is active LOW. This pad connects to the 8080 MPU/WR signal. The signals on the data bus are latched at the rising edge of the /WR signal.
When connected to a 6800 Series MPU: This is the read/write control signal input terminal.
When R/W= “H”: Read.
When R/W= “L”: Write.
19 E/RD This is a MPU interface input pad.
When connected to an 8080 series MPU, it is active LOW. This pad is connected to the /RD signal of the 8080 series MPU, and the data bus is in an output status when this signal is “L”.
When connected to a 6800 series MPU, this is active HIGH. This is used as an enable clock input of the 6800 series MPU.
When /RD = “H”: Enable.
When /RD = “L”: Disable.
20~27 D0~D7 This is an 8-bit bi-directional data bus that connects to an 8-bit or 16-bit standard MPU data bus.
When the serial interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SI). At this time, D2 to D7 are set to high impedance.
When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI). At this time, D2 to D7 are set to high impedance.
28 IREF This is a segment current reference pad. A resistor should be connected between this pad and VSS. Set the current at 18.75uA.
29 VCOMH This is a pad for the voltage output high level for common signals.
A capacitor should be connected between this pad and VSS.
30 VPP OLED panel power supply. Generated by internal charge pump.
Connect to capacitor. It could be supplied externally.
31 ESD_GND ESD Ground pin



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 × 64 dots
Module dimension 60.5 × 37.0 × 2.01 mm
Active Area 55.01 × 27.49 mm
Pixel Size 0.40 × 0.40 mm
Pixel Pitch 0.43 × 0.43 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC SH1106
Interface I2C , 4-Wire SPI , 8-bits 6800, 8080
Size 2.42 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD1 -0.3 3.6 V
Supply Voltage for Display VPP -0.3 14.5 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD1 － 1.65 3.0 3.3 V
Supply Voltage for Display VPP － 6.4 13.0 13.5 V
High Level Input VIH － 0.8×VDD1 － VDD1 V
Low Level Input VIL － VSS － 0.2×VDD1 V
High Level Output VOH － 0.8×VDD1 － VDD1 V
Low Level Output VOL － VSS － 0.2×VDD1 V
Display 50% Pixel on IPP VPP =13V － 22 33 mA




SKU: WEO12864L#ALP3N00000-FC
Brand: Winstar
Available: No
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€19.40
€14.20
€13.70
€13.20

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€19.40 excl tax

DESCRIPTION

WEO12864x#ALxxxxxxx_FC is a 2.42-inch COG structure graphic OLED display, made of resolution 128x64 pixels. This module is built-in with SH1106 IC; it can be communicated via I2C, 4-wire SPI serial or 6800, 8080 parallel interface and, its 10,000:1 high contrast ratio makes the display image more clear. The supply voltage of logic is 1.65 V~ 3.3 V (typical value 3V), supply voltage for display is 6.4V~ 13.5V (typical value 13V), 1/64 driving duty. WEO12864x#ALxxxxxxx_FC series has PCB board, ZIF FPC, and Hotbar FPC versions optional.

The COG OLED display is very suitable for handheld products, measuring instruments, smart meters, wearable products, IoT devices, etc., due to its thin, light weight and low current consumption features. This module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃.



DRAWING

128x64 Graphic 2.42-inch COG OLED Display Module - WEO012864AL



SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 ESD_GND ESD Ground pin
2 VSS Ground.
3-10 NC No connection
11 VDD1 Power supply input
12 IM1 These are the MPU interface mode select pads.
 8080I2C68004-wire SPI
IM1 1 1 0 0
IM2 1 0 1 0
Note
(1) 0 is connected to VSS
(2) 1 is connected to VDD1
13 IM2
14 NC No connection
15 /CS This pad is the chip select input. When /CS= “L”, then the chip select becomes active, and data/command I/O is enabled.
16 /RES This is a reset signal input pad. When /RES is set to “L”, the settings are initialized. The reset operation is performed by the /RES signal level.
17 A0 This is the Data/Command control pad that determines whether the data bits are data or a command.
A0 = “H”: the inputs at D0 to D7 are treated as display data.
A0 = “L”: the inputs at D0 to D7 are transferred to the command registers.
In I2C interface, this pad serves as SA0 to distinguish the different address of OLED driver.
18 /WR
(R/W)		 This is a MPU interface input pad.
When connected to an 8080 MPU, this is active LOW. This pad connects to the 8080 MPU/WR signal. The signals on the data bus are latched at the rising edge of the /WR signal.
When connected to a 6800 Series MPU: This is the read/write control signal input terminal.
When R/W= “H”: Read.
When R/W= “L”: Write.
19 E/RD This is a MPU interface input pad.
When connected to an 8080 series MPU, it is active LOW. This pad is connected to the /RD signal of the 8080 series MPU, and the data bus is in an output status when this signal is “L”.
When connected to a 6800 series MPU, this is active HIGH. This is used as an enable clock input of the 6800 series MPU.
When /RD = “H”: Enable.
When /RD = “L”: Disable.
20~27 D0~D7 This is an 8-bit bi-directional data bus that connects to an 8-bit or 16-bit standard MPU data bus.
When the serial interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SI). At this time, D2 to D7 are set to high impedance.
When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI). At this time, D2 to D7 are set to high impedance.
28 IREF This is a segment current reference pad. A resistor should be connected between this pad and VSS. Set the current at 18.75uA.
29 VCOMH This is a pad for the voltage output high level for common signals.
A capacitor should be connected between this pad and VSS.
30 VPP OLED panel power supply. Generated by internal charge pump.
Connect to capacitor. It could be supplied externally.
31 ESD_GND ESD Ground pin



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 × 64 dots
Module dimension 60.5 × 37.0 × 2.01 mm
Active Area 55.01 × 27.49 mm
Pixel Size 0.40 × 0.40 mm
Pixel Pitch 0.43 × 0.43 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC SH1106
Interface I2C , 4-Wire SPI , 8-bits 6800, 8080
Size 2.42 inch



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD1 -0.3 3.6 V
Supply Voltage for Display VPP -0.3 14.5 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD1 － 1.65 3.0 3.3 V
Supply Voltage for Display VPP － 6.4 13.0 13.5 V
High Level Input VIH － 0.8×VDD1 － VDD1 V
Low Level Input VIL － VSS － 0.2×VDD1 V
High Level Output VOH － 0.8×VDD1 － VDD1 V
Low Level Output VOL － VSS － 0.2×VDD1 V
Display 50% Pixel on IPP VPP =13V － 22 33 mA




Products specifications
Brand Winstar
Size 2.42"
Resolution 128x64
Active Area (mm) 55.01x27.49
Dot Size 0.40x0.40
Polarizer Glare
Color Yellow
Power supply 3V
Display Interface 6800/8080/SPI/I2C
Display IC SH1116
Constructive Structure COG
Frame No
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection FPC for ZIF Connector
Pin Nr. 31
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.42"
Resolution 128x64
Active Area (mm) 55.01x27.49
Dot Size 0.40x0.40
Polarizer Glare
Color Yellow
Power supply 3V
Display Interface 6800/8080/SPI/I2C
Display IC SH1116
Constructive Structure COG
Frame No
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection FPC for ZIF Connector
Pin Nr. 31
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Related products

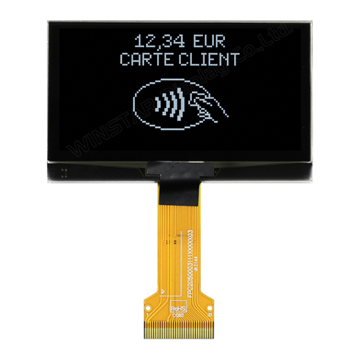

Picture of WEO12864W#ALP3N00000-FC
