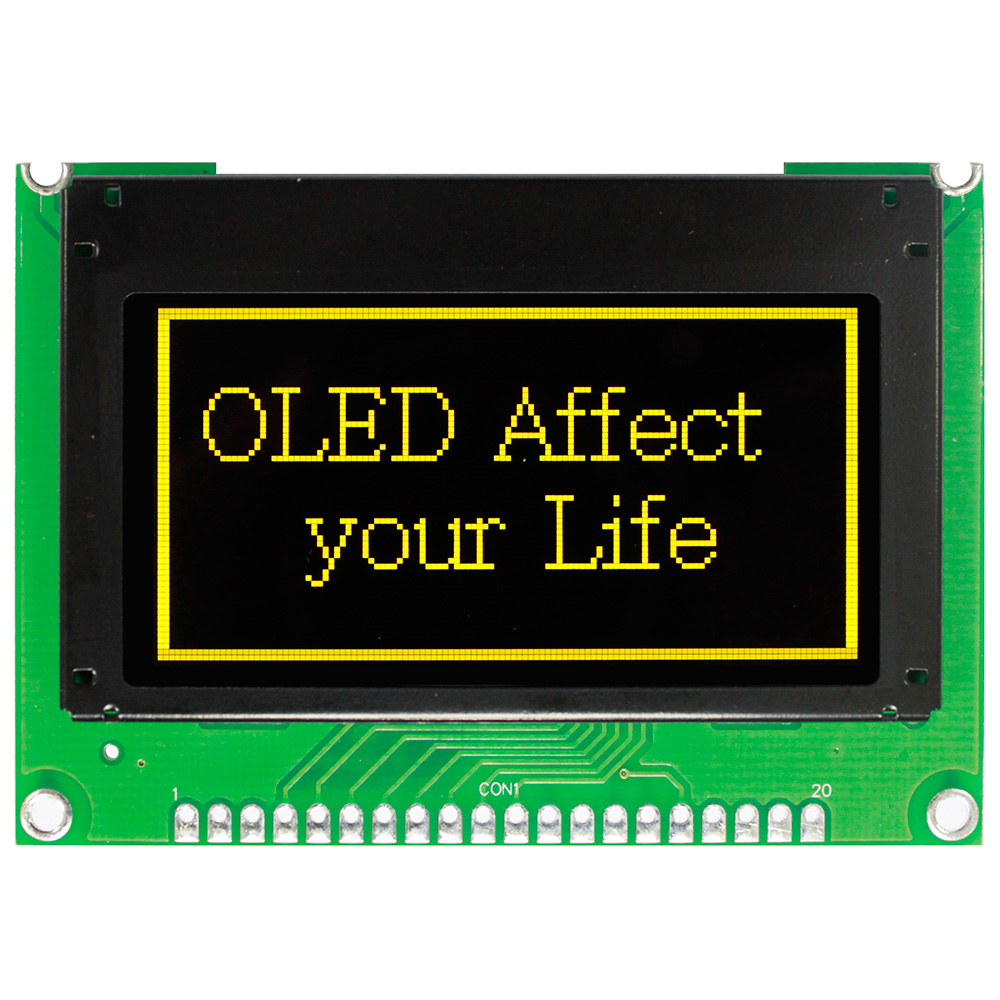

WEO12864L#J05-FC

PMOLED 2.42'' 128x64, Yellow color, COG, 3V, Interface SPI, Frame

DESCRIPTION



The COG OLED 128x64 is one of the most popular resolutions. The Winstar 2.42" graphic display OLED 128x64 module is built-in with SSD1309 IC and it supports hardware command "Segment Remap" and "COM Output Scan Direction" mode.  This display is OLED COG structure but with a PCB on module which made it more easily to fix on customer's application.



DRAWING

Winstar Graphic Display OLED 128x64 - WEO012864J

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VDD Voltage for logic
2 VSS Ground Pin
3 NC No Connection
4~11 D0~D7 Data Bus
12 CS# Chip Select Pin
13 NC No Connection
14 RES# Reset Signal Pin
15 R/W# Read/Write Control
16 D/C# Data/Command Control Pin
17 E Chip Enable Signal
18 NC No Connection
19 DISP Display off
20 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 75.0 × 52.7 mm
Viewing area 57.01 × 29.49 mm
Active area 55.01 × 27.49 mm
Dot pitch 0.43 × 0.43 mm
Dot size 0.40 × 0.40 mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD --- 2.8 3.0 3.3 V



SKU: WEO12864L#J05-FC
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
50+
100+
Price
€22.30
€17.90
€17.70
€16.30
€15.30

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€22.30 excl tax

DESCRIPTION



The COG OLED 128x64 is one of the most popular resolutions. The Winstar 2.42" graphic display OLED 128x64 module is built-in with SSD1309 IC and it supports hardware command "Segment Remap" and "COM Output Scan Direction" mode.  This display is OLED COG structure but with a PCB on module which made it more easily to fix on customer's application.



DRAWING

Winstar Graphic Display OLED 128x64 - WEO012864J

SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 VDD Voltage for logic
2 VSS Ground Pin
3 NC No Connection
4~11 D0~D7 Data Bus
12 CS# Chip Select Pin
13 NC No Connection
14 RES# Reset Signal Pin
15 R/W# Read/Write Control
16 D/C# Data/Command Control Pin
17 E Chip Enable Signal
18 NC No Connection
19 DISP Display off
20 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 75.0 × 52.7 mm
Viewing area 57.01 × 29.49 mm
Active area 55.01 × 27.49 mm
Dot pitch 0.43 × 0.43 mm
Dot size 0.40 × 0.40 mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD --- 2.8 3.0 3.3 V



Products specifications
Brand Winstar
Size 2.42"
Resolution 128x64
Active Area (mm) 55.01x27.49
Dot Size 0.40x0.40
Polarizer Glare
Color Yellow
Power supply 3V
Interface SPI (option 6800 / 8080 / I2C)
Built-in Controller SSD1309Z
Structure COG
Frame Yes
Touch Panel No touch
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.42"
Resolution 128x64
Active Area (mm) 55.01x27.49
Dot Size 0.40x0.40
Polarizer Glare
Color Yellow
Power supply 3V
Interface SPI (option 6800 / 8080 / I2C)
Built-in Controller SSD1309Z
Structure COG
Frame Yes
Touch Panel No touch
Display Connection Soldering PAD
Pin Nr. 20
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
