WEO12864W#G00-FC

Picture of WEO12864W#G00-FC Picture of WEO12864W#G00-FC Picture of WEO12864W#G00-FC
PMOLED 2.42" Graphic 128x64, White color, COG, 3V, Interface 6800,8080,SPI,I2C, SSD1309ZC IC, Glare

RECOMMENDED ONLY AS SPARE PARTS

For new projects please check the related products below or contact us for alternative parts at sales@first-components.com.



DESCRIPTION



Winstar 2.42" OLED made of 12864 pixels COG OLED structure. It is built-in SSD1309 IC, it communicate via 6800, 8080, SPI and I2C interface.  These OLED COG modules are ultra thin, lightweight and low power consumption which is great for handheld instruments, meters, smart grid, IoT, etc.



DRAWING

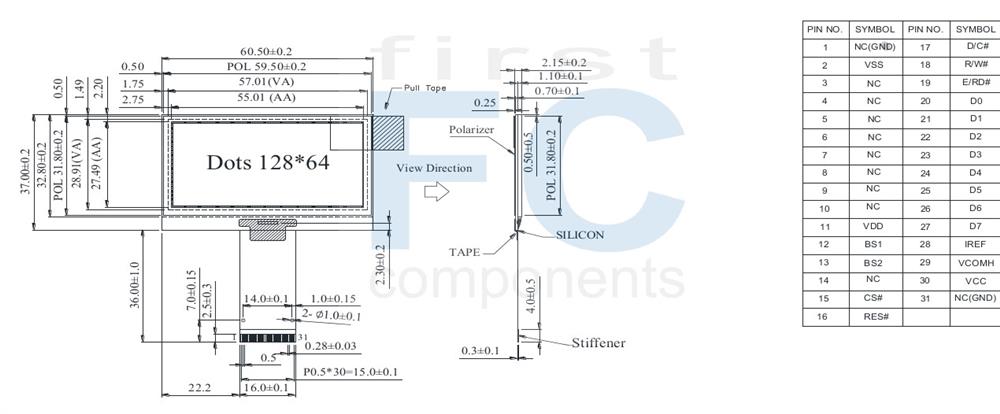

2.42 OLED Graphic Display 128x64 - WEO012864G



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 NC No Connection
2 VSS Ground Oin
3~10 NC No Connection
11 VDD Voltage for logic
12~13 BS1~BS2 Interface selection
14 NC No Connection
15 CS# Chip Select Pin
16 RES# Reset Signal Pin
17 D/C# Data/Command Control Pin
18 R/W# Read/Write Control
19 E/RD# Chip Enable Signal
20~27 D0~D7 Data Bus
28 IREF SEG output current refer pin
29 VCOMH COM deselected level
30 VCC Panel driving voltage
31 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 60.5 × 37.0 mm
Viewing area 57.01 × 28.91 mm
Active area 55.01 × 27.49 mm
Dot pitch 0.43 × 0.43 mm
Dot size 0.40 × 0.40 mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD --- 2.8 3.0 3.3 V



FPC options

FPC LengthPINpitchZIF FPC or HOTBAR FPCInterfaceFPC No.Create Date
37 31 0.5 ZIF 6800,8080,SPI,I2C FPC2050003111XXXXX01 20130625
19.75 31 1 HOTBAR 6800,8080,SPI,I2C FPC2100003101XXXXX02 20140220
37.15 24 0.5 ZIF 6800,8080,SPI,I2C FPC2000502411XXXXX01 20160803
70.85 22 0.5 ZIF 6800,8080,SPI,I2C FPC2050002211XXXXX03 20161228
106.57 30 0.5 ZIF 6800,8080,SPI,I2C FPC2050003011XXXXX11 20180620




SKU: WEO12864W#G00-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
50+
Price
€22.10
€17.70
€17.10
€16.50
€16.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€22.10 excl tax

RECOMMENDED ONLY AS SPARE PARTS

For new projects please check the related products below or contact us for alternative parts at sales@first-components.com.



DESCRIPTION



Winstar 2.42" OLED made of 12864 pixels COG OLED structure. It is built-in SSD1309 IC, it communicate via 6800, 8080, SPI and I2C interface.  These OLED COG modules are ultra thin, lightweight and low power consumption which is great for handheld instruments, meters, smart grid, IoT, etc.



DRAWING

2.42 OLED Graphic Display 128x64 - WEO012864G



SPECIFICATIONS

Interface Pin Function

Pin No.SymbolDescription
1 NC No Connection
2 VSS Ground Oin
3~10 NC No Connection
11 VDD Voltage for logic
12~13 BS1~BS2 Interface selection
14 NC No Connection
15 CS# Chip Select Pin
16 RES# Reset Signal Pin
17 D/C# Data/Command Control Pin
18 R/W# Read/Write Control
19 E/RD# Chip Enable Signal
20~27 D0~D7 Data Bus
28 IREF SEG output current refer pin
29 VCOMH COM deselected level
30 VCC Panel driving voltage
31 NC No Connection



Mechanical Data

ItemDimensionUnit
Module dimension 60.5 × 37.0 mm
Viewing area 57.01 × 28.91 mm
Active area 55.01 × 27.49 mm
Dot pitch 0.43 × 0.43 mm
Dot size 0.40 × 0.40 mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD --- 2.8 3.0 3.3 V



FPC options

FPC LengthPINpitchZIF FPC or HOTBAR FPCInterfaceFPC No.Create Date
37 31 0.5 ZIF 6800,8080,SPI,I2C FPC2050003111XXXXX01 20130625
19.75 31 1 HOTBAR 6800,8080,SPI,I2C FPC2100003101XXXXX02 20140220
37.15 24 0.5 ZIF 6800,8080,SPI,I2C FPC2000502411XXXXX01 20160803
70.85 22 0.5 ZIF 6800,8080,SPI,I2C FPC2050002211XXXXX03 20161228
106.57 30 0.5 ZIF 6800,8080,SPI,I2C FPC2050003011XXXXX11 20180620




Products specifications
Brand Winstar
Size 2.42"
Resolution 128x64
Active Area (mm) 55.01x27.49
Dot Size 0.40x0.40
Polarizer Glare
Color White
Power supply 3V
Display Interface 6800/8080/SPI/I2C
Display IC SSD1309Z
Constructive Structure COG
Frame No
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection FPC per ZIF Connector
Pin Nr. 31
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
