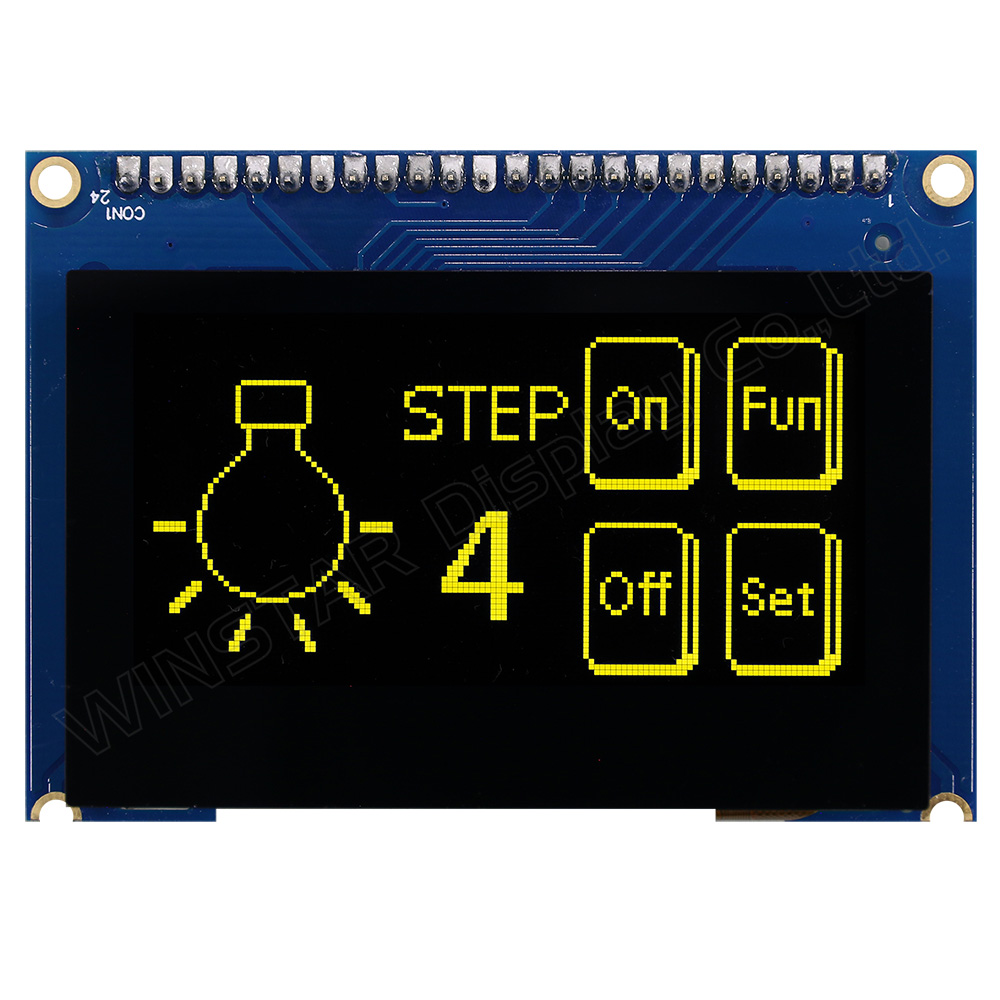

WEO12864L#J0D-FC

PMOLED 2.42'' 128x64, Yellow color, COG, 3V, Interface 6800, Frame, Capacitive touch panel (GT911)

DESCRIPTION



Popular size 2.42 inch Graphic OLED display with Capacitive Touch Screen on module; which is made of resolution 128x64 dots. This module is built in with SSD1309 IC, it supports 6800 8-bit parallel interface, optional 8080 parallel, 4-wire SPI and I2C interface, supply voltage for Logic 3V, 1/64 driving duty. This model is built in with GT911 touch panel IC on module, which supports I2C interface, one Detect Point for Capacitive Touch Screen.

This 2.42" WEO012864J with CTP model is ideal for smart home applications, intelligent technology devices, energy systems, meter devices, communication systems, medical instrument, etc. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.

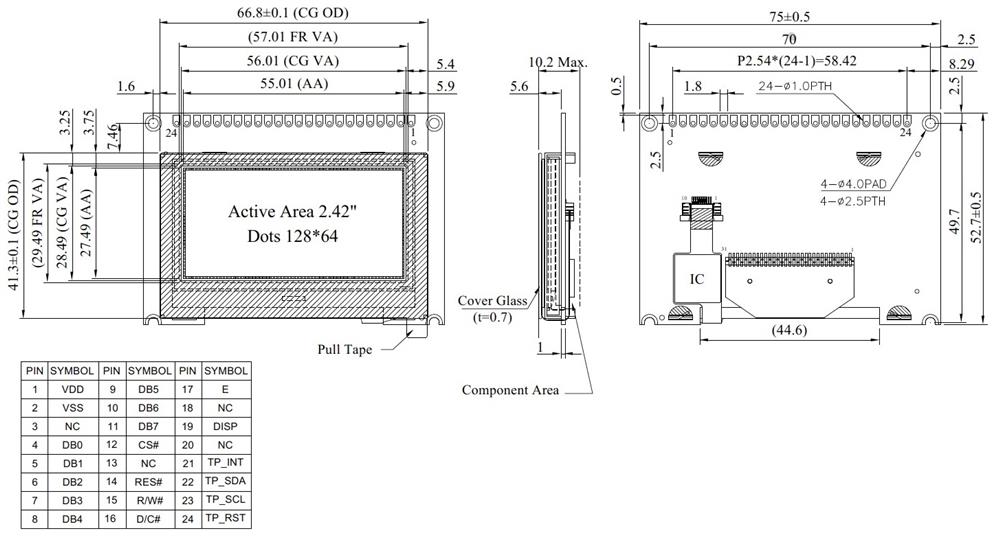

DRAWING

12864, 2.42 inch OLED Display Module with Capacitive Touch Panel - WEO012864J-CTP





SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 VDD Power supply pin for core logic operation
2 VSS Ground.
3 NC(GND) No connection
4~11 D0~D7 These pins are bi-directional data bus connecting to the MCU data bus.
Unused pins are recommended to tie LOW.
12 CS# This pin is the chip select input connecting to the MCU.
The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).
13 NC(GND) No connection
14 RES# This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.
15 R/W# This pin is read / write control input pin connecting to the MCU interface.
When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW.
16 D/C# This pin is Data/Command control pin connecting to the MCU.
When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data.
When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register.
17 E This pin is MCU interface input.
When 6800 interface mode is selected, this pin will be used as the Enable (E) signal.
18 NC(GND) No connection
19 DISP No Connection
20 NC(GND) No connection
21 TP_INT Interrupt signal, active low, asserted to request
Host start a new transaction
22 TP_SDA I2C data signal
23 TP_SCL I2C clock signal
24 TP_RST External reset signal, active low



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 x 64
Module dimension 75.0 × 52.7 ×10.2 MAX mm
Active Area 55.01 × 27.49 mm
Pixel Size 0.40 × 0.40 mm
Pixel Pitch 0.43 × 0.43 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC SSD1309
Interface 8Bits 6800 , Optional 8080 / 4-SPI / I2C
Size 2.42 inch
PCAP IC GT911
Detect Point 1
PCAP Interface I2C
Surface Normal Glare



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD -0.3 4 V
Operating Temperature TOP -20 +70 °C
Storage Temperature TSTG -30 +80 °C



Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD 2.8 3.0 3.3 V
High Level Input VIH 0.8×VDD V
Low Level Input VIL 0.2×VDD V
High Level Output VOH 0.9×VDD V
Low Level Output VOL 0.1×VDD V
50% Check Board operating Current IDD VDD =3V - 150 300 mA


SKU: WEO12864L#J0D-FC
Brand: Winstar
Available: Yes
Price Breaks
Quantity
1+
5+
10+
Price
€32.60
€26.10
€25.60

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€32.60 excl tax

DESCRIPTION



Popular size 2.42 inch Graphic OLED display with Capacitive Touch Screen on module; which is made of resolution 128x64 dots. This module is built in with SSD1309 IC, it supports 6800 8-bit parallel interface, optional 8080 parallel, 4-wire SPI and I2C interface, supply voltage for Logic 3V, 1/64 driving duty. This model is built in with GT911 touch panel IC on module, which supports I2C interface, one Detect Point for Capacitive Touch Screen.

This 2.42" WEO012864J with CTP model is ideal for smart home applications, intelligent technology devices, energy systems, meter devices, communication systems, medical instrument, etc. Operating temperatures from -20℃ to +70℃; storage temperatures range from -30℃ to +80℃.



DRAWING

12864, 2.42 inch OLED Display Module with Capacitive Touch Panel - WEO012864J-CTP





SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 VDD Power supply pin for core logic operation
2 VSS Ground.
3 NC(GND) No connection
4~11 D0~D7 These pins are bi-directional data bus connecting to the MCU data bus.
Unused pins are recommended to tie LOW.
12 CS# This pin is the chip select input connecting to the MCU.
The chip is enabled for MCU communication only when CS# is pulled LOW (active LOW).
13 NC(GND) No connection
14 RES# This pin is reset signal input.
When the pin is pulled LOW, initialization of the chip is executed.
Keep this pin pull HIGH during normal operation.
15 R/W# This pin is read / write control input pin connecting to the MCU interface.
When 6800 interface mode is selected, this pin will be used as Read/Write (R/W#) selection input. Read mode will be carried out when this pin is pulled HIGH and write mode when LOW.
16 D/C# This pin is Data/Command control pin connecting to the MCU.
When the pin is pulled HIGH, the data at D[7:0] will be interpreted as data.
When the pin is pulled LOW, the data at D[7:0] will be transferred to a command register.
17 E This pin is MCU interface input.
When 6800 interface mode is selected, this pin will be used as the Enable (E) signal.
18 NC(GND) No connection
19 DISP No Connection
20 NC(GND) No connection
21 TP_INT Interrupt signal, active low, asserted to request
Host start a new transaction
22 TP_SDA I2C data signal
23 TP_SCL I2C clock signal
24 TP_RST External reset signal, active low



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 x 64
Module dimension 75.0 × 52.7 ×10.2 MAX mm
Active Area 55.01 × 27.49 mm
Pixel Size 0.40 × 0.40 mm
Pixel Pitch 0.43 × 0.43 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC SSD1309
Interface 8Bits 6800 , Optional 8080 / 4-SPI / I2C
Size 2.42 inch
PCAP IC GT911
Detect Point 1
PCAP Interface I2C
Surface Normal Glare



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD -0.3 4 V
Operating Temperature TOP -20 +70 °C
Storage Temperature TSTG -30 +80 °C



Electronical Characteristics

DC Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD 2.8 3.0 3.3 V
High Level Input VIH 0.8×VDD V
Low Level Input VIL 0.2×VDD V
High Level Output VOH 0.9×VDD V
Low Level Output VOL 0.1×VDD V
50% Check Board operating Current IDD VDD =3V - 150 300 mA


Products specifications
Brand Winstar
Size 2.42"
Resolution 128x64
Active Area (mm) 55.01x27.49
Dot Size 0.40x0.40
Polarizer Glare
Color Yellow
Power supply 3V
Interface 8080 (option 6800 / SPI / I2C)
Built-in Controller SSD1309Z
Structure COG
Frame Yes
Touch Panel Capacitive
Display Connection Soldering PAD
Pin Nr. 24
Pin Pitch 2.54mm
Preferred - Not Preferred Preferred
