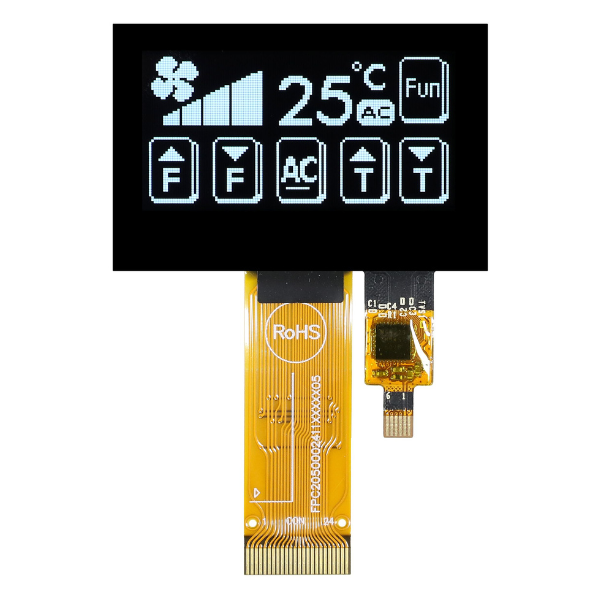

WEO12864W#AHP3D00000-FC

PMOLED 1.54" Graphic 128x64, White color, COG, 3V, Interface 6800,8080,I2C,SPI, SH1106 IC, Glare, Capacitive Touch Panel Interface I2C (IC FT6336U)

DESCRIPTION

WEO12864W#AHP3D00000-FC is a 1.54-inch COG 128x64 graphic OLED display module. This OLED module is built-in with SH1106 IC; it can be communicated via I2C, 4-wire SPI, 6800 or 8080 interface. The supply voltage of logic is 1.65 V~ 3.3 V, and the typical value is 3.0V, supply voltage for display is 6.4V~ 13V(typical value 12.5V), 1/64 driving duty.

The WEO12864X#AHXXXXXXXX-FC series 1.54-inch OLED modules from Winstar are ideal for a wide range of applications, including medical devices (pulse oximeter), consumer electronics (MP3 player, wireless microphone receiver), testing equipment (USB voltmeter) and industrial automation.

Key Features and Benefits:
High-quality displays: The WEO12864X#AHXXXXXXXX-FC series offers high-quality OLED displays with excellent color accuracy, high contrast ratio (10,000:1), and resolution (128x64 dots) .
Compact size: The modules are designed with a compact size of 1.54 inches, making them ideal for use in portable devices and wearables.

Applications:
Medical devices: The WEO12864X#AHXXXXXXXX-FC series is ideal for use in medical devices such as blood glucose meters, blood pressure monitors, and other healthcare devices.
Consumer electronics: The modules are suitable for use in a variety of consumer electronics, including smartwatches, fitness trackers, electronic vernier caliper and other wearables.
Industrial automation: The OLED displays can be used in industrial automation applications such as temperature and humidity sensors, and other monitoring devices.
Smart home devices: The modules can be used in smart home devices such as lighting systems, and other IoT devices.

This module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃. WEO12864X#AHXXXXXXXX-FC series has different ZIF FPC; currently, we provide 24 pins and 30 pins optional if customs require custom FPC, welcome to contact us.



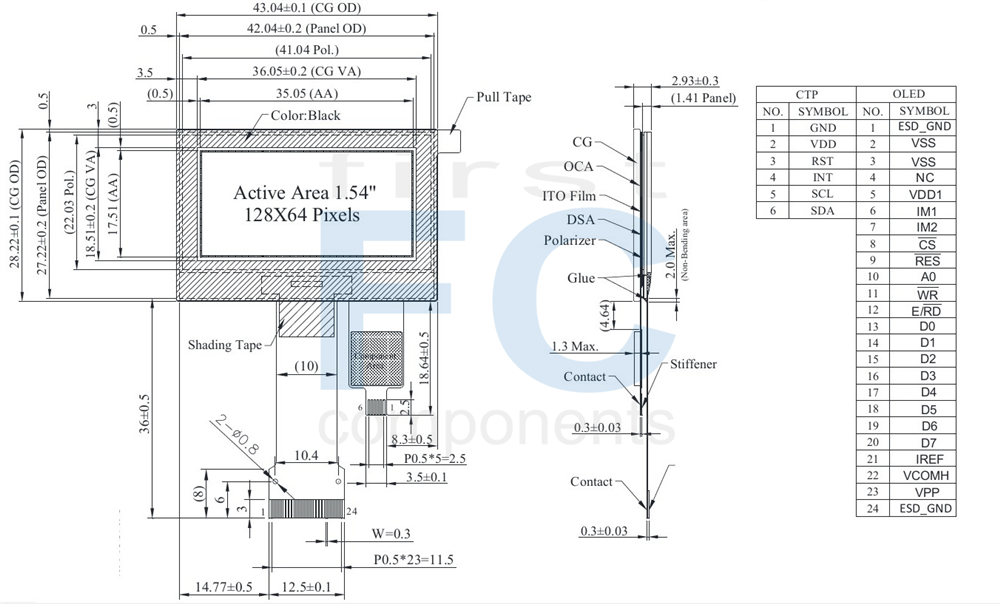

DRAWING



SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 ESD_GND ESD Ground pin
2 VSS Ground.
3 VSS Ground.
4 NC No connection
5 VDD1 Power supply input
6 IM1 These are the MPU interface mode select pads.
 8080I2C68004-wire SPI
IM1 1 1 0 0
IM2 1 0 1 0
Note
(1) 0 is connected to VSS
(2) 1 is connected to VDD1
7 IM2
8 /CS This pad is the chip select input. When /CS = “L”, then the chip select becomes active, and data/command I/O is enabled.
9 /RES This is a reset signal input pad. When /RES is set to “L”, the settings are initialized. The reset operation is performed by the /RES signal level.
10 A0 This is the Data/Command control pad that determines whether the data bits are data or a command.
A0 = “H”: the inputs at D0 to D7 are treated as display data.
A0 = “L”: the inputs at D0 to D7 are transferred to the command registers.
In I2C interface, this pad serves as SA0 to distinguish the different address of OLED driver.
11 /WR
(R/W)		 This is a MPU interface input pad.
When connected to an 8080 MPU, this is active LOW. This pad connects to the 8080 MPU /WR signal. The signals on the data bus are latched at the rising edge of the /WR signal.
When connected to a 6800 Series MPU: This is the read/write control signal input terminal.
When R/= “H”: Read.
When R/W= “L”: Write.
12 E/RD This is a MPU interface input pad.
When connected to an 8080 series MPU, it is active LOW. This pad is connected to the /RD signal of the 8080 series MPU, and the data bus is in an output status when this signal is “L”.
When connected to a 6800 series MPU, this is active HIGH. This is used as an enable clock input of the 6800 series MPU.
When /RD = “H”: Enable.
When /RD = “L”: Disable.
13-20 D0~D7 This is an 8-bit bi-directional data bus that connects to an 8-bit or 16-bit standard MPU data bus.
When the serial interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SI). At this time, D2 to D7 are set to high impedance.
When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI). At this time, D2 to D7 are set to high impedance.
21 IREF This is a segment current reference pad. A resistor should be connected between this pad and VSS. Set the current at 18.75uA.
22 VCOMH This is a pad for the voltage output high level for common signals.
A capacitor should be connected between this pad and VSS.
23 VPP OLED panel power supply. Generated by internal charge pump.
Connect to capacitor. It could be supplied externally.
24 ESD_GND ESD Ground pin



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 × 64 dots
Module dimension 42.04 × 27.22 × 1.41 mm
Active Area 35.05 × 17.51 mm
Pixel Size 0.249 × 0.249 mm
Pixel Pitch 0.274 × 0.274 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC SH1106
Interface 6800,8080,4-wire SPI,I2C
Size 1.54 inch
CTP Driver IC FT6336U
CTP Interface I2C



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD1 -0.3 3.6 V
Supply Voltage for Display VPP -0.3 14.5 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD1 － 1.65 3.0 3.3 V
Supply Voltage for Display VPP － 6.4 12.5 13.0 V
High Level Input VIH － 0.8×VDD1 － VDD1 V
Low Level Input VIL － VSS － 0.2×VDD1 V
High Level Output VOH － 0.8×VDD1 － VDD1 V
Low Level Output VOL － VSS － 0.2×VDD1 V
Display 50% Pixel on IPP VPP =12.5V － 13 20 mA
SKU: WEO12864W#AHP3D00000-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€22.10
€17.70
€17.00

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€22.10 excl tax

DESCRIPTION

WEO12864W#AHP3D00000-FC is a 1.54-inch COG 128x64 graphic OLED display module. This OLED module is built-in with SH1106 IC; it can be communicated via I2C, 4-wire SPI, 6800 or 8080 interface. The supply voltage of logic is 1.65 V~ 3.3 V, and the typical value is 3.0V, supply voltage for display is 6.4V~ 13V(typical value 12.5V), 1/64 driving duty.

The WEO12864X#AHXXXXXXXX-FC series 1.54-inch OLED modules from Winstar are ideal for a wide range of applications, including medical devices (pulse oximeter), consumer electronics (MP3 player, wireless microphone receiver), testing equipment (USB voltmeter) and industrial automation.

Key Features and Benefits:
High-quality displays: The WEO12864X#AHXXXXXXXX-FC series offers high-quality OLED displays with excellent color accuracy, high contrast ratio (10,000:1), and resolution (128x64 dots) .
Compact size: The modules are designed with a compact size of 1.54 inches, making them ideal for use in portable devices and wearables.

Applications:
Medical devices: The WEO12864X#AHXXXXXXXX-FC series is ideal for use in medical devices such as blood glucose meters, blood pressure monitors, and other healthcare devices.
Consumer electronics: The modules are suitable for use in a variety of consumer electronics, including smartwatches, fitness trackers, electronic vernier caliper and other wearables.
Industrial automation: The OLED displays can be used in industrial automation applications such as temperature and humidity sensors, and other monitoring devices.
Smart home devices: The modules can be used in smart home devices such as lighting systems, and other IoT devices.

This module can be operating at temperatures from -40℃ to +80℃; its storage temperatures range from -40℃ to +85℃. WEO12864X#AHXXXXXXXX-FC series has different ZIF FPC; currently, we provide 24 pins and 30 pins optional if customs require custom FPC, welcome to contact us.



DRAWING



SPECIFICATIONS

Interface Pin Function

No.SymbolFunction
1 ESD_GND ESD Ground pin
2 VSS Ground.
3 VSS Ground.
4 NC No connection
5 VDD1 Power supply input
6 IM1 These are the MPU interface mode select pads.
 8080I2C68004-wire SPI
IM1 1 1 0 0
IM2 1 0 1 0
Note
(1) 0 is connected to VSS
(2) 1 is connected to VDD1
7 IM2
8 /CS This pad is the chip select input. When /CS = “L”, then the chip select becomes active, and data/command I/O is enabled.
9 /RES This is a reset signal input pad. When /RES is set to “L”, the settings are initialized. The reset operation is performed by the /RES signal level.
10 A0 This is the Data/Command control pad that determines whether the data bits are data or a command.
A0 = “H”: the inputs at D0 to D7 are treated as display data.
A0 = “L”: the inputs at D0 to D7 are transferred to the command registers.
In I2C interface, this pad serves as SA0 to distinguish the different address of OLED driver.
11 /WR
(R/W)		 This is a MPU interface input pad.
When connected to an 8080 MPU, this is active LOW. This pad connects to the 8080 MPU /WR signal. The signals on the data bus are latched at the rising edge of the /WR signal.
When connected to a 6800 Series MPU: This is the read/write control signal input terminal.
When R/= “H”: Read.
When R/W= “L”: Write.
12 E/RD This is a MPU interface input pad.
When connected to an 8080 series MPU, it is active LOW. This pad is connected to the /RD signal of the 8080 series MPU, and the data bus is in an output status when this signal is “L”.
When connected to a 6800 series MPU, this is active HIGH. This is used as an enable clock input of the 6800 series MPU.
When /RD = “H”: Enable.
When /RD = “L”: Disable.
13-20 D0~D7 This is an 8-bit bi-directional data bus that connects to an 8-bit or 16-bit standard MPU data bus.
When the serial interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SI). At this time, D2 to D7 are set to high impedance.
When the I2C interface is selected, then D0 serves as the serial clock input pad (SCL) and D1 serves as the serial data input pad (SDAI). At this time, D2 to D7 are set to high impedance.
21 IREF This is a segment current reference pad. A resistor should be connected between this pad and VSS. Set the current at 18.75uA.
22 VCOMH This is a pad for the voltage output high level for common signals.
A capacitor should be connected between this pad and VSS.
23 VPP OLED panel power supply. Generated by internal charge pump.
Connect to capacitor. It could be supplied externally.
24 ESD_GND ESD Ground pin



Mechanical Data

ItemDimensionUnit
Dot Matrix 128 × 64 dots
Module dimension 42.04 × 27.22 × 1.41 mm
Active Area 35.05 × 17.51 mm
Pixel Size 0.249 × 0.249 mm
Pixel Pitch 0.274 × 0.274 mm
Display Mode Passive Matrix
Display Color Monochrome
Drive Duty 1/64 Duty
IC SH1106
Interface 6800,8080,4-wire SPI,I2C
Size 1.54 inch
CTP Driver IC FT6336U
CTP Interface I2C



Absolute Maximum Ratings

ParameterSymbolMinMaxUnit
Supply Voltage for Logic VDD1 -0.3 3.6 V
Supply Voltage for Display VPP -0.3 14.5 V
Operating Temperature TOP -40 +80 °C
Storage Temperature TSTG -40 +85 °C



Electronical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage for Logic VDD1 － 1.65 3.0 3.3 V
Supply Voltage for Display VPP － 6.4 12.5 13.0 V
High Level Input VIH － 0.8×VDD1 － VDD1 V
Low Level Input VIL － VSS － 0.2×VDD1 V
High Level Output VOH － 0.8×VDD1 － VDD1 V
Low Level Output VOL － VSS － 0.2×VDD1 V
Display 50% Pixel on IPP VPP =12.5V － 13 20 mA
Products specifications
Brand Winstar
Size 1.54"
Resolution 128x64
Active Area (mm) 35.05x17.51
Dot Size 0.25x0.25
Polarizer Glare
Color White
Power supply 3V
Display Interface 6800/8080/SPI/I2C
Display IC SH1106
Constructive Structure COG
Frame No
Touch Panel Capacitive
O. Temperature (°C) -40~80
Display Connection FPC for ZIF Connector
Pin Nr. 24
Pin Pitch 0.5mm
Touch Panel IC Controller FT6336U
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 1.54"
Resolution 128x64
Active Area (mm) 35.05x17.51
Dot Size 0.25x0.25
Polarizer Glare
Color White
Power supply 3V
Display Interface 6800/8080/SPI/I2C
Display IC SH1106
Constructive Structure COG
Frame No
Touch Panel Capacitive
O. Temperature (°C) -40~80
Display Connection FPC for ZIF Connector
Pin Nr. 24
Pin Pitch 0.5mm
Touch Panel IC Controller FT6336U
Preferred - Not Preferred Preferred
Related products
Picture of WEO12864W#AHA3N00000-FC

WEO12864W#AHA3N00000-FC

PMOLED 1.54" Graphic 128x64, White color, COG, 3V, Interface 6800,8080,I2C,SPI, SH1106 IC, Anti-glare
From €7.40 excl tax

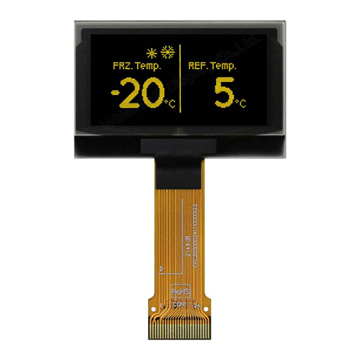

Picture of WEO12864L#AHP3N00000-FC
