WF88-4801920BM#0P0-FC

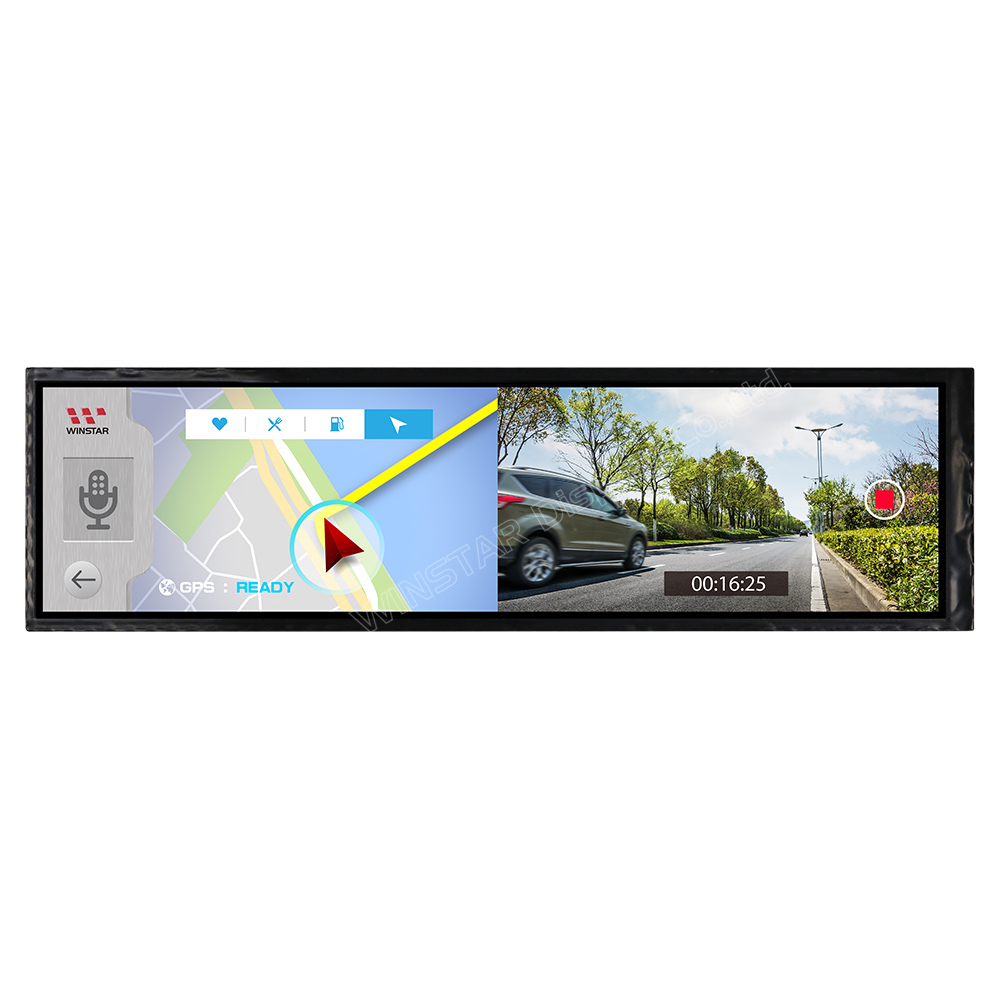

TFT 8.8" 480x1920, Bar Type, MIPI Interface IC OTA7290B, 600cd/m², Wide view angle (IPS), No touch

MOQ

After sample PO, MP MOQ 500pcs

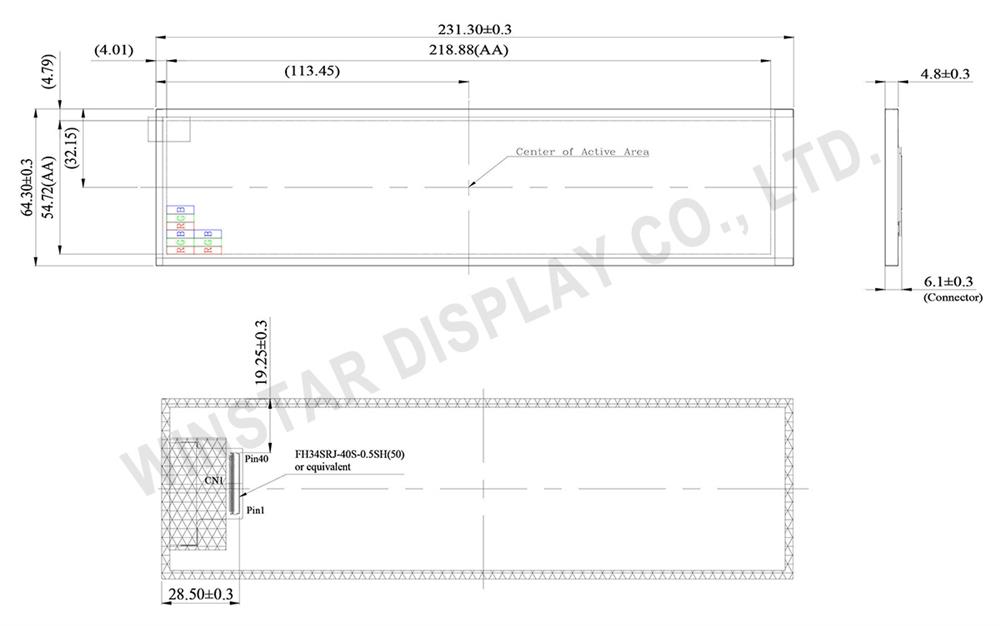

DRAWING

SPECIFICATIONS

Interface Pin Function

Pin No.	Symbol	I/O	Function
1	GND	P	Ground
2	NC	---	No connection
3	LED+	P	LED Anode
4	LED+	P	LED Anode
5	NC	---	No connection
6	LED-	P	LED Cathode
7	LED-	P	LED Cathode
8	NC	---	No connection
9	GND	P	Ground
10	NC	---	No connection
11	AVDD	P	Power supply for analog circuit
12	NC	---	No connection
13	VGH	P	Power supply for analog circuit
14	NC	---	No connection
15	VGL	P	Power supply for analog circuit
16	NC	---	No connection
17	GND	P	Ground
18	VCOM	P	Power supply for common voltage
19	GND	P	Ground
20	GND	P	Ground
21	RESET	I	Global reset
22	VDD	P	Power supply for digital circuits
23	STBYB	I	Standby mode
24	TP_Sync	O	Sync signal for touch panel
25	GND	P	Ground
26	D0P	I	MIPI Data Input Lane0 positive-end
27	D0N	I	MIPI Data Input Lane0 negtive-end
28	GND	P	Ground
29	D1P	I	MIPI Data Input Lane1 positive-end
30	D1N	I	MIPI Data Input Lane1 negtive-end
31	GND	P	Ground
32	CLKP	I	MIPI Clock Input positive-end
33	CLKN	I	MIPI Clock Input negtive-end
34	GND	P	Ground
35	D2P	I	MIPI Data Input Lane2 positive-end
36	D2N	I	MIPI Data Input Lane2 negtive-end
37	GND	P	Ground
38	D3P	I	MIPI Data Input Lane3 positive-end
39	D3N	I	MIPI Data Input Lane3 negtive-end
40	GND	P	Ground

General Specifications

Item	Dimension	Unit
Size	8.8	inch
Dot Matrix	480 × R.G.B. × 1920	dots
Module dimension	231.3 × 64.3 × 4.8	mm
Active area	218.88 × 54.72	mm
Dot pitch	0.114 × 0.114	mm
LCD type	TFT, Normally black, Transmissive
Viewing angle	85/85/85/85
Backlight Type	LED, Normally White
Interface	MIPI DSI
Touch Panel	Without Touch Panel
Surface	Glare

Absolute Maximum Ratings

Item	Symbol	Min	Typ	Max	Unit
Operating Temperature	TOP	-20	－	70	℃
Storage Temperature	TST	-30	－	80	℃

Electrical Characteristics

TFT LCD Module

Item	Symbol	Min	Typ	Max	Unit
Supply Voltage	VDD	3.0	3.3	3.6	V
	VGH	17.0	18.0	19.0	V
	VGL	-11	-10	-9	V
	AVDD	11.8	12	12.2	V
VCOM	VCOM	4.5	4.88	5.2	V
Input signal voltage	ViH	0.7 VDD	-	VDD	V
Input signal voltage	ViL	0	-	0.3 VDD	V
Current of power supply	IDD	-	-	35	mA
	IADD	-	-	30	mA
	IGH	-	-	5	mA
	IGL	-	-	-5	mA
	Ivcom	-	-	0.1	mA

SKU: WF88-4801920BM#0P0-FC

Brand: Winstar

Available: No

Be the first to review this product

Accessory Kit

FFC Cable
Display Connector

Price Breaks

Quantity

10+

Price

€67.00

€60.30

€50.20
