WEO12864W#K08-FC

PMOLED 2,7'' 128x64, White color, COG, 3V, Interface 6800,8080,SPI,I2C (22 pins)

DESCRIPTION

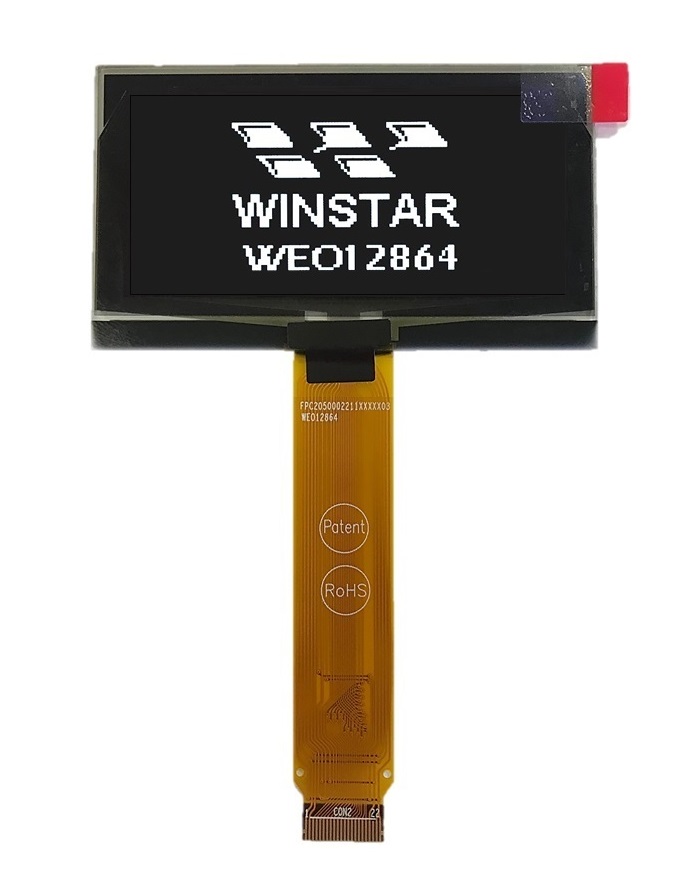

Winstar OLED Monochrome Display made of 128x64 pixels, diagonal size is 2.7 inch. This graphic display is built-in SSD1309 IC which with the module dimension of 73.0 x 41.86 mm and AA size of 61.41 x 30.69 mm. The display is based on a chip-on-glass technology and therefore reaches a very low installation depth of only 2.15 mm.

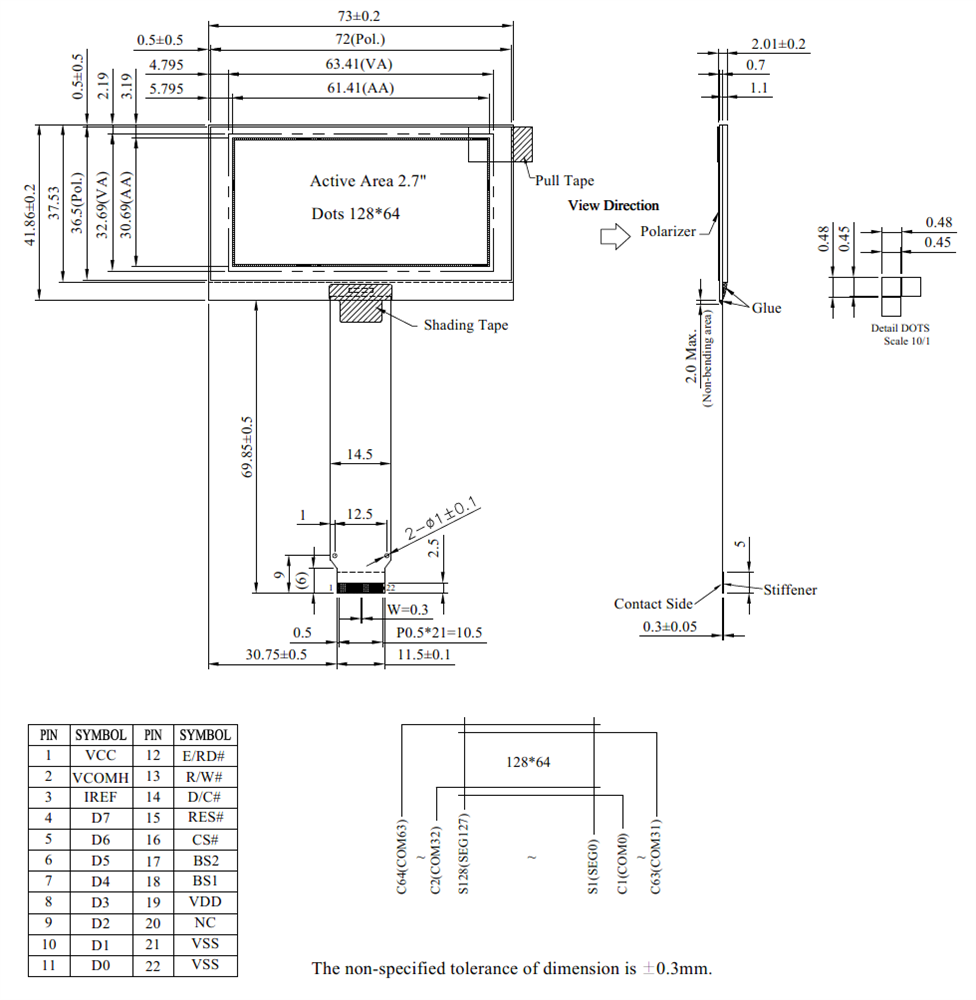

DRAWING



SPECIFICATIONS



Mechanical Data

ItemDimensionUnit
Module dimension 73.0 × 41.86 mm
Viewing area 63.41 × 32.69 mm
Active area 61.41 × 30.69 mm
Dot pitch 0.48 × 0.48 mm
Dot size 0.45 × 0.45 mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD --- 2.8 3.0 3.3 V



FPC options

FPC LengthPINpitchZIF FPC or HOTBAR FPCInterfaceFPC No.Create Date
37 31 0.5 ZIF 6800, 8080, SPI, I2C FPC2050003111XXXXX01 20140923
70.85 22 0.5 ZIF 6800, 8080, SPI, I2C FPC2050002211XXXXX03 20161207
106.57 30 0.5 ZIF 6800, 8080, SPI, I2C FPC2050003011XXXXX11 20170406
43.05 24 0.5 ZIF 6800, 8080, SPI, I2C FPC2050002411XXXXX11 20191218




SKU: WEO12864W#K08-FC
Brand: Winstar
Available: Yes
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€34.00
€31.00
€28.00

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€34.00 excl tax

DESCRIPTION



Winstar OLED Monochrome Display made of 128x64 pixels, diagonal size is 2.7 inch. This graphic display is built-in SSD1309 IC which with the module dimension of 73.0 x 41.86 mm and AA size of 61.41 x 30.69 mm. The display is based on a chip-on-glass technology and therefore reaches a very low installation depth of only 2.15 mm.



DRAWING



SPECIFICATIONS



Mechanical Data

ItemDimensionUnit
Module dimension 73.0 × 41.86 mm
Viewing area 63.41 × 32.69 mm
Active area 61.41 × 30.69 mm
Dot pitch 0.48 × 0.48 mm
Dot size 0.45 × 0.45 mm



Electronical Characteristics

ItemSymbolConditionStandard ValueUnit
MinTypMax
Supply Voltage VDD --- 2.8 3.0 3.3 V



FPC options

FPC LengthPINpitchZIF FPC or HOTBAR FPCInterfaceFPC No.Create Date
37 31 0.5 ZIF 6800, 8080, SPI, I2C FPC2050003111XXXXX01 20140923
70.85 22 0.5 ZIF 6800, 8080, SPI, I2C FPC2050002211XXXXX03 20161207
106.57 30 0.5 ZIF 6800, 8080, SPI, I2C FPC2050003011XXXXX11 20170406
43.05 24 0.5 ZIF 6800, 8080, SPI, I2C FPC2050002411XXXXX11 20191218




Products specifications
Brand Winstar
Size 2.7"
Resolution 128x64
Active Area (mm) 61.41x30.69
Dot Size 0.45x0.45
Polarizer Glare
Color White
Power supply 3V
Interface 6800/8080/SPI/I2C
Built-in Controller SSD1309
Structure COG
Frame No
Touch Panel No touch
Display Connection FPC per ZIF Connector
Pin Nr. 22
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
