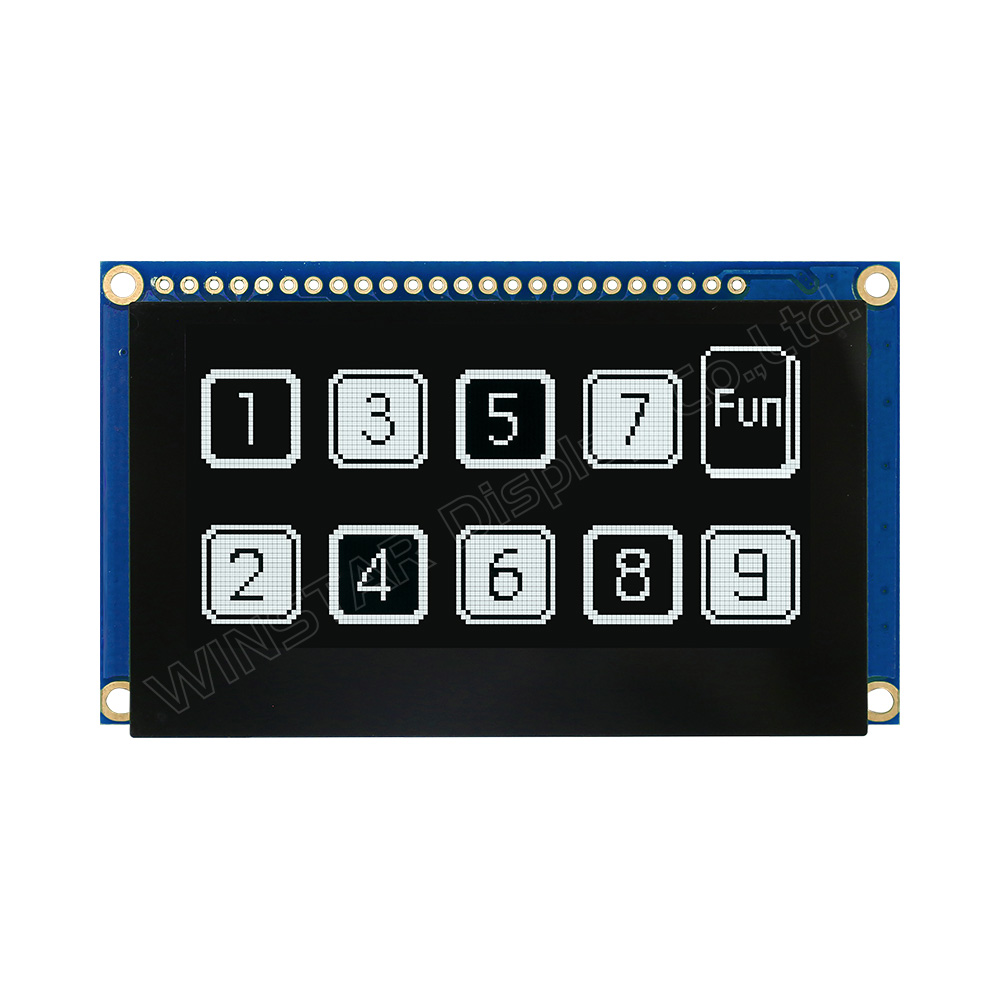

COG Graphic OLED with Capacitive Touch Panel, diagonal size 2.7 inch, made of 128x64 pixels. This OLED module is built-in with SSD1309 IC; it supports 6800/8080 8-bit parallel, I2C, and 4-Wire SPI interface, supply voltage for logic 3V, the display with 50% Check board current is 175mA @3.0V VDD (typical value), driving duty 1/64. This model is having Capacitive Touch Panel on module; it is built-in with GT911 IC which supports I2C interface, one detect point for CTP, normal glare surface glass. The module is having PCB board on module which is suitable for customers to use wire connection; customers do not need to develop extra PCB for their applications. Also, we integrated VCC circuit on PCB to make it easier for customers to use.
This model is a COG OLED display with a PCB on module. This PCB board with four mounting holes is an easy method for customers to fix modules on their applications. This OLED module is suitable for smart home application, medical device, industrial control, etc. Operating temperature from -20℃ to +70℃; storage temperature from -30℃ to +80℃.
For quantities above 25 pcs pls send your enquiry to email@example.com or call +39 0332 1888005
