WEO2002L#AP5N00F00-FC

PMOLED 2.93'' 20x2, Yellow color, COG, 5V, Interface 6800,8080,SPI,I2C, Glare (FPC per Zif)

DESCRIPTION

Winstar Display standard 20x2 OLED COG Character module is built-in SSD1311 IC; it supports 6800/8080 8-bit parallel and I2C/4-wire serial interface.  We suggest customers to consider using this low power 20x2 character OLED to upgrade your existing LCD character display.

  • Faster response time "At +25 ℃ 10 μsec."
  • Unlimited viewing angle "Up to 175 degree"
  • Thin – No need of backlight, self emitting
  • High Brightness
  • High contrast ratio "Up to 2000:1"
  • Wide Operation Temperature
  • Lower power consumption - reduce CO2emissions

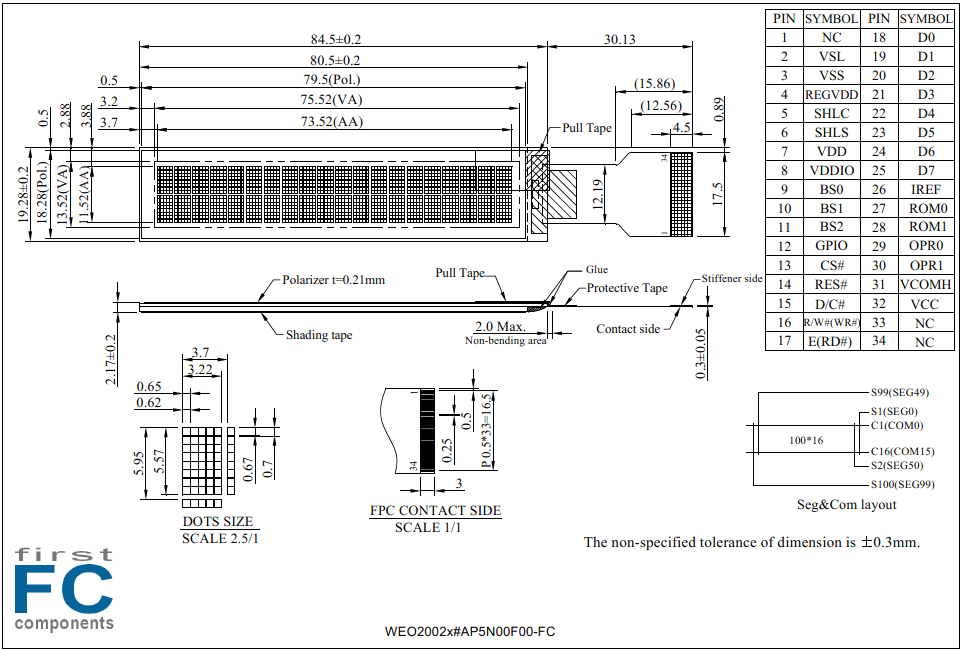

DRAWING






FPC options

DrawingFPC LengthPINpitchZIF FPC or HOTBAR FPCInterfaceFPC No.Create Date
FPC2070003111XXXXX01_WEO002002ALPP3N00001 34.9 31 0.7 HOTBAR FPC 6800, 8080, SPI, I2C FPC2070003111XXXXX01 20160817
FPC2005003421XXXXX00_WEO002002ASPP3N00F00 30.1 34 0.5 ZIF FPC 6800, 8080, SPI, I2C FPC2005003421XXXXX00 20180313



SKU: WEO2002L#AP5N00F00-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
25+
Price
€15.30
€11.20
€10.80
€10.50

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€15.30 excl tax

DESCRIPTION

Winstar Display standard 20x2 OLED COG Character module is built-in SSD1311 IC; it supports 6800/8080 8-bit parallel and I2C/4-wire serial interface.  We suggest customers to consider using this low power 20x2 character OLED to upgrade your existing LCD character display.

  • Faster response time "At +25 ℃ 10 μsec."
  • Unlimited viewing angle "Up to 175 degree"
  • Thin – No need of backlight, self emitting
  • High Brightness
  • High contrast ratio "Up to 2000:1"
  • Wide Operation Temperature
  • Lower power consumption - reduce CO2emissions



DRAWING






FPC options

DrawingFPC LengthPINpitchZIF FPC or HOTBAR FPCInterfaceFPC No.Create Date
FPC2070003111XXXXX01_WEO002002ALPP3N00001 34.9 31 0.7 HOTBAR FPC 6800, 8080, SPI, I2C FPC2070003111XXXXX01 20160817
FPC2005003421XXXXX00_WEO002002ASPP3N00F00 30.1 34 0.5 ZIF FPC 6800, 8080, SPI, I2C FPC2005003421XXXXX00 20180313



Products specifications
Brand Winstar
Size 2.93"
Resolution 20x2
Active Area (mm) 73.52x11.52
Dot Size 0.62x0.67
Polarizer Glare
Color White
Power supply 5V
Display Interface 6800/8080/SPI/I2C
Display IC SSD1311M1Z
Constructive Structure COG
Frame No
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection FFC per ZIF Connector
Pin Nr. 34
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
Download
Products specifications
Brand Winstar
Size 2.93"
Resolution 20x2
Active Area (mm) 73.52x11.52
Dot Size 0.62x0.67
Polarizer Glare
Color White
Power supply 5V
Display Interface 6800/8080/SPI/I2C
Display IC SSD1311M1Z
Constructive Structure COG
Frame No
Touch Panel No touch
O. Temperature (°C) -40~80
Display Connection FFC per ZIF Connector
Pin Nr. 34
Pin Pitch 0.5mm
Preferred - Not Preferred Preferred
