WEO9616W#BP3N0Y000-FC

PMOLED 0.69'' Graphic 96x16, White color, COG, 3V, Interface I2C, Glare, Consumer grade (FPC per Soldering)

DESCRIPTION

Consumer-grade COG OLED display, diagonal size 0.69 inch, made of resolution 96x16 pixels. This 0.69 inch OLED Display module is built-in with SSD1306 IC; it supports the I2C interface, the supply voltage for logic 3V (VDD), the supply voltage for display 7.5V (VCC), the display with 50% Checkboard current is 5mA @7.5V VCC (typical value), driving duty 1/16.

This model is a small-size 0.69 inch COG OLED display that is ultra-thin, lightweight, and has low power consumption. It is very suitable for smart home applications, medical devices, portable devices, wearable devices, etc. It can be operated at temperatures from -30℃ to +70℃; its storage temperatures range from -30℃ to +70℃.

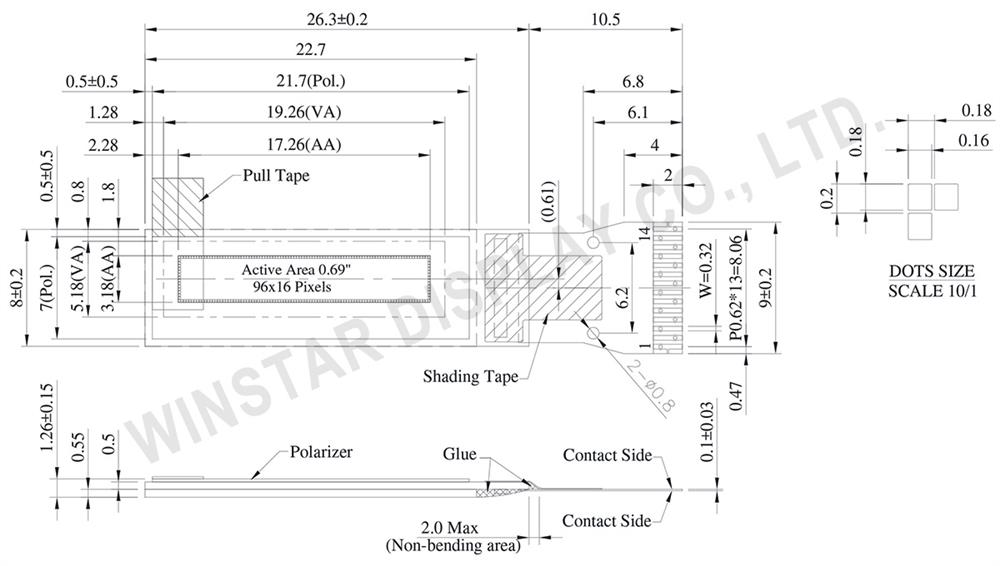

DRAWING

SPECIFICATIONS

Interface Pin Function

No.	Symbol	Function
1	C2N	C1P/C1N – Pin for charge pump capacitor; Connect to each other with a capacitor. C2P/C2N – Pin for charge pump capacitor; Connect to each other with a capacitor.
2	C2P
3	C1P
4	C1N
5	VBAT	This is the power supply pin for the internal buffer of the DC/DC voltage converter. It must be connected to external source when the converter is used. It should be connected to VDD when the converter is not used.
6	NC	No connection
7	VSS	This is a ground pin.
8	VDD	Power supply pin for core logic operation.
9	RES#	This pin is reset signal input. When the pin is low, initialization of the chip is executed. Keep this pin HIGH (i.e. connect to VDD) during normal operation.
10	SCL	When I2C mode is selected, D2, D1 should be tied together and serve as SDAout, SDAin in application and D0 is the serial clock input, SCL.
11	SDA
12	IREF	This pin is segment current reference pin. A resistor should be connected between this pin and VSS. Set the current lower than 30uA. When internal IREF is used, this pin should be kept NC.
13	VCOMH	The pin for COM signal deselected voltage level. A capacitor should be connected between this pin and VSS.
14	VCC	This is the most positive voltage supply pin of the chip. A stabilization capacitor should be connected between this pin and VSS when the converter is used. It must be connected to external source when the converter is not used.

Mechanical Data

Item	Dimension	Unit
Dot Matrix	96 × 16 Dots	－
Module dimension	26.3 × 8.0 × 1.26	mm
Active Area	17.26 × 3.18	mm
Pixel Size	0.16 × 0.18	mm
Pixel Pitch	0.18 × 0.20	mm
Display Mode	Passive Matrix
Display Color	Monochrome
Drive Duty	1/16 Duty
IC	SSD1306
Interface	I2C
Size	0.69 inch

Absolute Maximum Ratings

Parameter	Symbol	Min	Max	Unit
Supply Voltage for Logic	VDD	0	4	V
Supply Voltage for Display	VCC	0	16	V
Charge Pump Regulator Supply Voltage	VBAT	0	5	V
Operating Temperature	TOP	-30	70	°C
Storage Temperature	TSTG	-30	70	°C

Electronical Characteristics

DC Electrical Characteristics

Item	Symbol	Condition	Min	Typ	Max	Unit
Supply Voltage for Logic	VDD	－	1.65	3.0	3.3	V
Supply Voltage for Display (Supplied Externally)	VCC	－	6.0	7.5	8.0	V
Charge Pump Regulator Supply Voltage	VBAT	－	3.0	－	4.2	V
Charge Pump Output Voltage for Display (Generated by Internal DC/DC)	Charge Pump VCC	－	7.0	7.5	－	V
Input High Volt.	VIH	－	0.8×VDD	－	VDD	V
Input Low Volt.	VIL	－	0	－	0.2×VDD	V
Output High Volt.	VOH	－	0.9×VDD	－	VDD	V
Output Low Volt.	VOL	－	0	－	0.1×VDD	V
50% check Board operating Current (VCC Supplied Externally)	ICC	－	－	5	10	mA
50% check Board operating Current (VCC Generated by Internal DC/DC)	IBAT	－		5	10	mA

SKU: WEO9616W#BP3N0Y000-FC

Brand: Winstar

Available: No

Be the first to review this product

Price Breaks

Quantity

10+

25+

Price

€3.20

€2.30

€2.20

For quantities above 25 pcs pls send your enquiry to sales@first-components.com or call +39 0332 1888005

€3.20 excl tax
