WF102-800480AD#0W0-FC

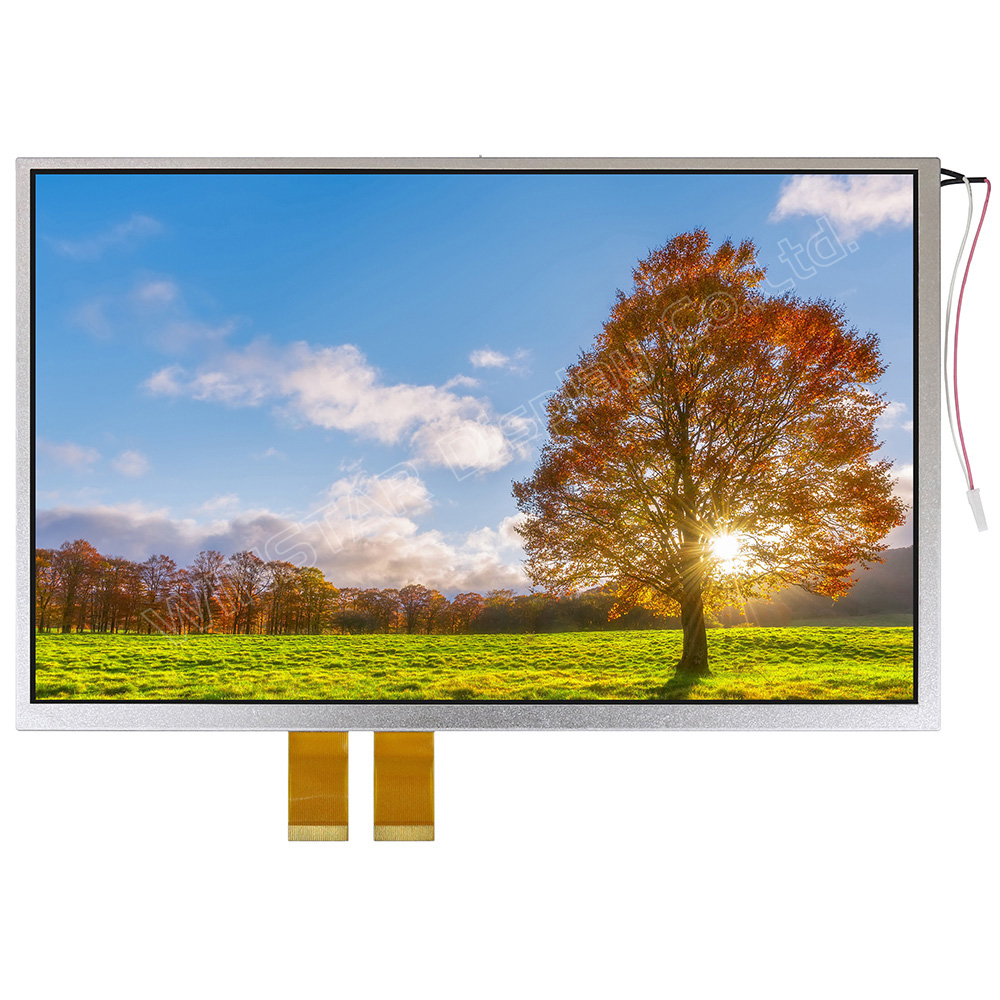

Picture of WF102-800480AD#0W0-FC Picture of WF102-800480AD#0W0-FC
TFT 10.2" 800x480 LCD Panel, Interface RGB, 350cd/m², Super extended Temperature, No touch

DESCRIPTION

10.2” wide temperature TFT LCD display. Module dimension of 235 x 145.8 mm, AA size of 222 x 132.48 mm and resolution 800 RGB x 480 dots. Operating temperature from–30℃ to +85℃.

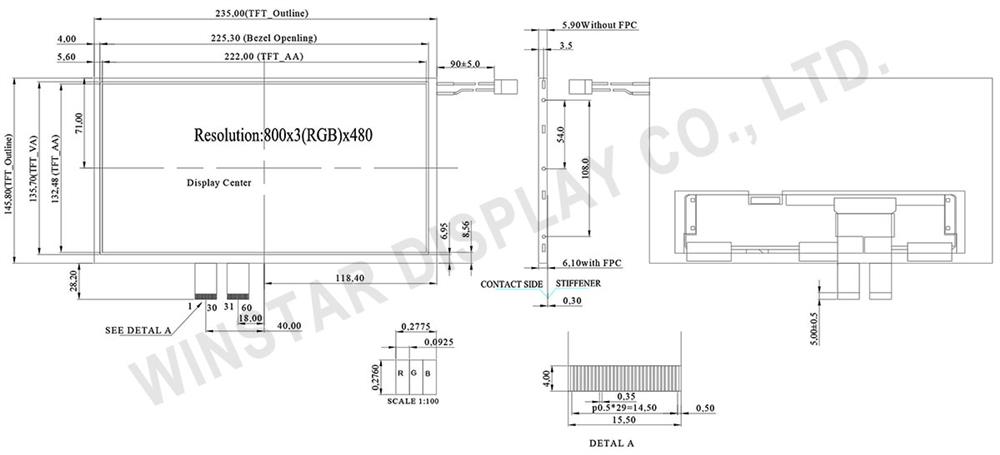

DRAWING




SPECIFICATIONS



Interface

Pin No.SymbolI/OFunction
1 POL I Polarity selection
2 STVD I/O Vertical start pulse input when U/D= H
3 OEV I Output enable
4 CKV I Vertical clock
5 STVU I/O Vertical start pulse input when U/D= L
6 GND P Power ground
7 EDGSL I Select rising edge or rising/falling edge
8 VCC P Power supply for digital circuit
9 V9 I Gamma voltage level 9
10 VGL P Gate OFF voltage
11 V2 I Gamma voltage level 2
12 VGH P Gate ON voltage
13 V6 I Gamma voltage level 6
14 U/D I Up/down selection
15 VCOM I Common voltage
16 GND P Power ground
17 AVDD P Power supply for analog circuit
18 V14 I Gamma voltage level 14
19 V11 I Gamma voltage level 11
20 V8 I Gamma voltage level 8
21 V5 I Gamma voltage level 5
22 V3 I Gamma voltage level 3
23 GND P Power ground
24 R5 I Red data(MSB)
25~28 R4~R1 I Red data
29 R0 I Red data(LSB)
30~31 GND P Power ground
32 G5 I Green data(MSB)
33~36 G4~G1 I Green data
37 G0 I Green data(LSB)
38 STHL I/O Horizontal start pulse input when R/L = L
39 REV P Control signal are inverted or not
40 GND I Power ground
41 DCLK I Sample clock
42 VCC P Power supply for digital circuit
43 STHR I/O Horizontal start pulse input when R/L = H
44 LD I Latches the polarity of outputs and switches the new data to outputs
45 B5 I Blue data (MSB)
46 B4 I Blue data
47~49 B3 ~B1 I Blue data
50 B0 I Blue data (LSB)
51 R/L I Right/ left selection
52 V1 I Gamma voltage level 1
53 V4 I Gamma voltage level 4
54 V7 I Gamma voltage level 7
55 V10 I Gamma voltage level 10
56 V12 I Gamma voltage level 12
57 V13 I Gamma voltage level 13
58 AVDD P Voltage for analog circuit
59 GND P Power ground
60 VCOM I Common voltage

I: input, O: output, P: Power



General Specifications

ItemDimensionUnit
Size 10.2 inch
Dot Matrix 800 × RGB × 480 (TFT) dots
Module dimension 235 × 145.8 × 6.1 mm
Active area 222 × 132.48 mm
Dot pitch 0.0925 × 0.2775 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Backlight Type LED, Normally White
Touch Panel Without touch panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +85 ℃
Storage Temperature TST -30 － +85 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VCC － 3.0 3.3 3.6 V
AVDD － 9.0 9.2 9.4 V
VGH － 15.3 16 16.7 V
VGL － -7.7 -7.0 -6.3 V
Input signal voltage VCOM － 3.65 3.85 4.05 V
V1~V7 － 0.4 AVDD － AVDD-0.1 V
V8~V14 － 0.1 － 0.6AVDD V


SKU: WF102-800480AD#0W0-FC
Brand: Winstar
Available: Yes
Be the first to review this product
Accessory Kit
Price Breaks
Quantity
1+
5+
10+
Price
€70.20
€63.20
€51.90

For quantities above 25 pcs pls send your enquiry to [email protected] or call +39 0332 1888005

€70.20 excl tax

DESCRIPTION

10.2” wide temperature TFT LCD display. Module dimension of 235 x 145.8 mm, AA size of 222 x 132.48 mm and resolution 800 RGB x 480 dots. Operating temperature from–30℃ to +85℃.


DRAWING




SPECIFICATIONS



Interface

Pin No.SymbolI/OFunction
1 POL I Polarity selection
2 STVD I/O Vertical start pulse input when U/D= H
3 OEV I Output enable
4 CKV I Vertical clock
5 STVU I/O Vertical start pulse input when U/D= L
6 GND P Power ground
7 EDGSL I Select rising edge or rising/falling edge
8 VCC P Power supply for digital circuit
9 V9 I Gamma voltage level 9
10 VGL P Gate OFF voltage
11 V2 I Gamma voltage level 2
12 VGH P Gate ON voltage
13 V6 I Gamma voltage level 6
14 U/D I Up/down selection
15 VCOM I Common voltage
16 GND P Power ground
17 AVDD P Power supply for analog circuit
18 V14 I Gamma voltage level 14
19 V11 I Gamma voltage level 11
20 V8 I Gamma voltage level 8
21 V5 I Gamma voltage level 5
22 V3 I Gamma voltage level 3
23 GND P Power ground
24 R5 I Red data(MSB)
25~28 R4~R1 I Red data
29 R0 I Red data(LSB)
30~31 GND P Power ground
32 G5 I Green data(MSB)
33~36 G4~G1 I Green data
37 G0 I Green data(LSB)
38 STHL I/O Horizontal start pulse input when R/L = L
39 REV P Control signal are inverted or not
40 GND I Power ground
41 DCLK I Sample clock
42 VCC P Power supply for digital circuit
43 STHR I/O Horizontal start pulse input when R/L = H
44 LD I Latches the polarity of outputs and switches the new data to outputs
45 B5 I Blue data (MSB)
46 B4 I Blue data
47~49 B3 ~B1 I Blue data
50 B0 I Blue data (LSB)
51 R/L I Right/ left selection
52 V1 I Gamma voltage level 1
53 V4 I Gamma voltage level 4
54 V7 I Gamma voltage level 7
55 V10 I Gamma voltage level 10
56 V12 I Gamma voltage level 12
57 V13 I Gamma voltage level 13
58 AVDD P Voltage for analog circuit
59 GND P Power ground
60 VCOM I Common voltage

I: input, O: output, P: Power



General Specifications

ItemDimensionUnit
Size 10.2 inch
Dot Matrix 800 × RGB × 480 (TFT) dots
Module dimension 235 × 145.8 × 6.1 mm
Active area 222 × 132.48 mm
Dot pitch 0.0925 × 0.2775 mm
LCD type TFT, Normally White, Transmissive
View Direction 12 o'clock
Gray Scale Inversion Direction 6 o'clock
Backlight Type LED, Normally White
Touch Panel Without touch panel
Surface Anti-Glare



Absolute Maximum Ratings

ItemSymbolMinTypMaxUnit
Operating Temperature TOP -30 － +85 ℃
Storage Temperature TST -30 － +85 ℃



Electrical Characteristics

ItemSymbolConditionMinTypMaxUnit
Supply Voltage VCC － 3.0 3.3 3.6 V
AVDD － 9.0 9.2 9.4 V
VGH － 15.3 16 16.7 V
VGL － -7.7 -7.0 -6.3 V
Input signal voltage VCOM － 3.65 3.85 4.05 V
V1~V7 － 0.4 AVDD － AVDD-0.1 V
V8~V14 － 0.1 － 0.6AVDD V


Products specifications
Brand Winstar
Size 10.2"
Resolution 800x480
Active Area (mm) 222.00x132.48
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel No touch
O. Temperature (°C) -30~85
Display Connection FPC for ZIF Connector
Pin Nr. 30+30
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
Download
Products specifications
Brand Winstar
Size 10.2"
Resolution 800x480
Active Area (mm) 222.00x132.48
Color Full Color
Display Interface RGB
Display IC No
View Angle TN
Frame No
Touch Panel No touch
O. Temperature (°C) -30~85
Display Connection FPC for ZIF Connector
Pin Nr. 30+30
Pin Pitch 0.5mm
Preferred - Not Preferred Not Preferred
